Add an Athena Source Datastore
A source datastore is a storage location Qualytics connects to so it can profile, scan, and monitor data. Adding Athena as a source lets Qualytics query your AWS data lake through the Athena JDBC driver and run quality operations on the tables it discovers.
Before you start, review the Athena Permissions and the available Authentication methods.
Warning
Qualytics does not support Athena as an enrichment datastore. After you add Athena as a source, link a separate enrichment datastore (BigQuery, PostgreSQL, etc.) to store anomalies and metadata: either during creation via Link Enrichment on Datastore Creation, or afterwards via Link Enrichment Datastore.
Field reference
The Add Datastore page shows the sections below when Athena is selected. When reusing an existing connection, the Connection Properties, Authentication, and Secrets Management sections come already filled in and read-only: Qualytics has already validated those credentials, so you fill in only the Datastores Extraction and the Datastore Properties. To change a saved connection's credentials, edit the connection through the Manage Connections page; edits there apply to every datastore that reuses the connection.

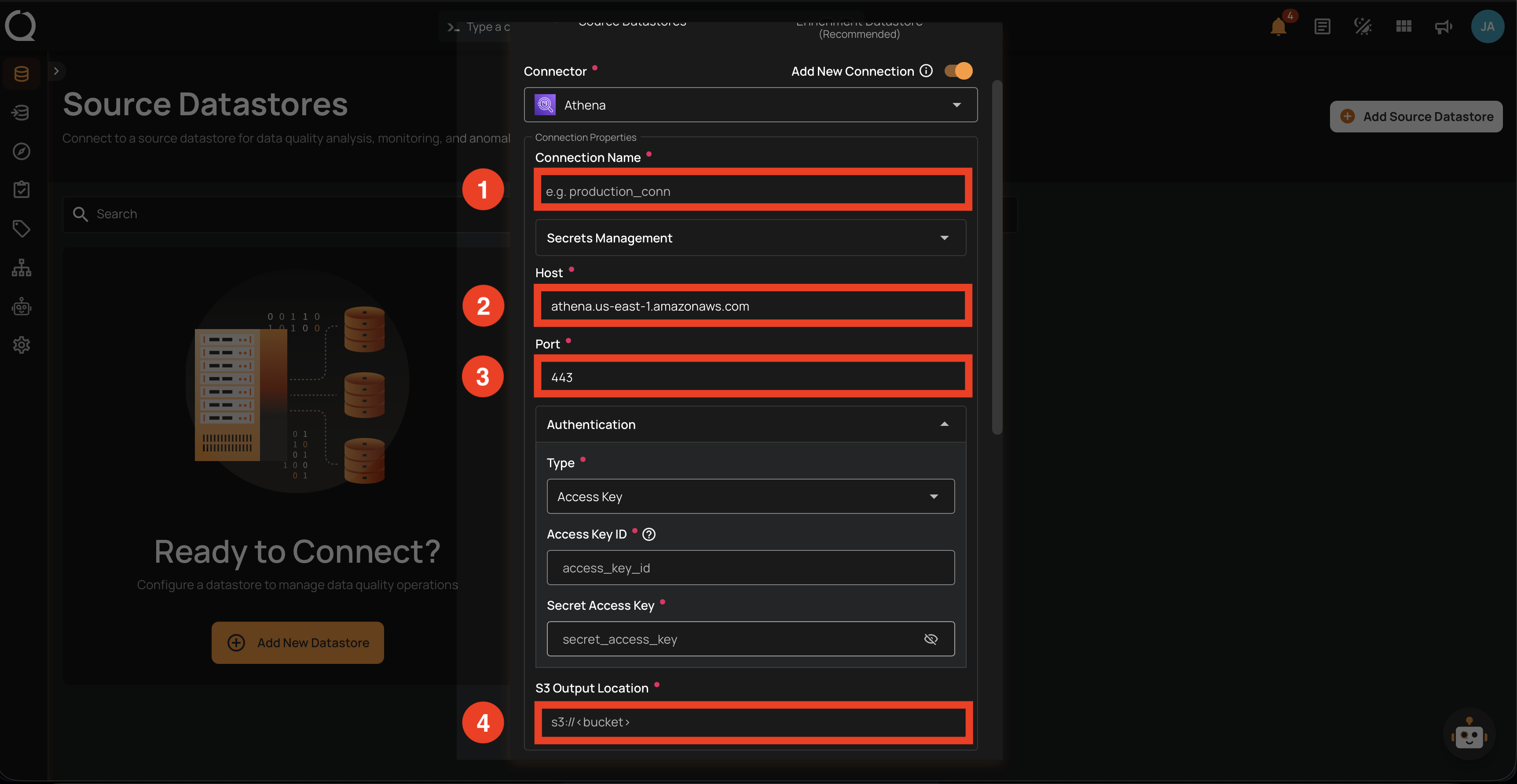

Connection Properties
These fields define the Athena endpoint and where Athena writes query results. They belong to the connection: when reusing an existing connection, they come already filled in and read-only.
| FIELD | REQUIRED | TYPE | DESCRIPTION |
|---|---|---|---|
| Connection Name | Text | A label for the saved connection (e.g., acme_athena_warehouse), so other datastores can reuse it later. |
|
| Host | Text | The canonical Athena endpoint for your region. Comes already filled in with athena.us-east-1.amazonaws.com; change the region part if needed. VPC endpoint URLs and private DNS aliases are not supported. |
|
| Port | Number | The Athena HTTPS port. Accepts numbers only. Defaults to 443. |
|
| S3 Output Location | Text | The S3 path where Athena writes query results (e.g., s3://acme-athena-results/query-output/). The IAM identity used by Qualytics needs read and write access to this bucket. Equivalent to parameters.output in the API. |
Tip
For the IAM permissions Qualytics needs on Athena, Glue, and the S3 query-results bucket, see Athena Permissions.

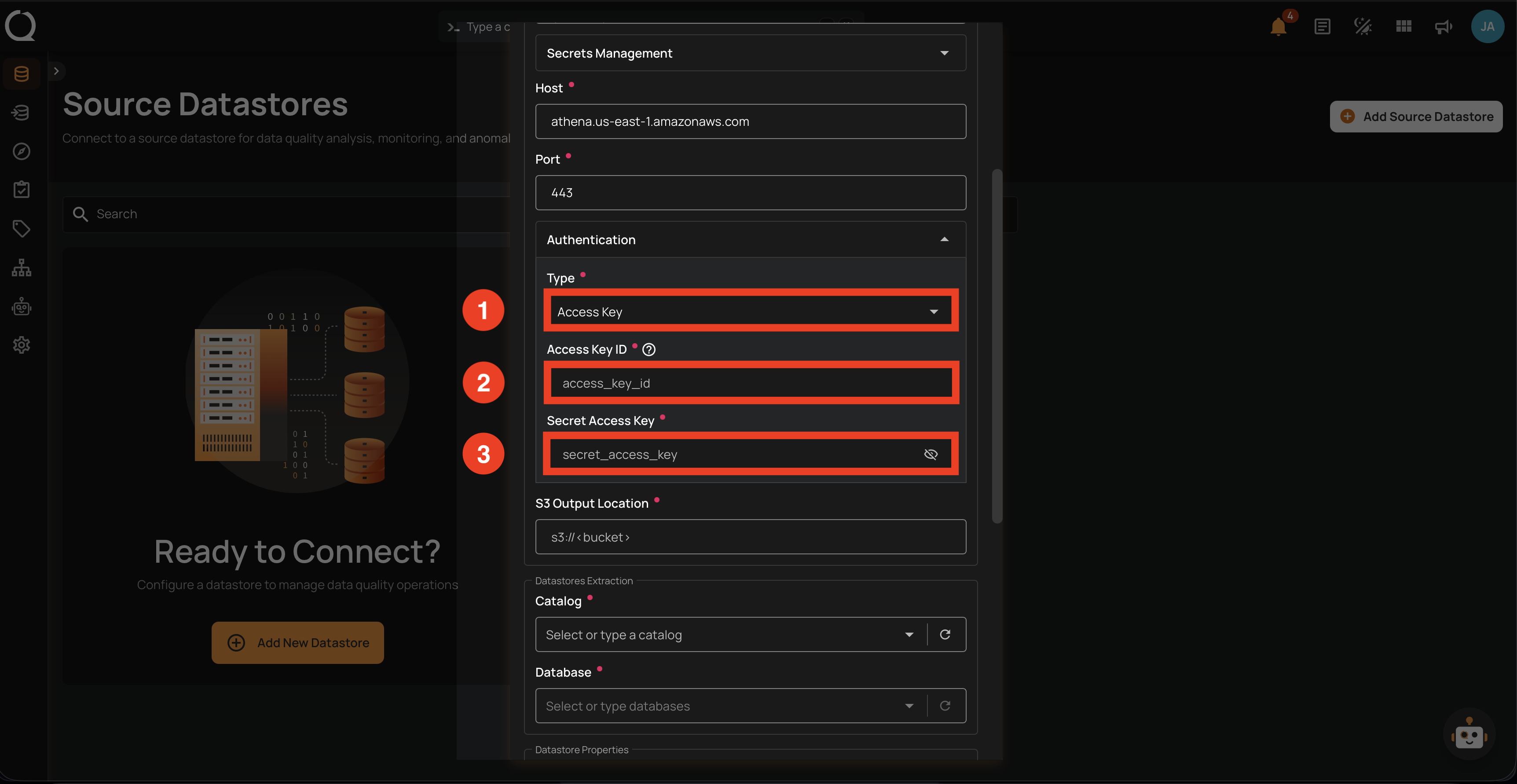

Authentication
Choose how Qualytics authenticates to AWS. Setting Type changes the credential fields shown below it. These fields also belong to the connection: already filled in and read-only when reusing one.
| FIELD | REQUIRED | TYPE | DESCRIPTION |
|---|---|---|---|
| Type | Option | Authentication mode. Comes set to Access Key; switch to IAM Role to authenticate with an assumed role instead. | |
| Access Key ID | Text | The AWS Access Key ID for an IAM user with Athena, Glue, and S3 permissions. Shown when Type is Access Key. | |
| Secret Access Key | Text | The matching Secret Access Key. Shown when Type is Access Key. |
IAM Role variant
When you set Type to IAM Role, the Access Key ID and Secret Access Key fields are replaced by:
- Role ARN (required): the IAM role ARN Qualytics will assume via AWS STS.
- External ID (optional): include only if your role's trust policy requires one.
See Athena Authentication for the assume-role flow walkthrough.
AWS-only: the IAM Role option in Type is shown only on AWS and local Qualytics deployments. On Azure and GCP deployments, only Access Key authentication is available.

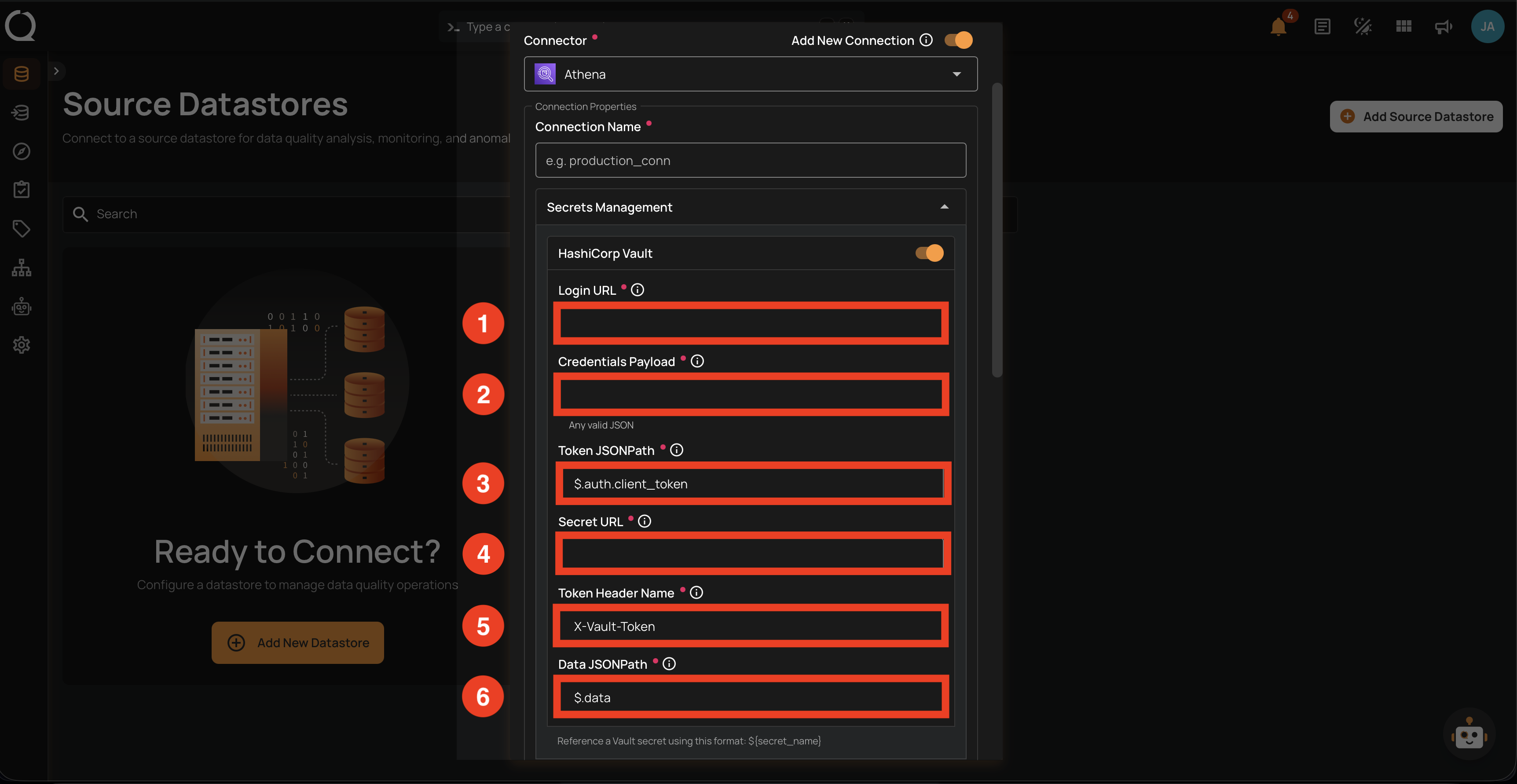

Secrets Management
This group is optional: use it only if you want Qualytics to pull credentials from a secrets manager instead of typing them into the form. Turn on HashiCorp Vault to show the fields below. Despite the label, any secrets manager that exposes a compatible REST API works, not only HashiCorp Vault; see Secrets Management. It also belongs to the connection: read-only when reusing an existing connection.
| FIELD | REQUIRED | TYPE | DESCRIPTION |
|---|---|---|---|
| Login URL | Text | The Vault endpoint Qualytics uses to authenticate (e.g., https://vault.example.com/v1/auth/approle/login). |
|
| Credentials Payload | Text | A JSON body containing the credentials Vault expects (e.g., {"role_id":"...","secret_id":"..."}). |
|
| Token JSONPath | Text | The JSONPath that extracts the client token from Vault's response. Defaults to $.auth.client_token. |
|
| Secret URL | Text | The Vault path where the secret is stored (e.g., https://vault.example.com/v1/secret/data/athena). |
|
| Token Header Name | Text | The HTTP header name used to send the token. Defaults to X-Vault-Token. |
|
| Data JSONPath | Text | The JSONPath that extracts the secret payload from Vault's response. Defaults to $.data. |
Note
Once the secrets manager is configured, reference any secret value in the Connection Properties or Authentication fields using ${key} (e.g., ${secret_access_key}). Qualytics resolves the secret at the moment the connection is opened, so changed keys take effect on the next connection.
Datastores Extraction
Pick the catalog and database(s) Qualytics should read from. You fill these in on both flows.
| FIELD | REQUIRED | TYPE | DESCRIPTION |
|---|---|---|---|
| Catalog | Option | The Athena data catalog to read from. Defaults to AwsDataCatalog. Click the refresh icon to fetch the catalogs visible to the credentials. |
|
| Database | Option | One or more databases inside the selected catalog. Each database you pick becomes its own Qualytics datastore. Click the refresh icon to load the available databases. |
Datastore Properties
Common fields for every source datastore, shown below the Datastores Extraction section. You fill these in on both flows.
| FIELD | REQUIRED | TYPE | DESCRIPTION |
|---|---|---|---|
| Name Template | Text | Defines the naming pattern for each source datastore being created. Use {{schema}} as a placeholder that gets replaced with the actual database name (e.g., athena_{{schema}} becomes athena_data_lake_curated). Left empty, the datastore is named from the connection name and the database. |
|
| Group | Option | Organizes your datastores under a shared group in the navigation tree. Select an existing group or create a new one with the Add New Group toggle. | |
| Teams | Option | Select one or more teams to associate with this source datastore. | |
| Initiate Sync | Checkbox | Automatically sync the datastore to detect containers and fields after creation. |
Steps
There are two ways to set up the connection: reuse a connection you already saved (Existing Connection) or create a new one from scratch (New Connection). The tabs below walk through each option; pick the one you want to follow. Each field is described in the Field reference above.
Step 1: Navigate to the Source Datastores page.
Step 2: Click the Add Source Datastore button at the top-right corner.
Step 3: The Add Datastore page opens.
Step 4: Select New Connection next to the Search field.
Step 5: Select Athena from the connector grid. Use the search field to filter connectors by name.
Step 6: Fill in the Connection Properties: the Connection Name, Host, Port, and S3 Output Location.
Step 7: Choose the Authentication Type and fill in its credential fields.
Step 8: Optionally, expand Secrets Management to retrieve credentials from a secrets manager.

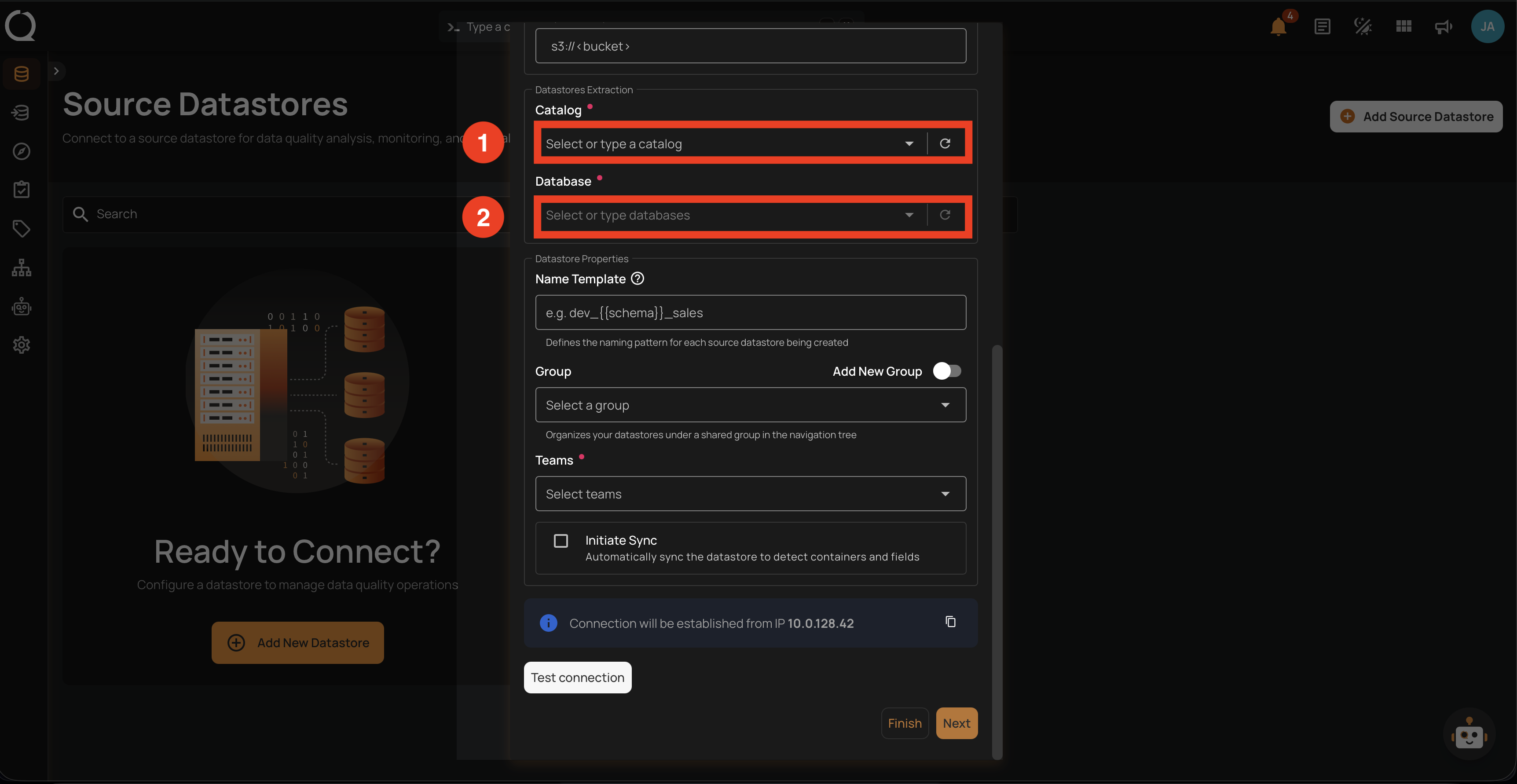

Step 9: Fill in the Datastores Extraction fields (Catalog and Database) and the Datastore Properties.
Step 10: Click Test connection. A success message confirms that the connection has been verified.
Info
The Finish and Next buttons stay disabled until the connection test passes on the current values. If you change a connection field after a successful test, test again. If the test fails, see Troubleshooting.
Step 11: Click Finish to create the datastore.
Tip
To link an enrichment datastore so Qualytics can store anomalies and metadata from the first operation, click Next instead of Finish. See Link Enrichment on Datastore Creation.
Step 12: A success dialog confirms that your datastore has been added. Click Go to your datastore to open its page.
Step 1: Navigate to the Source Datastores page.
Step 2: Click the Add Source Datastore button at the top-right corner.
Step 3: The Add Datastore page opens.
Step 4: Select Existing Connection next to the Search field.
Step 5: Select the saved Athena connection from the grid. Use the search field to filter connections by name. The Connection Properties, Authentication, and Secrets Management sections come already filled in and read-only.
Start a new connection from this one
To use the selected connection as a starting point for a brand-new connection instead, click the Duplicate as a new connection button on the selected connection. The form switches to New Connection mode with the connection's settings already filled in for you to adjust.

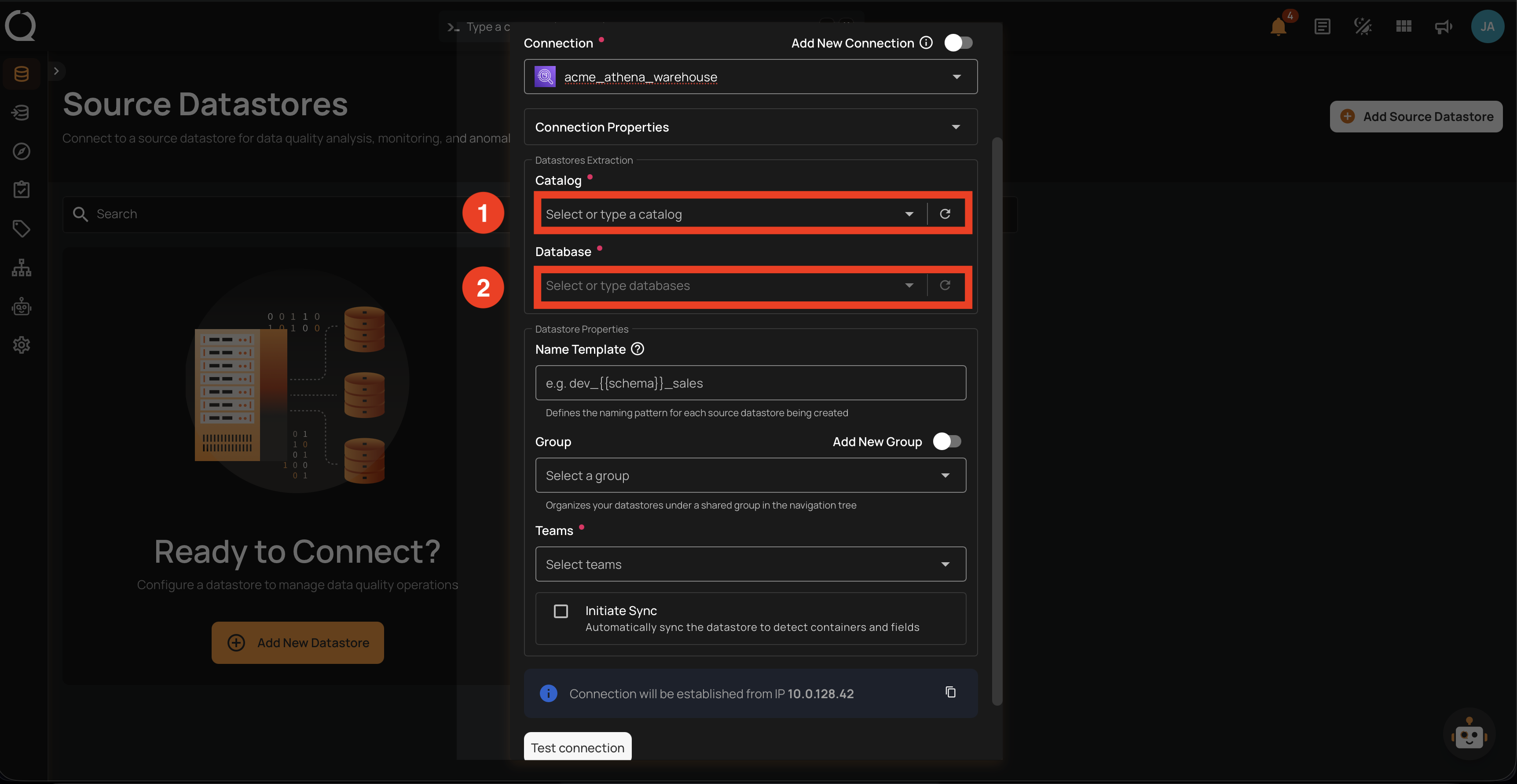

Step 6: Fill in the Datastores Extraction fields (Catalog and Database) and the Datastore Properties. These are the only fields left to fill in: Teams is the only required one, while Name Template, Group, and Initiate Sync are optional.
Step 7: Click Test connection. A success message confirms that the connection has been verified.
Info
The Finish and Next buttons stay disabled until the connection test passes on the current values. If the test fails, see Troubleshooting.
Step 8: Click Finish to create the datastore.
Tip
To link an enrichment datastore so Qualytics can store anomalies and metadata from the first operation, click Next instead of Finish. See Link Enrichment on Datastore Creation.
Step 9: A success dialog confirms that your datastore has been added. Click Go to your datastore to open its page.
