MariaDB

Adding and configuring a MariaDB connection within Qualytics empowers the platform to build a symbolic link with your schema to perform operations like data discovery, visualization, reporting, syncing, profiling, scanning, anomaly surveillance, and more.

This documentation provides a step-by-step guide on how to add MariaDB as both a source and enrichment datastore in Qualytics. It covers the entire process, from initial connection setup to testing and finalizing the configuration.

By following these instructions, enterprises can ensure their MariaDB environment is properly connected with Qualytics, unlocking the platform's potential to help you proactively manage your full data quality lifecycle.

Let’s get started 🚀

MariaDB Setup Guide

Qualytics connects to MariaDB through the MariaDB JDBC driver. It uses standard JDBC metadata APIs to discover databases, tables, columns, and primary keys. MariaDB uses the same permission model as MySQL — the database name you provide in the connection form is the scope for all operations.

Minimum MariaDB Permissions (Source Datastore)

Permission	Purpose
SELECT	Read data from all tables for profiling and scanning
SHOW VIEW	Read view definitions for metadata discovery
PROCESS	View active queries (used by the JDBC driver for connection metadata)

Additional Permissions for Enrichment Datastore

When using MariaDB as an enrichment datastore, the following additional permissions are required for Qualytics to write metadata tables (e.g., _qualytics_*):

Permission	Purpose
CREATE	Create enrichment tables (_qualytics_*)
ALTER	Modify enrichment table schemas during version migrations
INSERT	Write anomaly records, scan results, and check metrics
UPDATE	Update enrichment records during rescans
DELETE	Remove stale enrichment records
DROP	Remove enrichment tables if the datastore is unlinked

Example: Source Datastore User (Read-Only)

Replace <database_name> and <password> with your actual values.

-- Create a dedicated read-only user
CREATE USER ‘qualytics_read’@’%’ IDENTIFIED BY ‘<password>’;

-- Grant read access to all tables and views
GRANT SELECT, SHOW VIEW ON <database_name>.* TO ‘qualytics_read’@’%’;

-- Grant the global PROCESS privilege (required by the JDBC driver for connection metadata)
GRANT PROCESS ON *.* TO ‘qualytics_read’@’%’;

-- Apply the changes
FLUSH PRIVILEGES;

Example: Enrichment Datastore User (Read-Write)

-- Create a dedicated read-write user
CREATE USER ‘qualytics_readwrite’@’%’ IDENTIFIED BY ‘<password>’;

-- Grant full data manipulation and table management
GRANT SELECT, INSERT, UPDATE, DELETE, CREATE, ALTER, DROP, SHOW VIEW ON <database_name>.* TO ‘qualytics_readwrite’@’%’;

-- Grant the global PROCESS privilege (required by the JDBC driver for connection metadata)
GRANT PROCESS ON *.* TO ‘qualytics_readwrite’@’%’;

-- Apply the changes
FLUSH PRIVILEGES;

Note

Qualytics automatically filters out system databases (information_schema, mysql, performance_schema, sys) during catalog discovery. You do not need to restrict access to these databases manually.

Troubleshooting Common Errors

Error	Likely Cause	Fix
Access denied for user	Incorrect username, password, or the user does not have access from the connecting host	Verify credentials and ensure the user is created with ’%’ or the specific Qualytics host IP
Host is not allowed to connect	The MariaDB server rejects connections from the Qualytics host IP	Create the user with ’qualytics_read’@’<qualytics_ip>’ or use ’%’ for any host
SELECT command denied to user	The user lacks SELECT on the target database	Run GRANT SELECT ON <database_name>.* TO ‘<user>’@’%’
CREATE command denied to user	The enrichment user lacks CREATE on the database	Run GRANT CREATE ON <database_name>.* TO ‘<user>’@’%’
SSL connection is required	The MariaDB server enforces SSL but the connection is not configured for it	Enable SSL in the connection parameters or configure the MariaDB user to not require SSL

Detailed Troubleshooting Notes

Authentication Errors

The error Access denied for user indicates that the credentials are incorrect or the user does not have access from the connecting host.

Common causes:

• Incorrect password — the password does not match the one set for the user.
• Host restriction — the user was created with a specific host (e.g., 'user'@'localhost') but Qualytics connects from a different IP.
• User does not exist — the username was misspelled or was never created.

Note

MariaDB differentiates users by both username and host. 'qualytics'@'localhost' and 'qualytics'@'%' are treated as two separate users with potentially different passwords and permissions.

Permission Errors

The error SELECT command denied to user means the user authenticated successfully but lacks the necessary grants on the target database.

Common causes:

• Missing SELECT grant — the user does not have SELECT on the target database.
• Wrong database — the user has permissions on a different database than the one specified in the connection form.
• Grant not flushed — after running GRANT statements, FLUSH PRIVILEGES was not executed.

Connection Errors

The error Host is not allowed to connect means the MariaDB server rejects the connection from the Qualytics host IP.

Common causes:

• User host restriction — the user was created with 'user'@'localhost' instead of 'user'@'%'.
• Firewall or network — a firewall is blocking connections on port 3306.
• Bind address — MariaDB is configured to listen only on 127.0.0.1 (bind-address in my.cnf).

Tip

Start by confirming credentials are valid (authentication errors), then verify database permissions (permission errors), and finally check network connectivity (connection errors).

Add a Source Datastore

A source datastore is a storage location used to connect to and access data from external sources. MariaDB is an example of a source datastore, specifically a type of JDBC datastore that supports connectivity through the JDBC API. Configuring the JDBC datastore enables the Qualytics platform to access and perform operations on the data, thereby generating valuable insights.

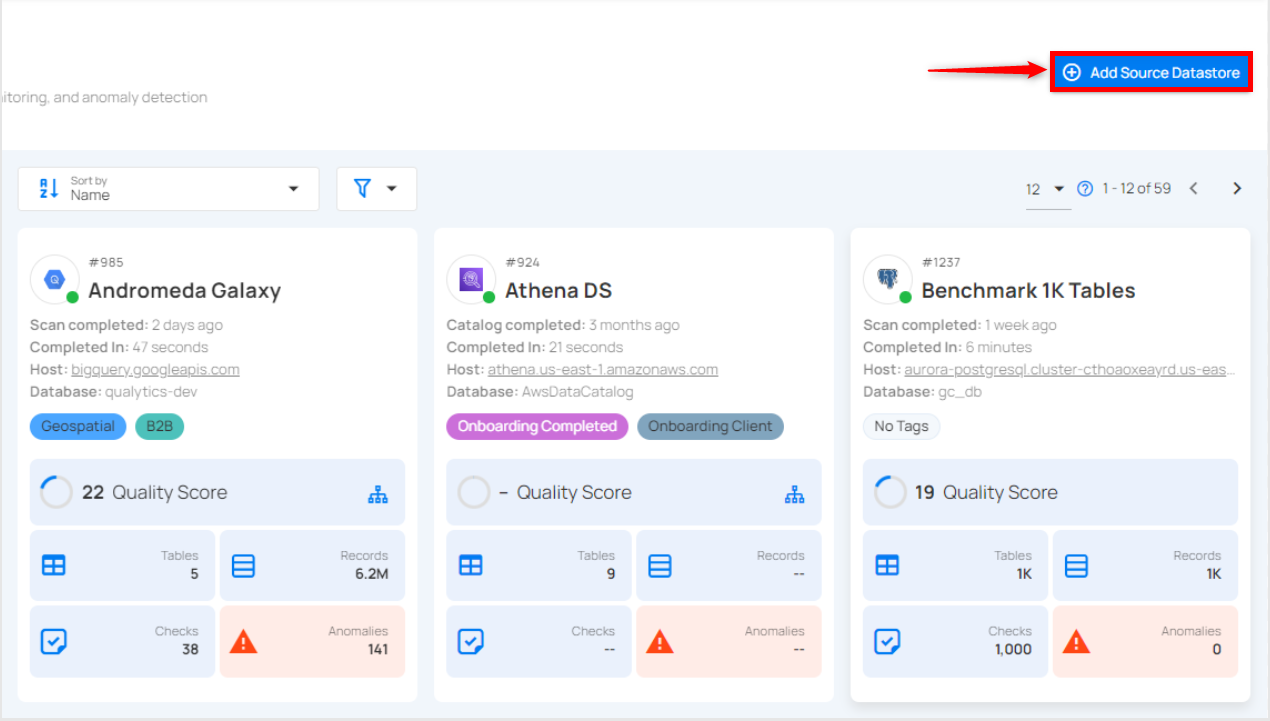

Step 1: Log in to your Qualytics account and click on the Add Source Datastore button located at the top-right corner of the interface.

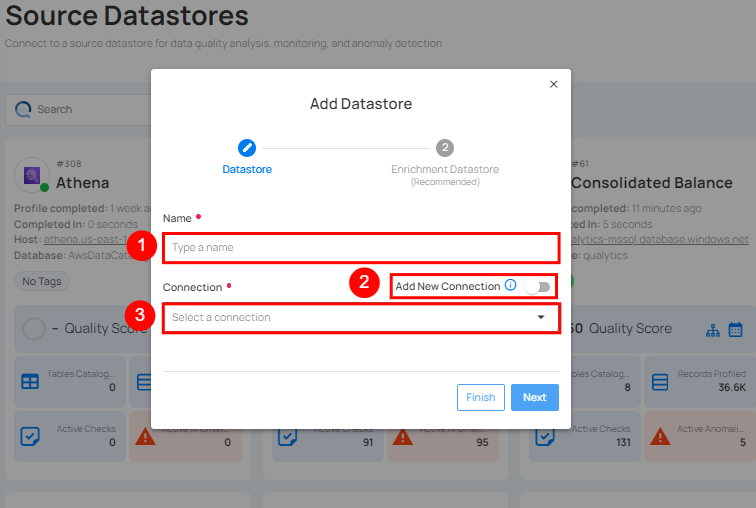

Step 2: A modal window - Add Datastore will appear, providing you with the options to connect a datastore.

REF.	FIELDS	ACTIONS
1.	Name (Required)	Specify the datastore name (e.g., this name will appear on the datastore cards)
2.	Toggle Button	Toggle ON to create a new source datastore from scratch, or toggle OFF to reuse credentials from an existing connection.
3.	Connector (Required)	Select MariaDB from the dropdown list.

Option I: Create a Source Datastore with a new Connection

If the toggle for Add New connection is turned on, then this will prompt you to add and configure the source datastore from scratch without using existing connection details.

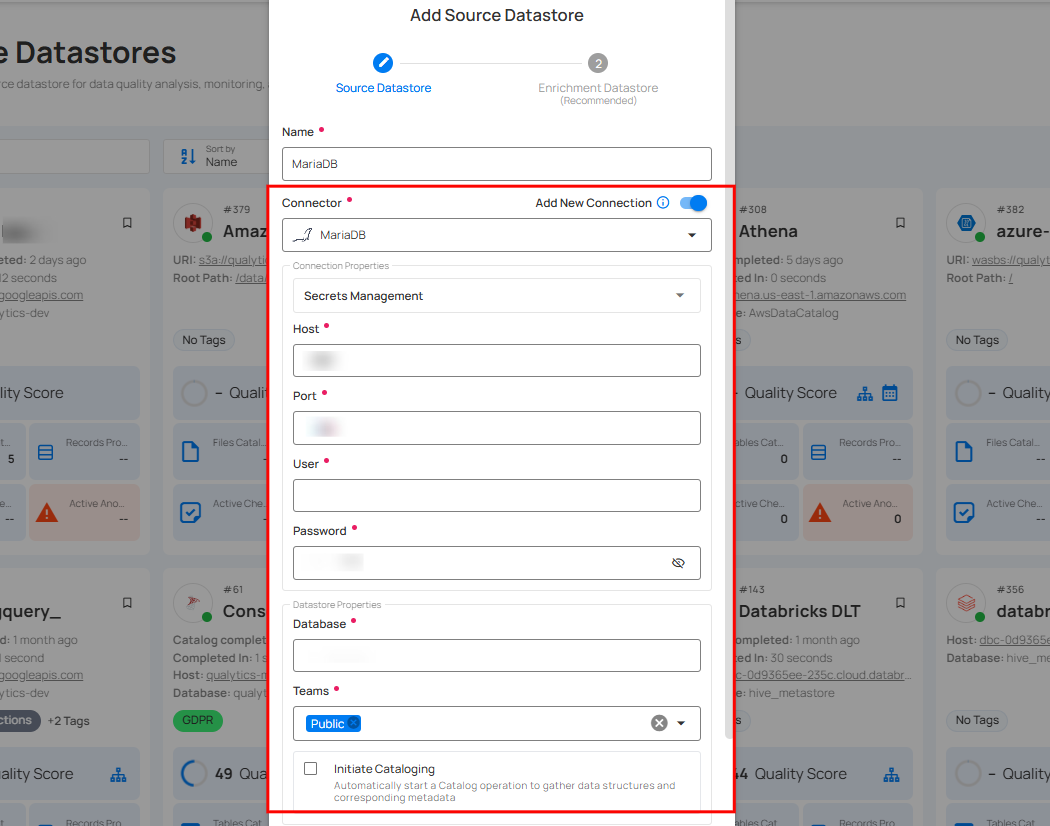

Step 1: Select the MariaDB connector from the dropdown list and add connection details such as Secrets Management, host, port, user, password, SSL connection, database, and schema.

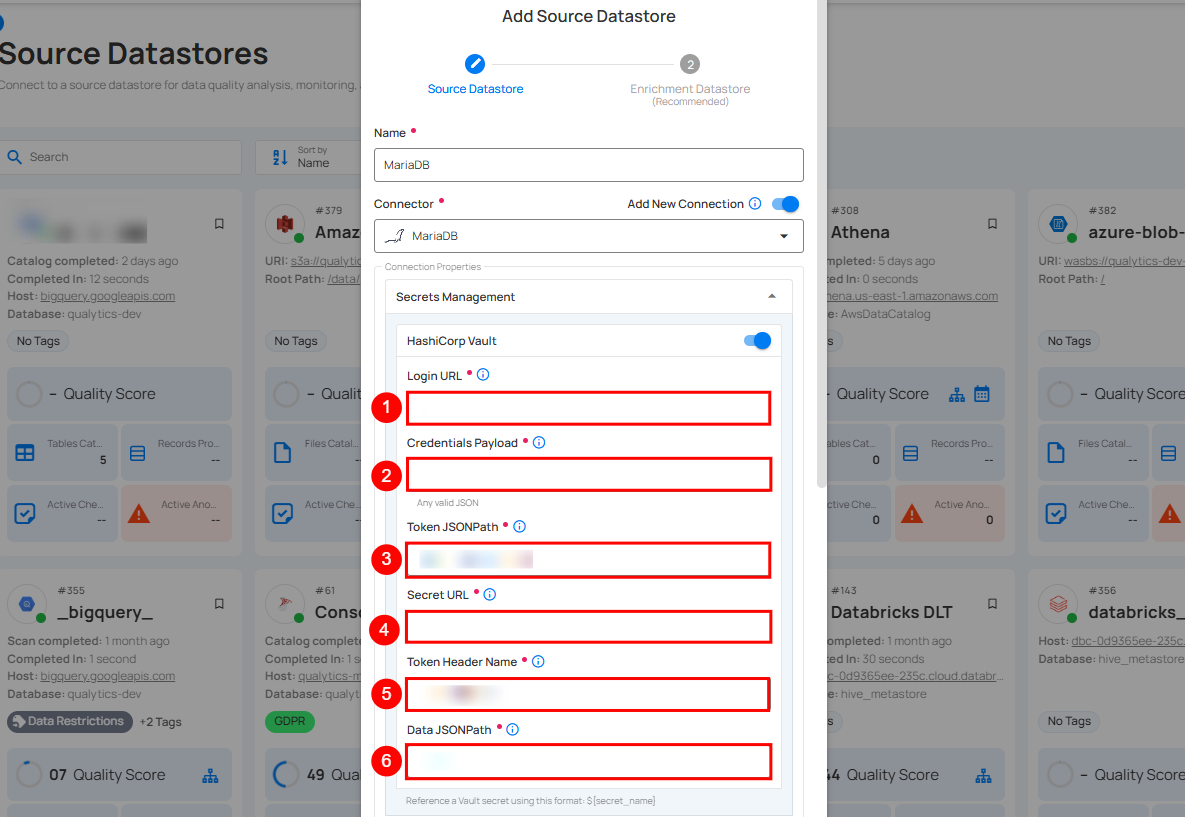

Secrets Management: This is an optional connection property that allows you to securely store and manage credentials by integrating with HashiCorp Vault and other secret management systems. Toggle it ON to enable Vault integration for managing secrets.

Note

After configuring HashiCorp Vault integration, you can use ${key} in any Connection property to reference a key from the configured Vault secret. Each time the Connection is initiated, the corresponding secret value will be retrieved dynamically.

REF	FIELDS	ACTIONS
1.	Login URL	Enter the URL used to authenticate with HashiCorp Vault.
2.	Credentials Payload	Input a valid JSON containing credentials for Vault authentication.
3.	Token JSONPath	Specify the JSONPath to retrieve the client authentication token from the response (e.g., $.auth.client_token).
4.	Secret URL	Enter the URL where the secret is stored in Vault.
5.	Token Header Name	Set the header name used for the authentication token (e.g., X-Vault-Token).
6.	Data JSONPath	Specify the JSONPath to retrieve the secret data (e.g., $.data).

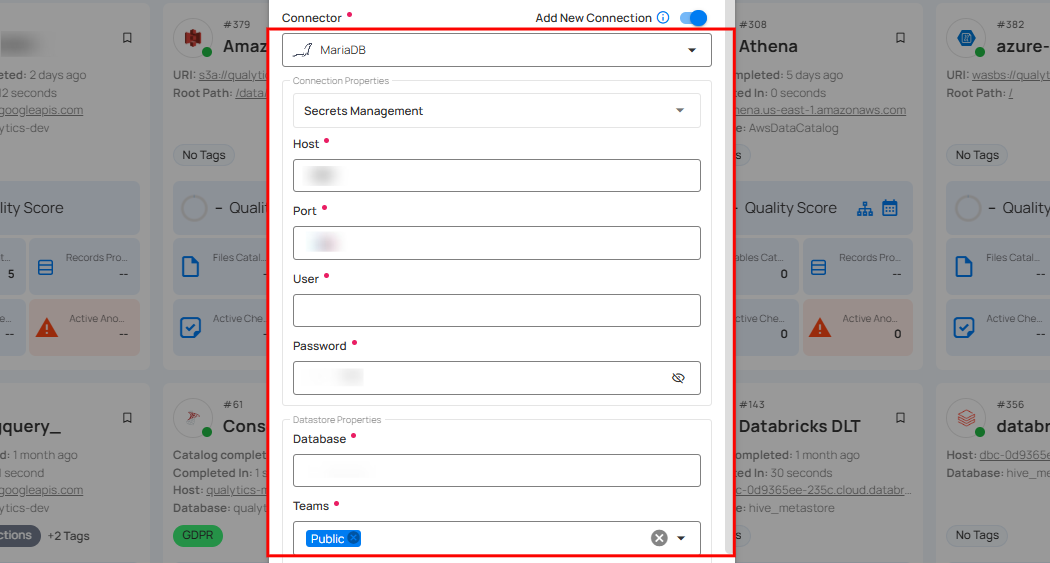

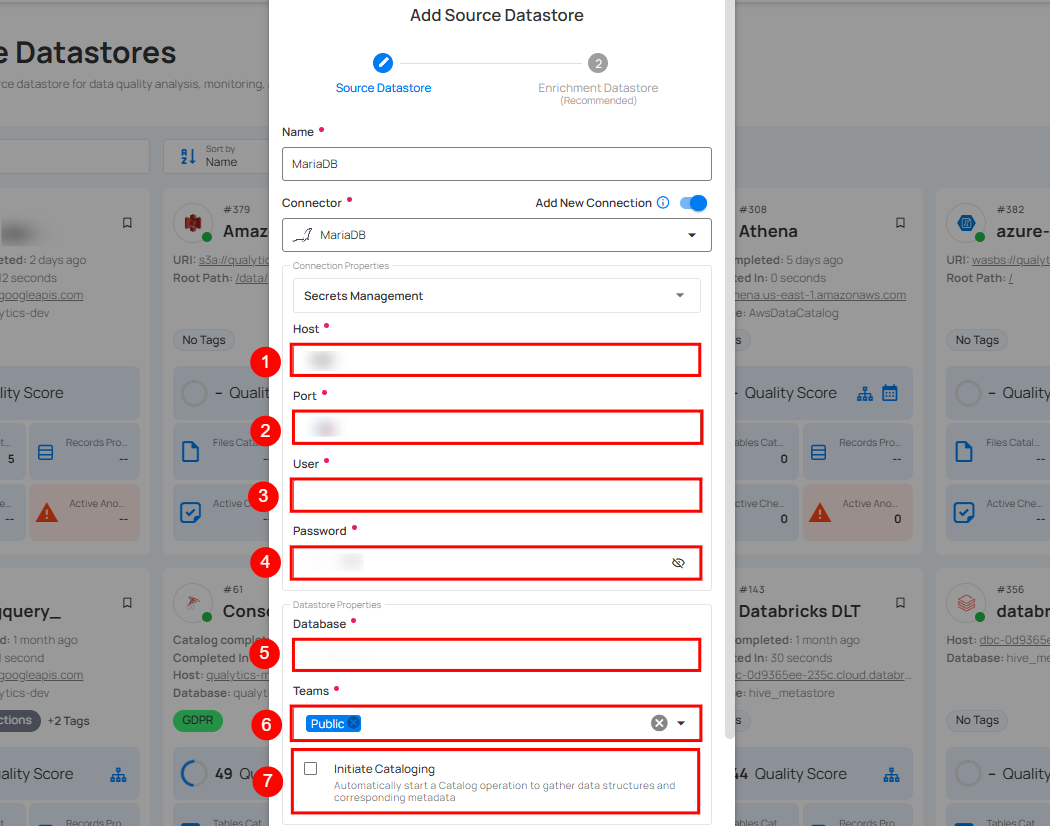

Step 2: The configuration form will expand, requesting credential details before establishing the connection.

REF.	FIELDS	ACTIONS
1.	Host	Get Hostname from your MariaDB account and add it to this field.
2.	Port	Specify the Port number.
3.	User	Enter the User ID to connect.
4.	Password	Enter the password to connect to the database.
5.	Database	Specify the database name.
6.	Teams	Select one or more teams from the dropdown to associate with this source datastore.
7.	Initiate Sync	Check the checkbox to automatically perform a sync operation on the configured source to detect new, changed, or removed containers and fields.

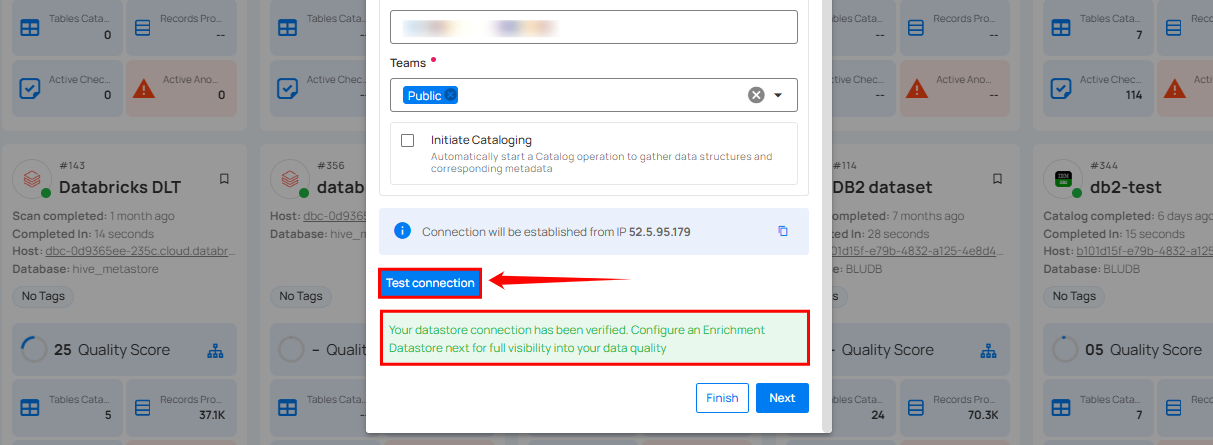

Step 3: After adding the source datastore details, click on the Test Connection button to check and verify its connection.

If the credentials and provided details are verified, a success message will be displayed indicating that the connection has been verified.

Option II: Use an Existing Connection

If the toggle for Add New connection is turned off, then this will prompt you to configure the source datastore using the existing connection details.

Step 1: Select a connection to reuse existing credentials.

Note

If you are using existing credentials, you can only edit the details such as Database, Schema, Teams, and Initiate Sync.

Step 2: Click on the Test Connection button to verify the existing connection details. If connection details are verified, a success message will be displayed.

Note

Clicking on the Finish button will create the source datastore and bypass the enrichment datastore configuration step.

Tip

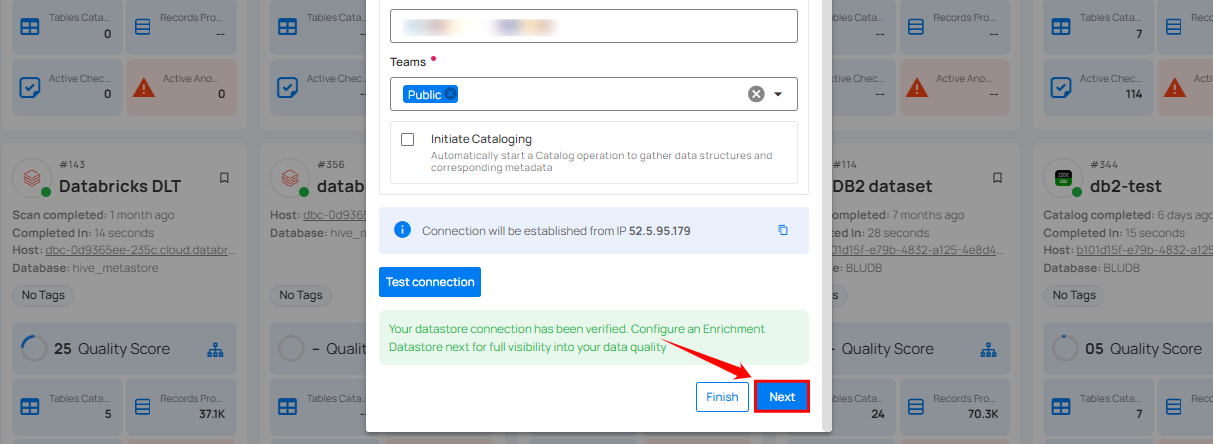

It is recommended to click on the Next button, which will take you to the enrichment datastore configuration page.

Add Enrichment Datastore

Once you have successfully tested and verified your source datastore connection, you have the option to add the enrichment datastore (recommended). This datastore is used to store the analyzed results, including any anomalies and additional metadata in tables. This setup provides full visibility into your data quality, helping you manage and improve it effectively.

Step 1: Whether you have added a source datastore by creating a new datastore connection or using an existing connection, click on the Next button to start adding the Enrichment Datastore.

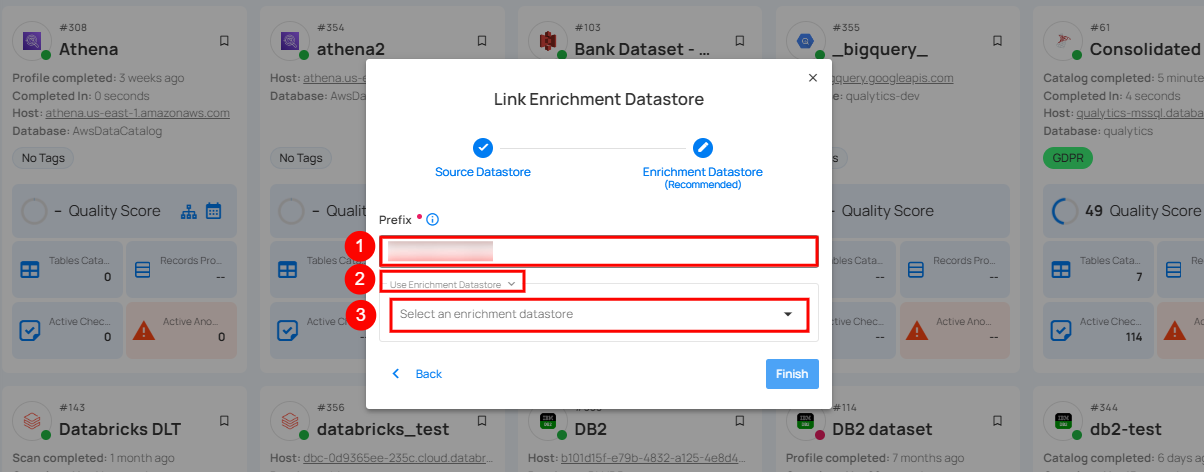

Step 2: A modal window - Link Enrichment Datastore will appear, providing you with the options to configure an enrichment datastore.

REF.	FIELDS	ACTIONS
1.	Prefix (Required)	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2.	Caret Down Button	Click the caret down to select either Use Enrichment Datastore or Add Enrichment Datastore.
3.	Enrichment Datastore	Select an enrichment datastore from the dropdown list.

Option I: Create an Enrichment Datastore with a new Connection

If the toggle Add new connection is turned on, then this will prompt you to add and configure the enrichment datastore from scratch without using an existing enrichment datastore and its connection details.

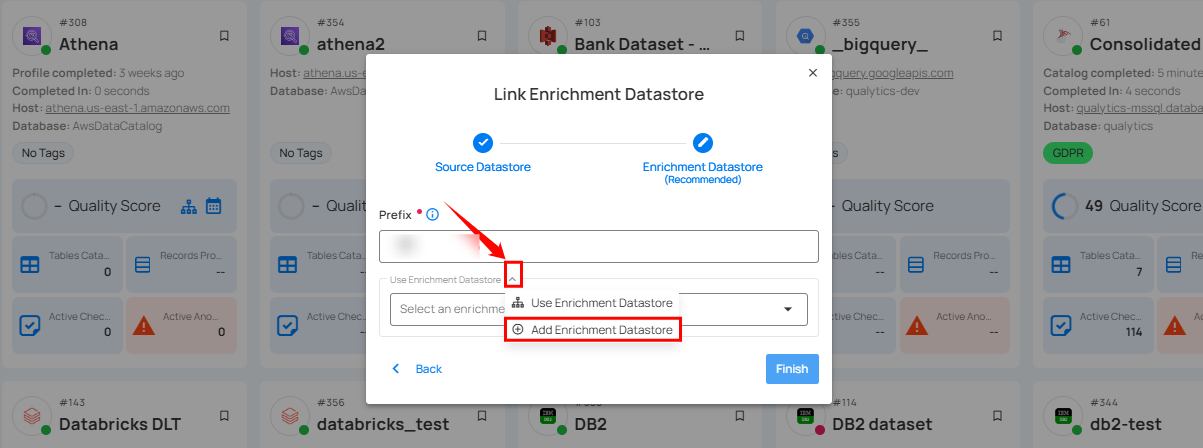

Step 1: Click on the caret button and select Add Enrichment Datastore.

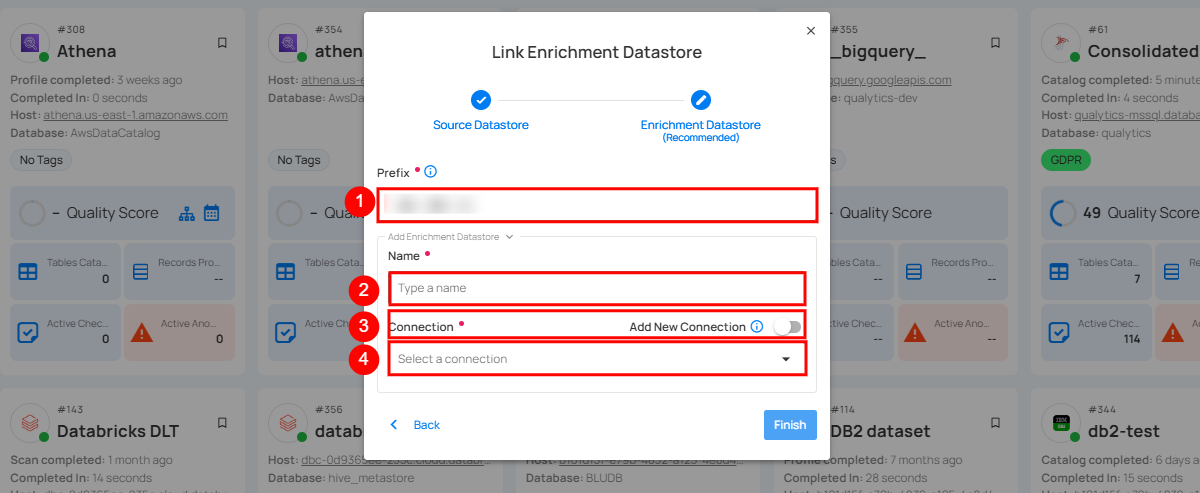

A modal window Link Enrichment Datastore will appear. Enter the following details to create an enrichment datastore with a new connection.

REF.	FIELDS	ACTIONS
1.	Prefix	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2.	Name	Enter a name for the enrichment datastore.
3.	Toggle Button For Add New Connection	Toggle ON to create a new enrichment datastore from scratch or toggle OFF to reuse credentials from an existing connection.
4.	Connector	Select a datastore connector from the dropdown list.

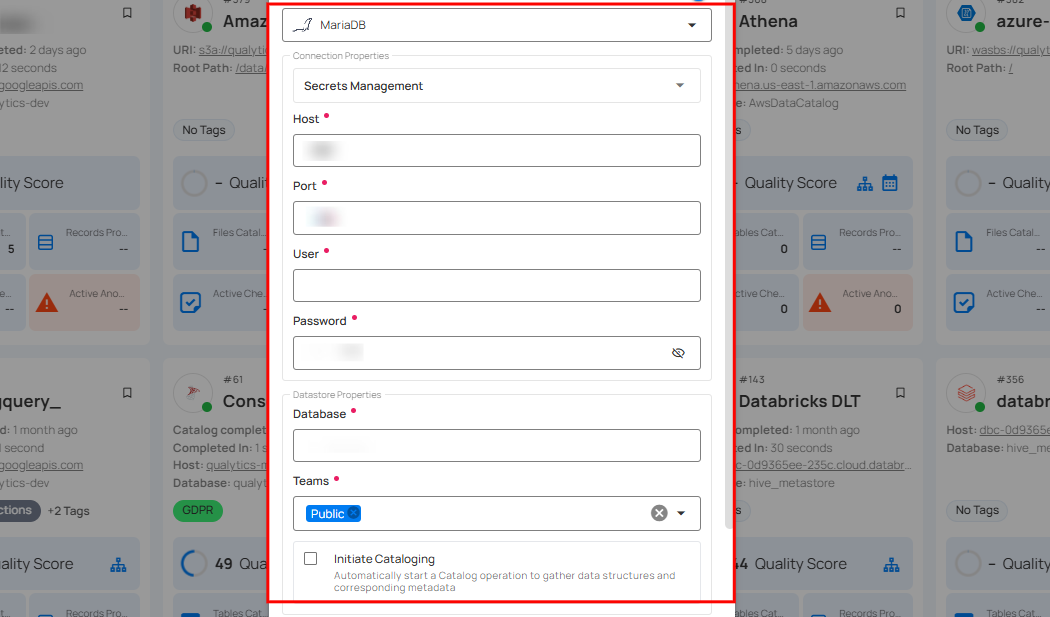

Step 2: Add connection details for your selected enrichment datastore connector.

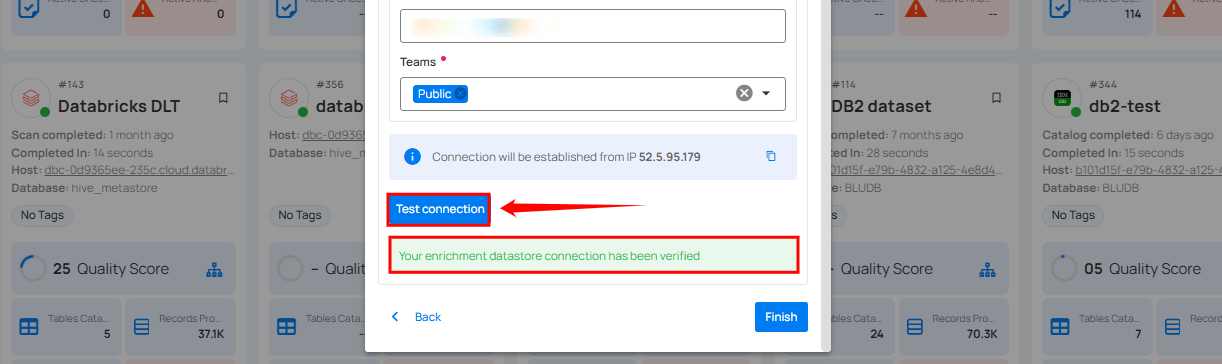

Step 3: Click on the Test Connection button to verify the selected enrichment datastore connection. If the connection is verified, a flash message will indicate that the connection with the datastore has been successfully verified.

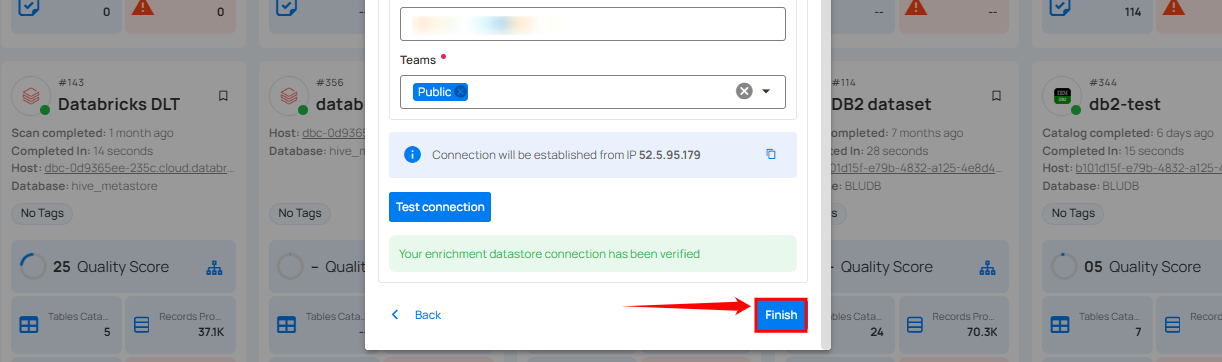

Step 4: Click on the Finish button to complete the configuration process.

When the configuration process is finished, a modal will display a success message indicating that your datastore has been successfully added.

Step 5: Close the success dialog and the page will automatically redirect you to the Source Datastore Details page where you can perform data operations on your configured source datastore.

Option II: Use an Existing Connection

If the Use enrichment datastore option is selected from the caret button, you will be prompted to configure the datastore using existing connection details.

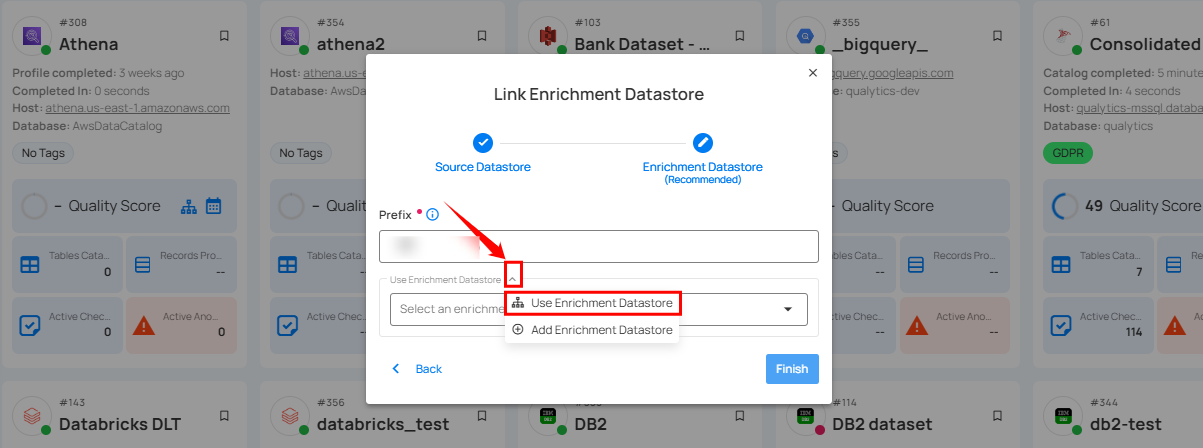

Step 1: Click on the caret button and select Use Enrichment Datastore.

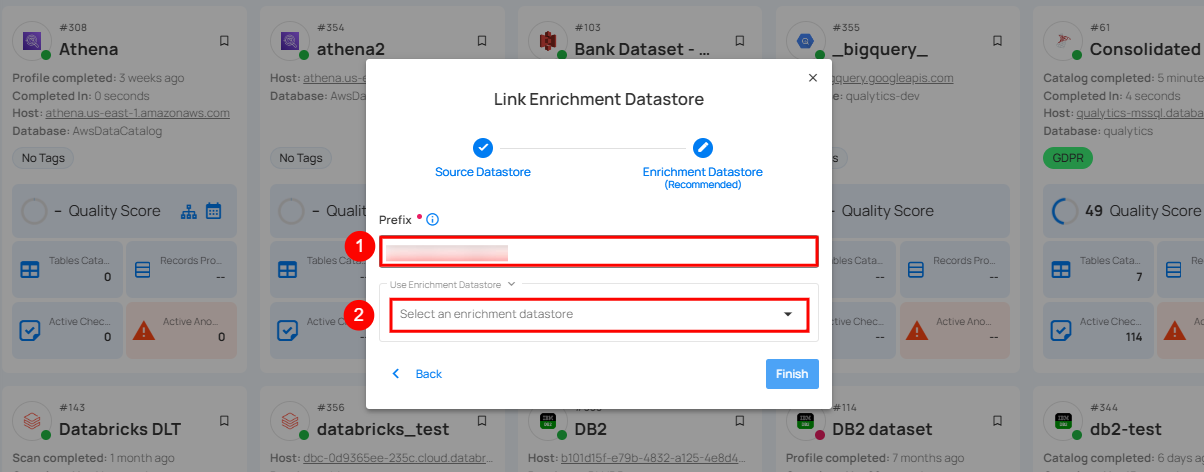

Step 2: A modal window Link Enrichment Datastore will appear. Add a prefix name and select an existing enrichment datastore from the dropdown list.

REF.	FIELDS	ACTIONS
1.	Prefix	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2.	Enrichment Datastore	Select an enrichment datastore from the dropdown list.

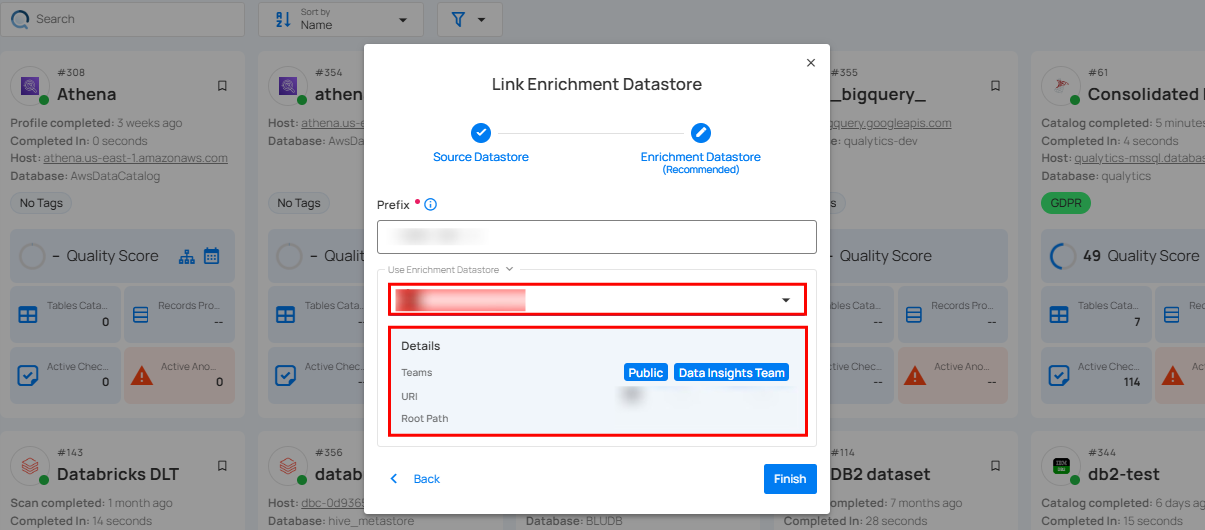

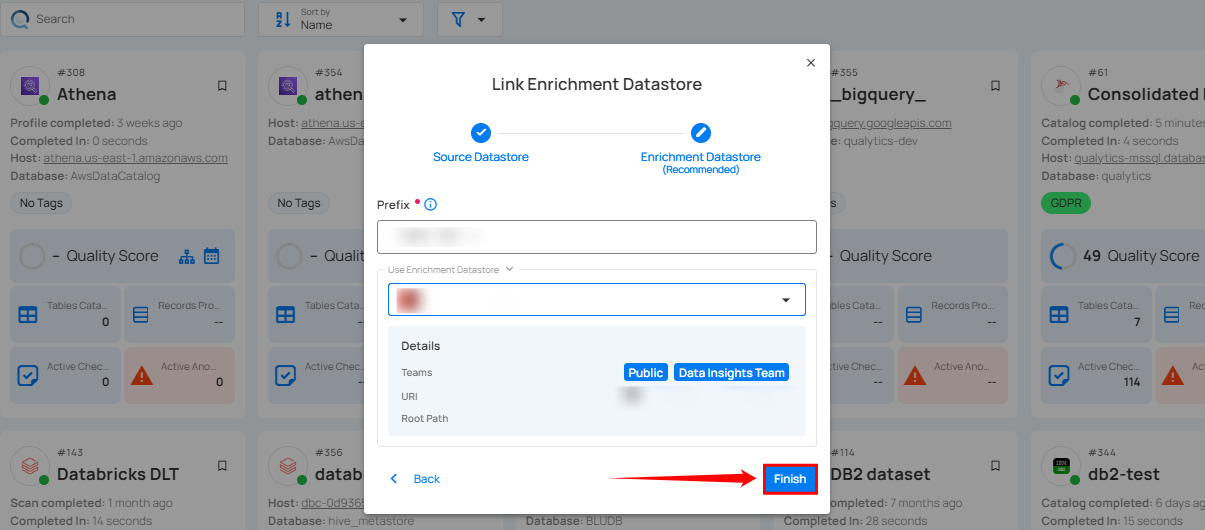

Step 3: After selecting an existing enrichment datastore connection, you will view the following details related to the selected enrichment:

• Teams: The team associated with managing the enrichment datastore is based on the role of public or private. For example, marked as Public means that this datastore is accessible to all the users.
• Host: This is the server address where the MariaDB instance is hosted. It is the endpoint used to connect to the MariaDB environment.
• Database: Refers to the specific database within the MariaDB environment where the data is stored.
• Schema: The schema used in the enrichment datastore. The schema is a logical grouping of database objects (tables, views, etc.). Each schema belongs to a single database.

Step 4: Click on the Finish button to complete the configuration process for the existing enrichment datastore.

When the configuration process is finished, a modal window will display and a success flash message stating that your data has been successfully added.

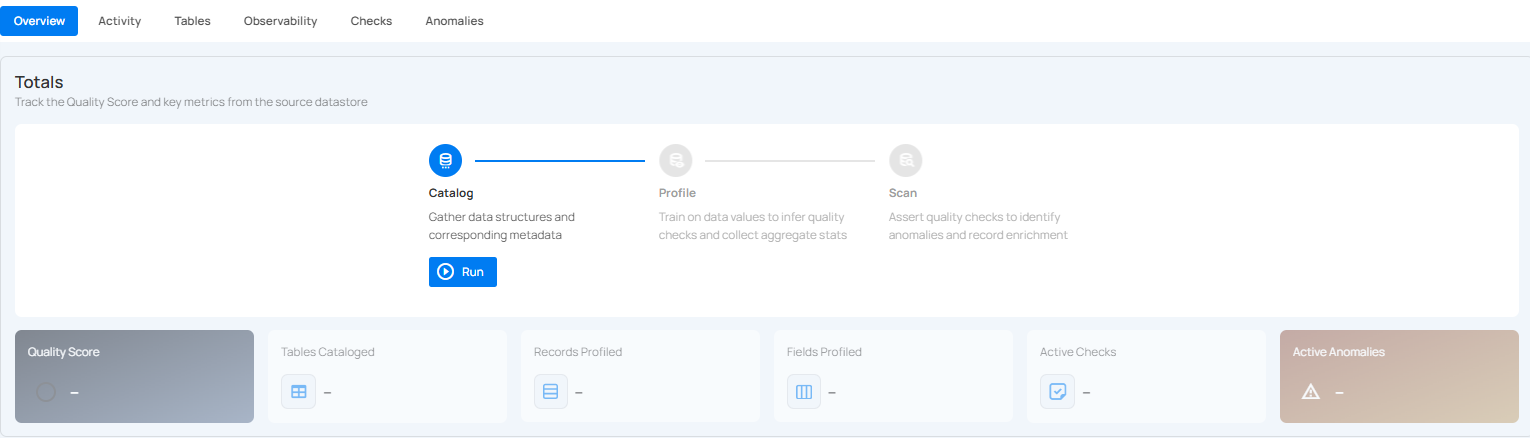

Close the success message and you will be automatically redirected to the Source Datastore Details page where you can perform data operations on your configured source datastore.

API Payload Examples

Creating a Datastore

This section provides a sample payload for creating a datastore. Replace the placeholder values with actual data relevant to your setup.

Endpoint (Post)

/api/datastores (post)

Creating a datastore with a new connectionCreating a datastore with an existing connectionCreate a Source Datastore using the CLI

    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "mariadb_database",
        "enrich_only": false,
        "trigger_catalog": true,
        "connection": {
            "name": "your_connection_name",
            "type": "mariadb",
            "host": "mariadb_host",
            "port": "mariadb_port",
            "username": "mariadb_username",
            "password": "mariadb_password"
        }
    }

    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "mariadb_database",
        "enrich_only": false,
        "trigger_catalog": true,
        "connection_id": connection-id
    }

# Step 1: Create a Connection
qualytics connections create \
    --type mariadb \
    --name "your_connection_name" \
    --host ${DB_HOST} \
    --port 3306 \
    --username ${DB_USER} \
    --password ${DB_PASSWORD}

# Step 2: Create a Source Datastore
qualytics datastores create \
    --name "your_datastore_name" \
    --connection-name "your_connection_name" \
    --database your_database \
    --schema your_database

Creating an Enrichment Datastore

Endpoint (Post)

/api/datastores (post)

This section provides a sample payload for creating an enrichment datastore. Replace the placeholder values with actual data relevant to your setup.

Creating an enrichment datastore with a new connectionCreating an enrichment datastore with an existing connectionCreate an Enrichment Datastore using the CLI

    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "mariadb_database",
        "enrich_only": true,
        "connection": {
            "name": "your_connection_name",
            "type": "mariadb",
            "host": "mariadb_host",
            "port": "mariadb_port",
            "username": "mariadb_username",
            "password": "mariadb_password"
        }
    }

    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "mariadb_database",
        "enrich_only": true,
        "connection_id": connection-id
    }

# Step 1: Create a Connection
qualytics connections create \
    --type mariadb \
    --name "your_connection_name" \
    --host ${DB_HOST} \
    --port 3306 \
    --username ${DB_USER} \
    --password ${DB_PASSWORD}

# Step 2: Create an Enrichment Datastore
qualytics datastores create \
    --name "your_datastore_name" \
    --connection-name "your_connection_name" \
    --database your_enrichment_database \
    --schema your_enrichment_database \
    --enrichment-only

Linking Datastore to an Enrichment Datastore through API

Endpoint (Patch)

/api/datastores/{datastore-id}/enrichment/{enrichment-id} (patch)
