Dremio
Adding and configuring a Dremio connection within Qualytics empowers the platform to build a symbolic link with your schema to perform operations like data discovery, visualization, reporting, syncing, profiling, scanning, anomaly surveillance, and more.
This documentation provides a step-by-step guide on adding Dremio as a source datastore in Qualytics. It covers the entire process, from initial connection setup to testing and finalizing the configuration.
By following these instructions, enterprises can ensure their Dremio environment is properly connected with Qualytics, unlocking the platformโs potential to help you proactively manage your full data quality lifecycle.
Letโs get started ๐
Dremio Setup Guide
Qualytics connects to Dremio through the Dremio JDBC driver (Arrow Flight SQL, default port 32010). It uses standard SQL queries for data profiling and scanning. Dremio permissions are managed through its own privilege model, which controls access to sources, spaces, and datasets.
Minimum Dremio Permissions (Source Datastore)
| Permission | Purpose |
|---|---|
SELECT on target datasets |
Read data from tables/views for profiling and scanning |
VIEW on the source |
Browse available schemas and datasets |
| Access to the Dremio project (Cloud only) | Scope queries to the correct project in Dremio Cloud |
Note
Qualytics does not support Dremio as an enrichment datastore. You can point to a different enrichment datastore instead.
Authentication Methods
Dremio supports two authentication methods:
| Method | Configuration |
|---|---|
| Basic (Username & Password) | Use the Dremio username and password directly |
| Personal Access Token (PAT) | Generate a PAT from Account Settings > Personal Access Tokens in Dremio and use it as the authentication credential |
Example: Granting Permissions in Dremio
In the Dremio UI, navigate to the target source or dataset and grant SELECT access to the Qualytics user:
GRANT SELECT ON TABLE <source>.<schema>.<dataset> TO USER qualytics_read;
-- Or grant access to all datasets in a schema:
GRANT SELECT ON SCHEMA <source>.<schema> TO USER qualytics_read;
Tip
If using Dremio Cloud, ensure the Project ID is included in the connection form. You can find the Project ID in the Dremio Cloud project settings.
Troubleshooting Common Errors
| Error | Likely Cause | Fix |
|---|---|---|
Authentication failed |
Incorrect username/password or invalid PAT | Verify credentials or generate a new PAT from Dremio account settings |
Source not found |
The schema (source) name in the connection form does not match a configured Dremio source | Verify available sources in the Dremio UI or with SHOW SCHEMAS |
Permission denied on dataset |
The user lacks SELECT on the target dataset |
Grant SELECT permission on the dataset in Dremio's privilege settings |
Connection refused |
The Dremio coordinator is not reachable or the port (default 32010) is incorrect | Verify the host, port, and that the Dremio coordinator is running |
Project ID is required (Cloud only) |
The Dremio Cloud project ID was not provided in the connection form | Add the Project ID from your Dremio Cloud project settings |
SSL handshake failed |
SSL is required but not configured, or the SSL certificate is not trusted | Enable SSL in the connection parameters or add the Dremio certificate to the trust store |
Detailed Troubleshooting Notes
Authentication Errors
The error Authentication failed indicates that the credentials are incorrect.
Common causes:
- Incorrect password โ the password does not match the Dremio user account.
- Invalid PAT โ the Personal Access Token is expired, revoked, or was generated in a different Dremio instance.
- PAT permissions โ the PAT does not have sufficient permissions for the requested operation.
Note
Dremio Personal Access Tokens are user-scoped. Ensure the PAT belongs to a user with the required permissions on the target datasets.
Permission Errors
The error Permission denied on dataset means the user authenticated successfully but lacks access to the target dataset.
Common causes:
- Missing
SELECTon dataset โ the user does not haveSELECTpermission on the specific dataset. - Source not shared โ in Dremio, datasets derived from a source must be explicitly shared with users.
- Project scope (Cloud only) โ the dataset exists in a different project than the one configured in the connection.
Connection Errors
The error Connection refused or SSL handshake failed indicates a connectivity issue.
Common causes:
- Coordinator not reachable โ the Dremio coordinator host or port (default 32010) is incorrect.
- SSL not configured โ the Dremio server requires SSL but the connection is not configured for it.
- Project ID missing (Cloud only) โ Dremio Cloud requires a Project ID to scope queries.
Tip
Start by confirming credentials are valid (authentication errors), then verify dataset permissions (permission errors), and finally check coordinator connectivity and SSL configuration (connection errors).
Add the Source Datastore
A source datastore is a storage location used to connect to and access data from external sources. Dremio is an example of such a datastore, specifically a type of JDBC datastore that supports connectivity through the JDBC API. Configuring the Dremio datastore allows the Qualytics platform to access and perform operations on the data, thereby generating valuable insights.

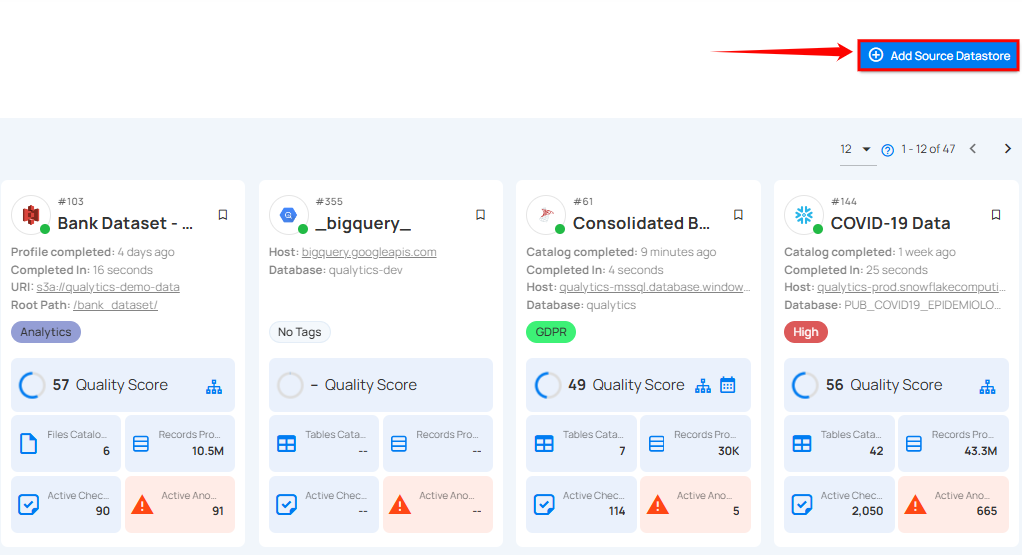

Step 1: Log in to your Qualytics account and click on the Add Source Datastore button located at the top-right corner of the interface.

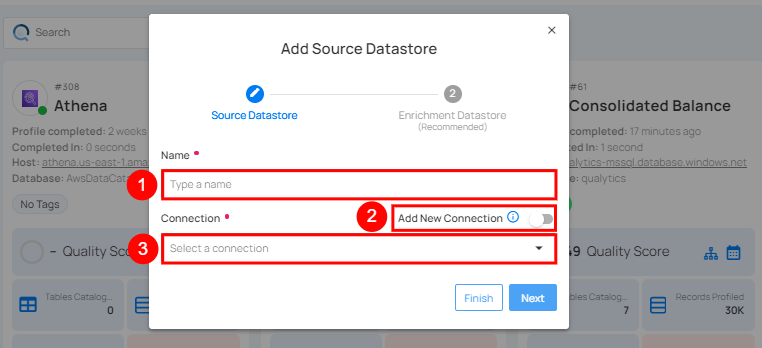

Step 2: A modal window - Add Datastore will appear, providing you with the options to connect a datastore.

| REF. | FIELDS | ACTIONS |
|---|---|---|
| 1. | Name | Specify the name of the datastore (e.g., the specified name will appear on the datastore cards) |
| 2. | Toggle Button | Toggle ON to create a new source datastore from scratch, or toggle OFF to reuse credentials from an existing connection |
| 3. | Connector | Select Dremio from the dropdown list. |
Option I: Create a Datastore with a new Connection
If the toggle for Add New connection is turned on, then this will prompt you to add and configure the source datastore from scratch without using existing connection details.
Step 1: Select the Dremio connector from the dropdown list and add connection properties such as Secrets Management, host, port, username, and password, along with datastore properties like catalog, database, etc.

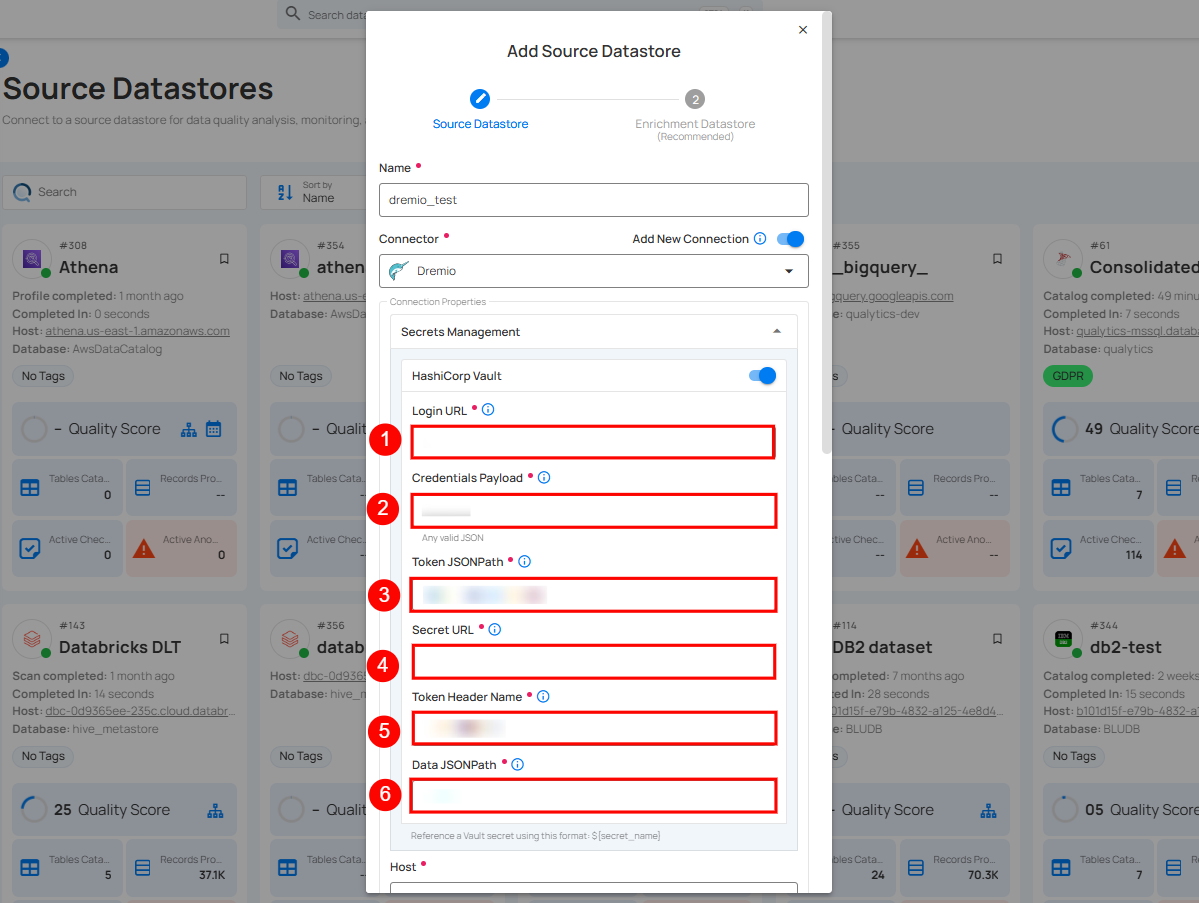

Secrets Management: This is an optional connection property that allows you to securely store and manage credentials by integrating with HashiCorp Vault and other secret management systems. Toggle it ON to enable Vault integration for managing secrets.
Note
After configuring HashiCorp Vault integration, you can use ${key} in any Connection property to reference a key from the configured Vault secret. Each time the Connection is initiated, the corresponding secret value will be retrieved dynamically.
| REF. | FIELDS | ACTIONS |
|---|---|---|
| 1. | Login URL | Enter the URL used to authenticate with HashiCorp Vault. |
| 2. | Credentials Payload | Input a valid JSON containing credentials for Vault authentication. |
| 3. | Token JSONPath | Specify the JSONPath to retrieve the client authentication token from the response (e.g., $.auth.client_token). |
| 4. | Secret URL | Enter the URL where the secret is stored in Vault. |
| 5. | Token Header Name | Set the header name used for the authentication token (e.g., X-Vault-Token). |
| 6. | Data JSONPath | Specify the JSONPath to retrieve the secret data (e.g., $.data). |

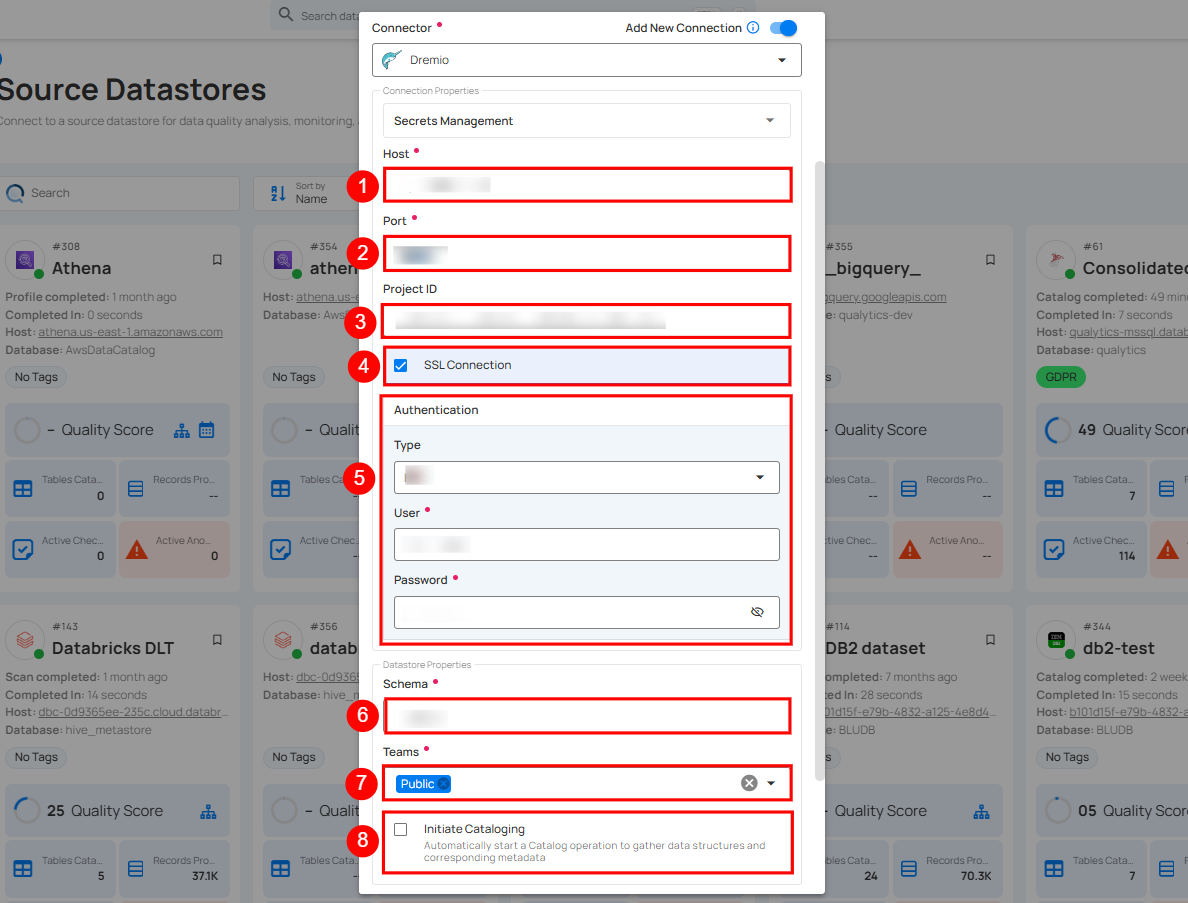

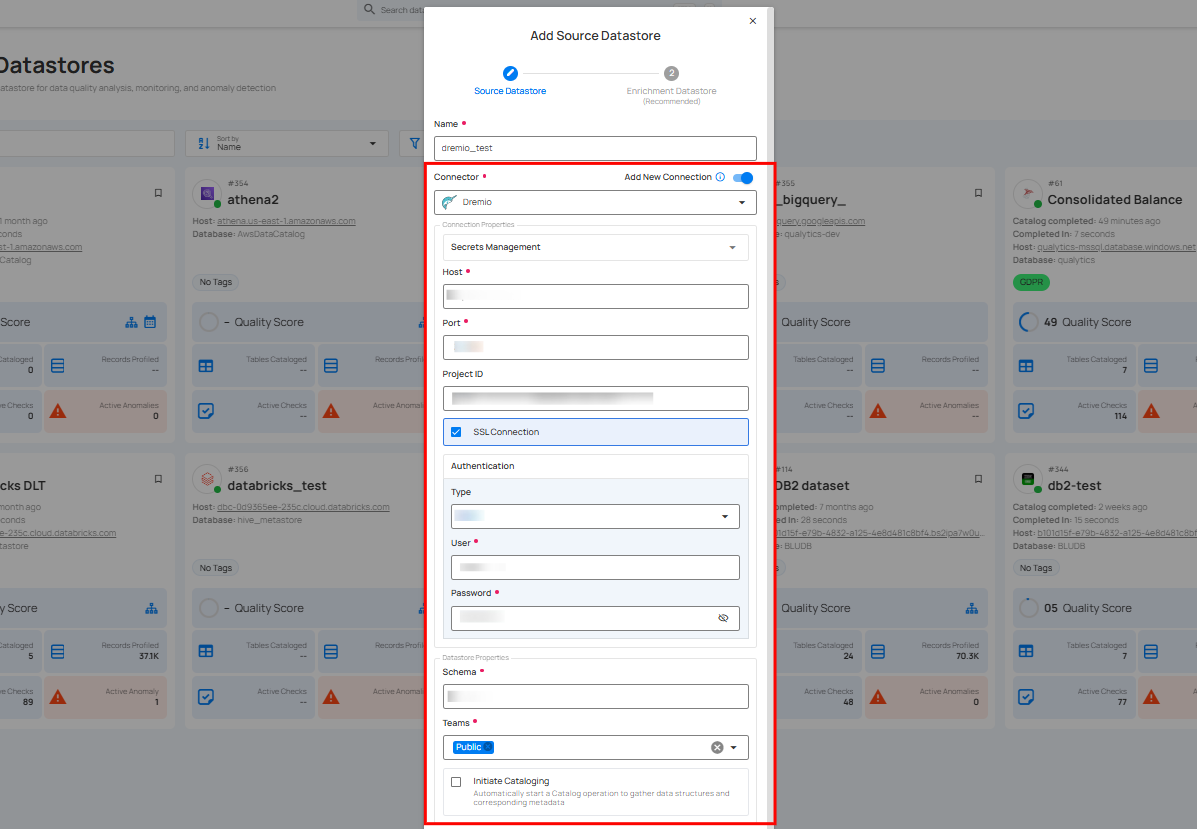

Step 2: The configuration form will expand, requesting credential details before establishing the connection.

| REF. | FIELDS | ACTIONS |
|---|---|---|
| 1. | Host | Get the Hostname from your Dremio account and add it to this field. |
| 2. | Port | Specify the Port number. |
| 3. | Project ID | Enter the Project ID associated with Dremio. |
| 4. | SSL Connection | Enable the SSL connection to ensure secure communication between Qualytics and the selected datastore. |
| 5. | Authentication | You can choose between Basic authentication or Access Token for validating and securing the connection to your Dremio instance. Basic Authentication: This method uses a username and password combination for authentication. It is a straightforward method where the user's credentials are directly used to access Dremio.
|
| 6. | Schema | Define the schema within the database that should be used. |
| 7. | Teams | Select one or more teams from the dropdown to associate with this source datastore. |
| 8. | Initiate Sync | Tick the checkbox to automatically perform a sync operation on the configured source datastore to detect new, changed, or removed containers and fields. |

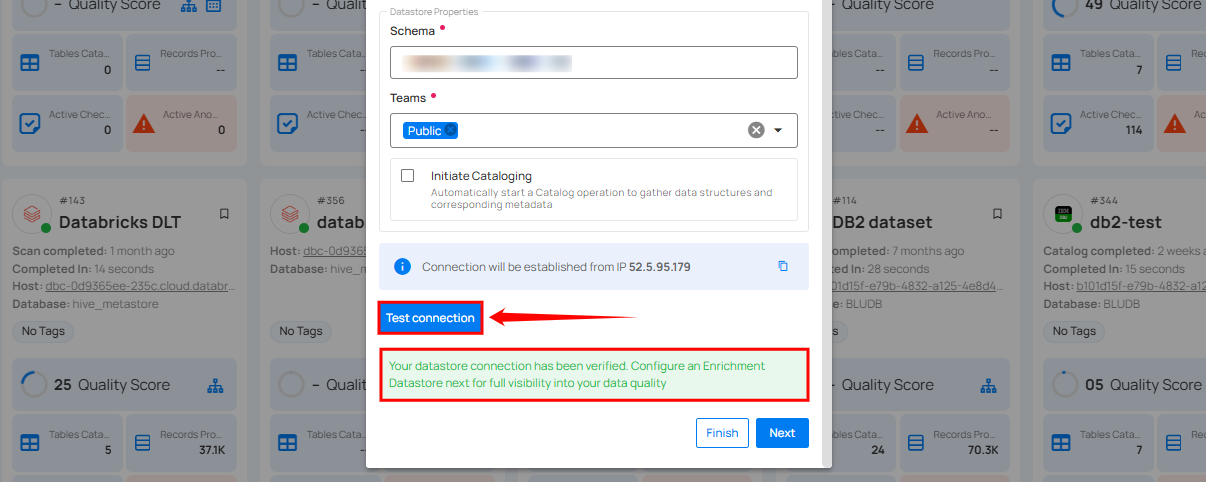

Step 3: After adding the source datastore details, click on the Test Connection button to check and verify its connection.

If the credentials and provided details are verified, a success message will be displayed indicating that the connection has been verified.
Option II: Use an Existing Connection

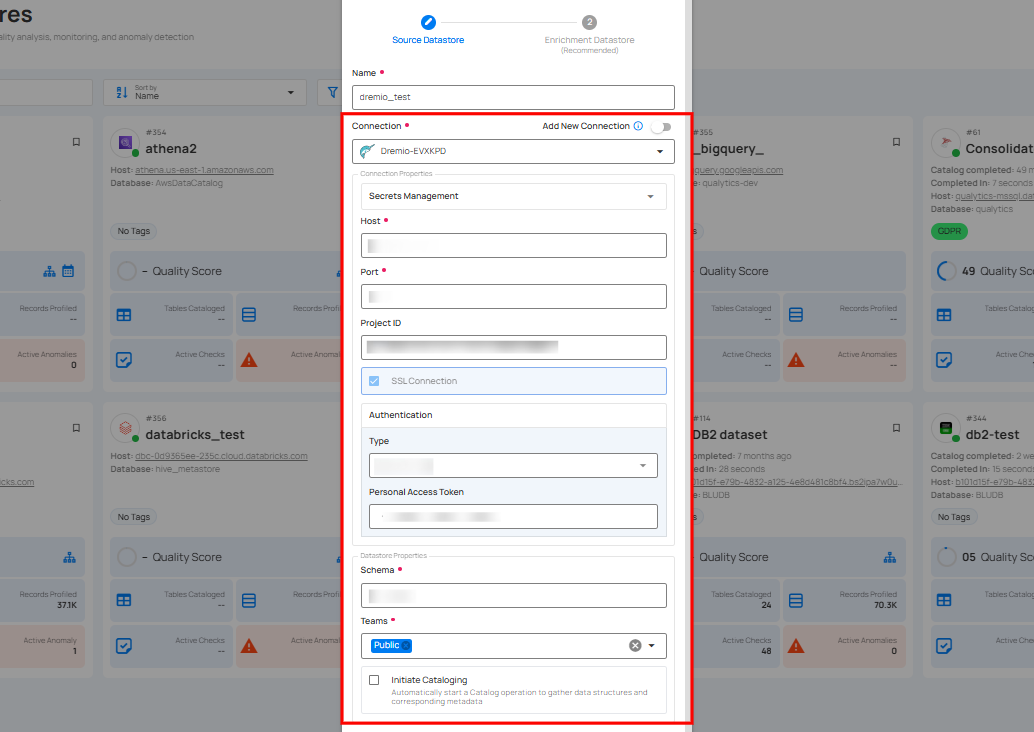

If the toggle for Add New connection is turned off, then this will prompt you to configure the source datastore using the existing connection details.
Step 1: Select a connection to reuse existing credentials.

Note
If you are using existing credentials, you can only edit the details such as Schema, Teams and Initiate Sync.
Step 2: Click on the Test Connection button to check and verify the source data connection. If the connection details are verified, a success message will be displayed.

Note
Clicking on the Finish button will create the source datastore and bypass the enrichment datastore configuration step.
Tip

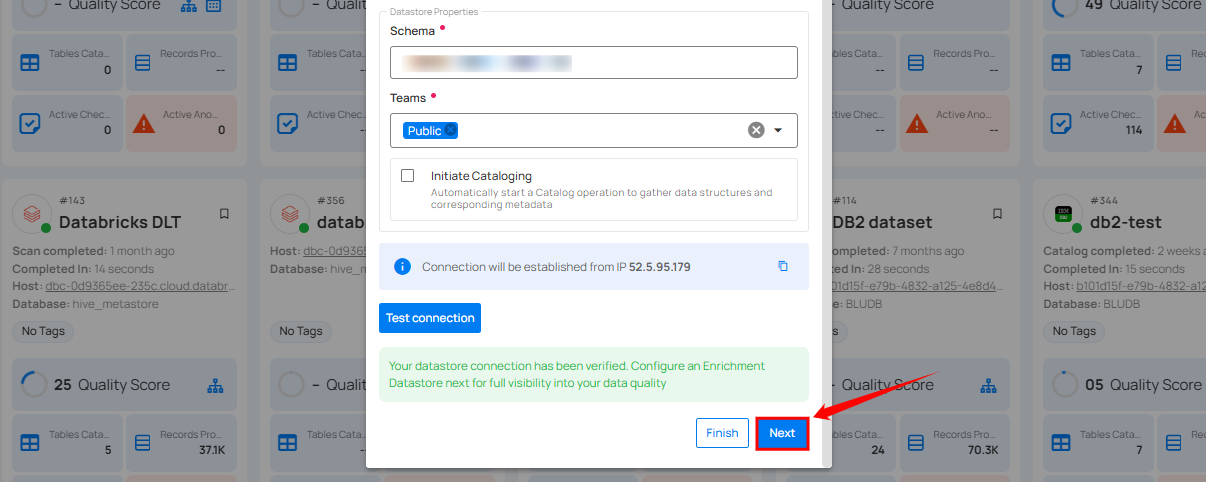

Click on the Next button, which will take you to the enrichment datastore configuration page.
Add Enrichment Datastore
After successfully testing and verifying your source datastore connection, you have the option to add an enrichment datastore (recommended). This datastore is used to store analyzed results, including any anomalies and additional metadata in tables. This setup provides comprehensive visibility into your data quality, enabling you to manage and improve it effectively.
Warning
Qualytics does not support the Dremio connector as an enrichment datastore, but you can point to a different enrichment datastore.
Step 1: Whether you have added a source datastore by creating a new datastore connection or using an existing connection, click on the Next button to start adding the Enrichment Datastore.

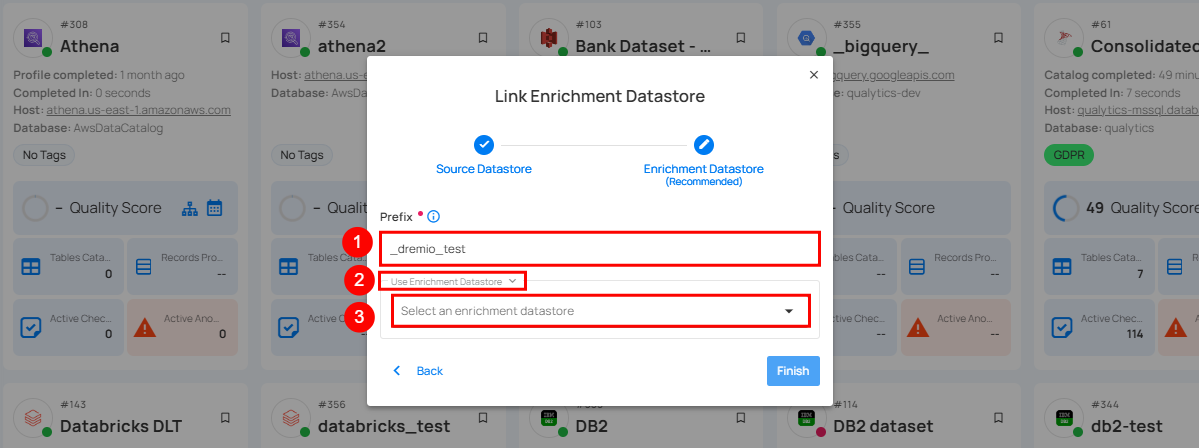

Step 2: A modal window - Link Enrichment Datastore will appear, providing you with the options to configure an enrichment datastore.

| REF. | FIELDS | ACTIONS |
|---|---|---|
| 1. | Prefix | Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore. |
| 2. | Caret Down Button | Click the caret down to select either Use Enrichment Datastore or Add Enrichment Datastore. |
| 3. | Enrichment Datastore | Select an enrichment datastore from the dropdown list. |
Option I: Create an Enrichment Datastore with a new Connection
If the toggle for Add New connection is turned on, then this will prompt you to add and configure the enrichment datastore from scratch without using an existing enrichment datastore and its connection details.

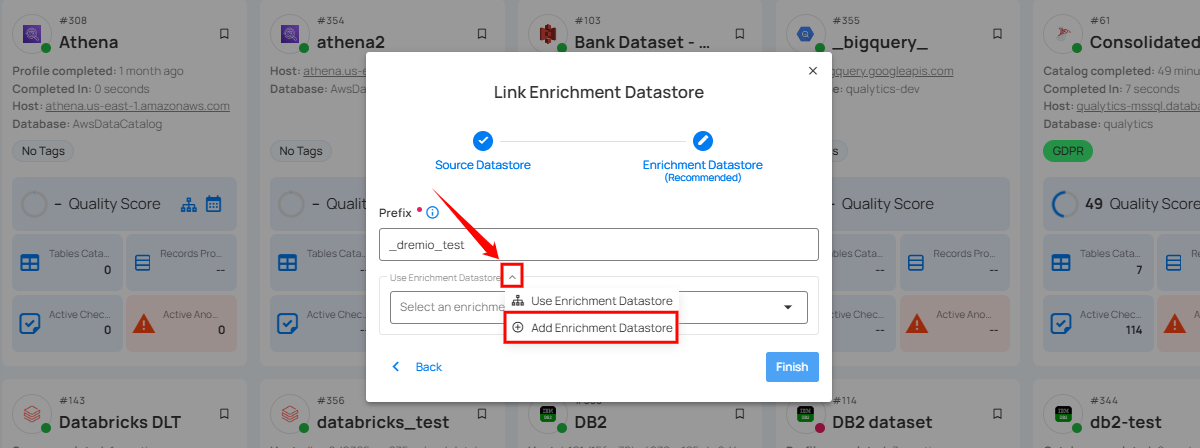

Step 1: Click on the caret button and select Add Enrichment Datastore.

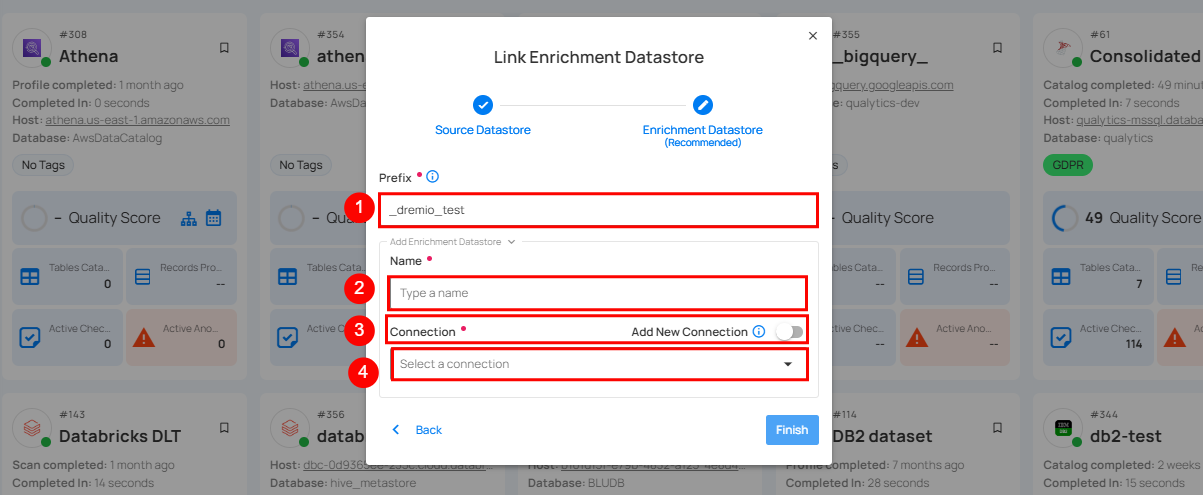

A modal window Link Enrichment Datastore will appear. Enter the following details to create an enrichment datastore with a new connection.

| REF. | FIELDS | ACTION |
|---|---|---|
| 1. | Prefix | Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore. |
| 2. | Name | Give a name for the enrichment datastore. |
| 3. | Toggle Button for add new connection | Toggle ON to create a new enrichment datastore from scratch or toggle OFF to reuse credentials from an existing connection. |
| 4. | Connector | Select a datastore connector from the dropdown list. |

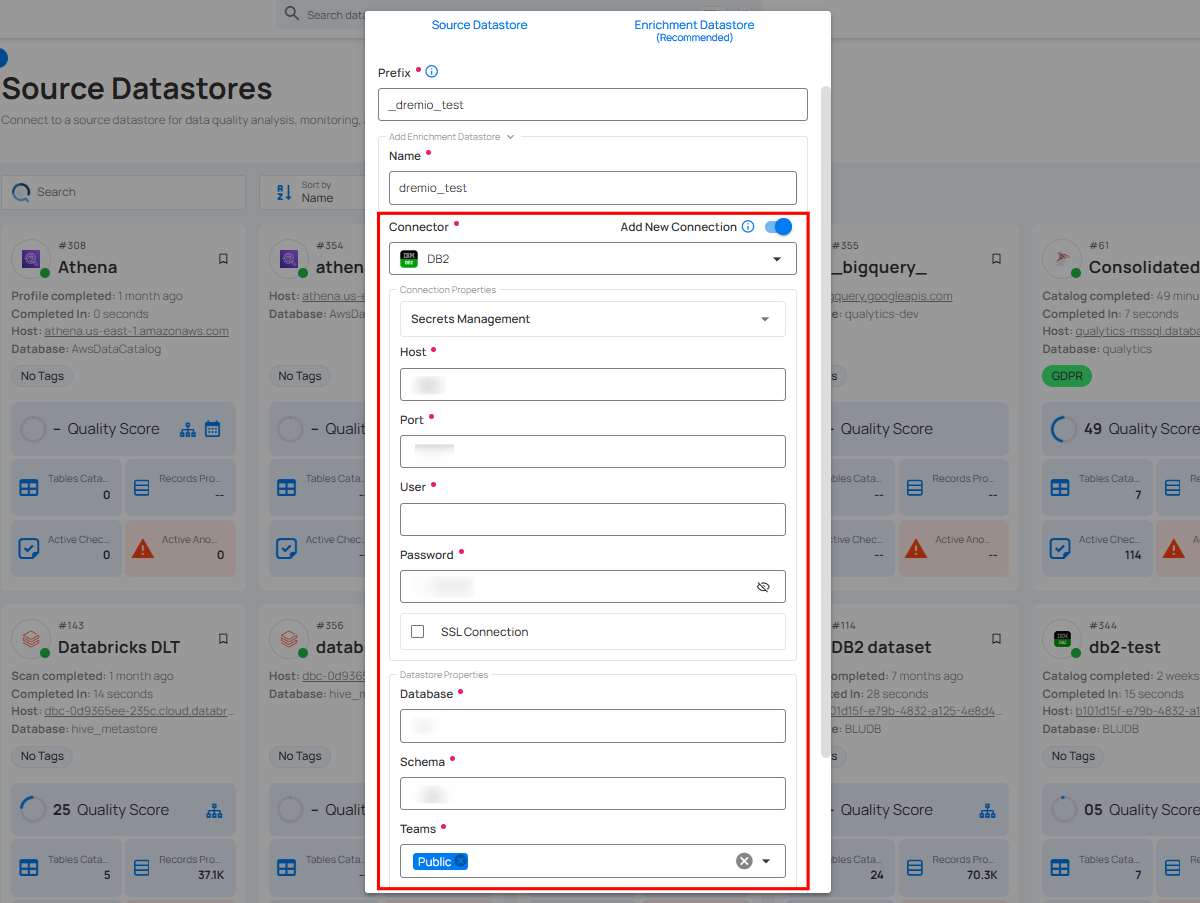

Step 2: Add connection details for your selected enrichment datastore connector.
Note
Qualytics does not support Dremio as an enrichment datastore. Instead, you can select a different enrichment datastore for this purpose. For demonstration purposes, we are using DB2 as the enrichment datastore. You can use any other JDBC or DFS datastore of your choice for the enrichment datastore configuration.

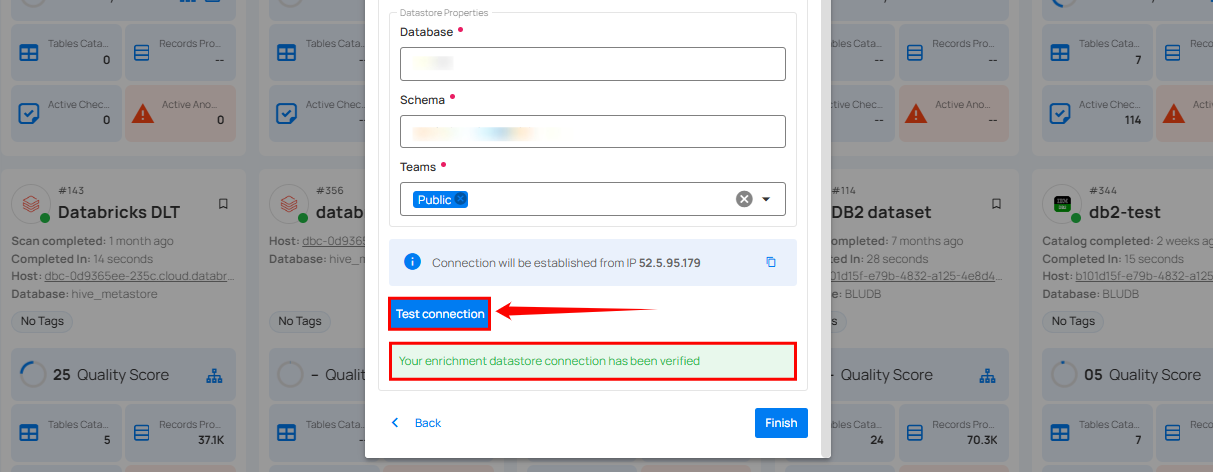

Step 3: Click on the Test Connection button to verify the selected enrichment datastore connection. If the connection is verified, a flash message will indicate that the connection with the datastore has been successfully verified.

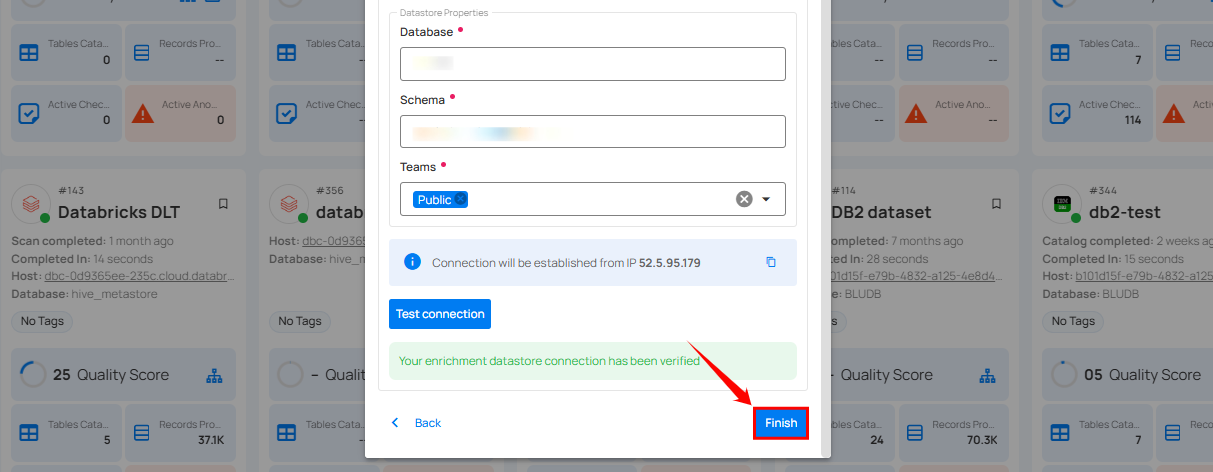

Step 4: Click on the Finish button to complete the configuration process.

When the configuration process is finished, a modal will display a success message indicating that your datastore has been successfully added.

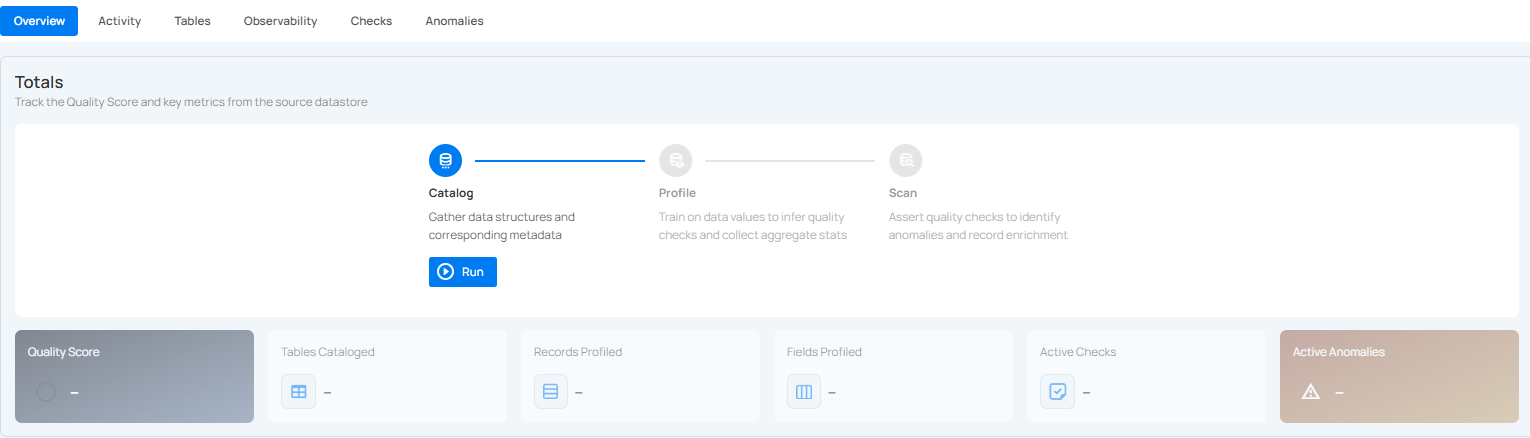

Step 5: Close the Success dialogue and the page will automatically redirect you to the Source Datastore Details page where you can perform data operations on your configured source datastore.

Option II: Use an Existing Connection
If the Use enrichment datastore option is selected from the caret button, you will be prompted to configure the datastore using existing connection details.

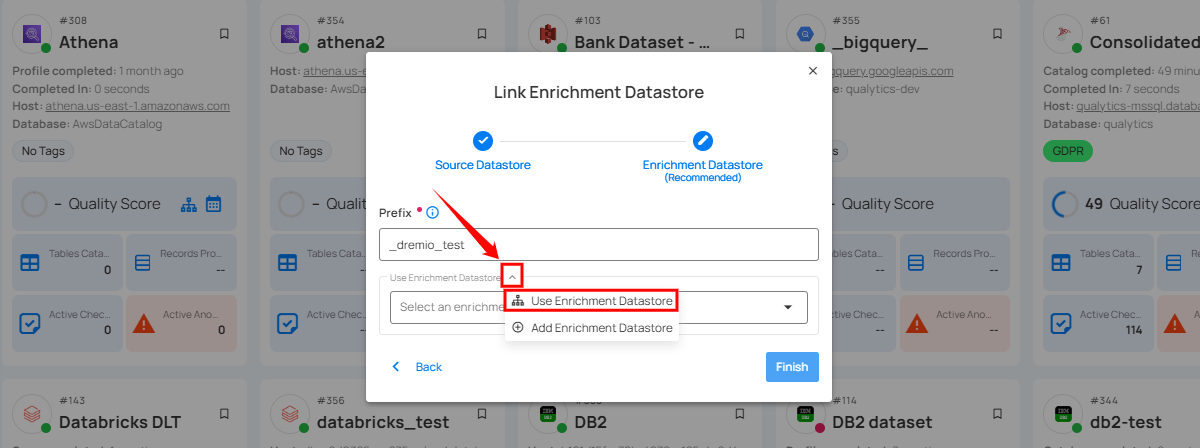

Step 1: Click on the caret button and select Use Enrichment Datastore.

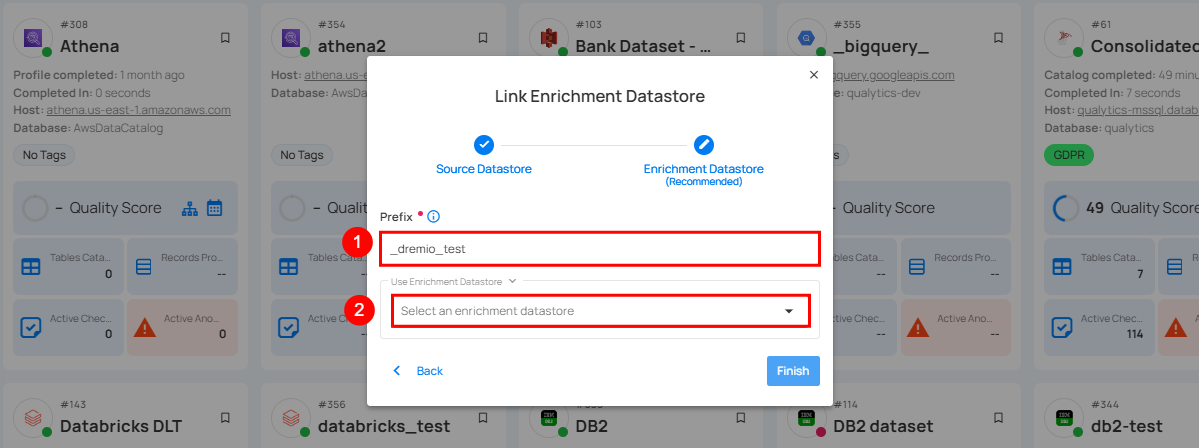

Step 2: A modal window Link Enrichment Datastore will appear. Add a prefix name and select an existing enrichment datastore from the dropdown list.
Note
Qualytics does not support Dremio as an enrichment datastore. Instead, you can select a different enrichment datastore for this purpose. For demonstration purposes, we are using DB2 as the enrichment datastore. You can use any other JDBC or DFS datastore of your choice for the enrichment datastore configuration.

| REF. | FIELDS | ACTIONS |
|---|---|---|
| 1. | Prefix | Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore. |
| 2. | Enrichment Datastore | Select an enrichment datastore from the dropdown list. |

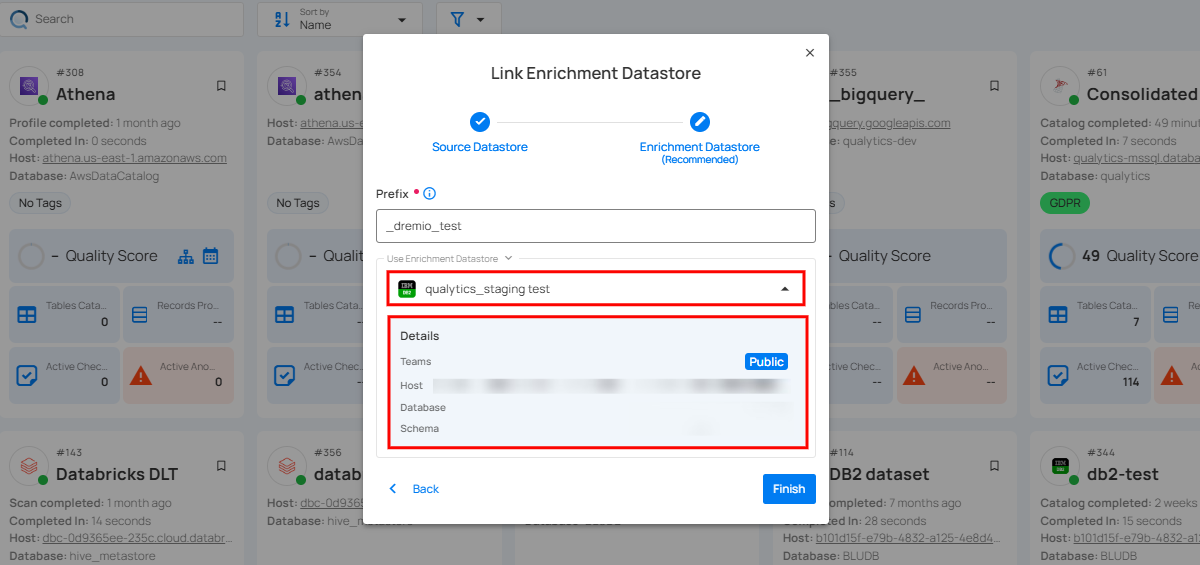

Step 3: After selecting an existing enrichment datastore connection, you will view the following details related to the selected enrichment:
-
Teams: The team associated with managing the enrichment datastore is based on the role of public or private. Example - Marked as Public means that this datastore is accessible to all the users.
-
Host: This is the server address where the enrichment datastore instance is hosted. It is the endpoint used to connect to the enrichment datastore environment.
-
Database: Refers to the specific database within the enrichment datastore environment where the data is stored.
-
Schema: The schema used in the enrichment datastore. The schema is a logical grouping of database objects (tables, views, etc.). Each schema belongs to a single database.

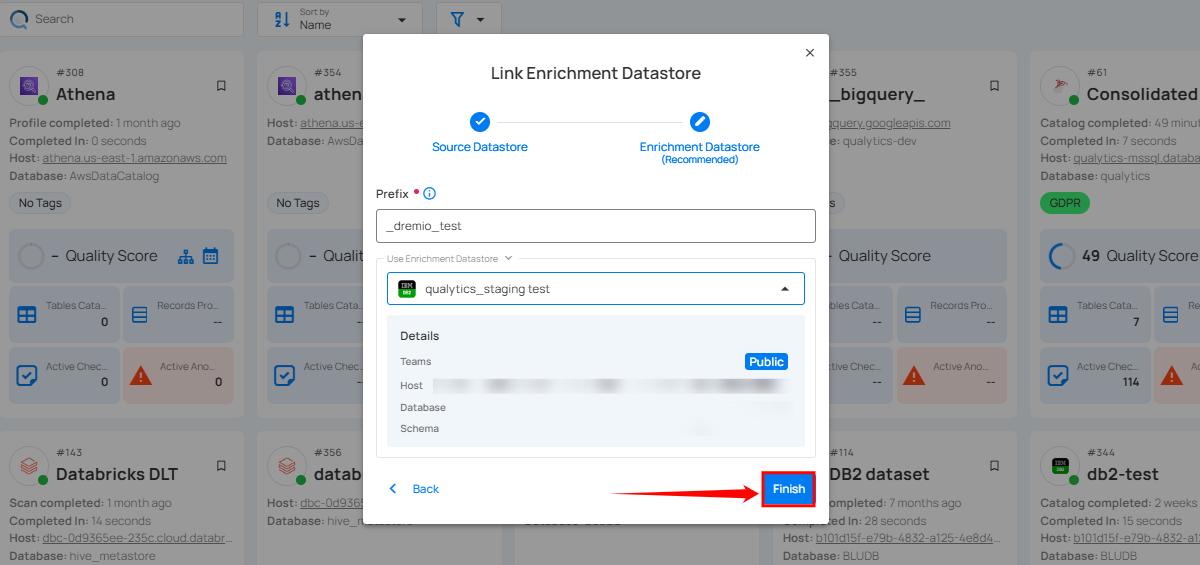

Step 4: Click on the Finish button to complete the configuration process for the existing enrichment datastore.

When the configuration process is finished, a modal will display a success message indicating that your datastore has been successfully added.
Close the success message and you will be automatically redirected to the Source Datastore Details page where you can perform data operations on your configured source datastore.

API Payload Examples
This section provides detailed examples of API payloads to guide you through the process of creating and managing datastores using Qualytics API. Each example includes endpoint details, sample payloads, and instructions on how to replace placeholder values with actual data relevant to your setup.
Creating a Source Datastore
This section provides sample payloads for creating a Dremio datastore. Replace the placeholder values with actual data relevant to your setup.
Endpoint (Post): /api/datastores (post)
{
"name": "your_datastore_name",
"teams": ["Public"],
"database": "dremio_database",
"schema": "dremio_schema",
"enrich_only": false,
"trigger_catalog": true,
"connection": {
"name": "your_connection_name",
"type": "dremio",
"host": "dremio_host",
"port": 443,
"project_id": "dremio_id",
"ssl": true,
"authentication": {
"type": "access_token",
"personal_access_token": "your_personal_access_token"
}
}
}
# Step 1: Create a Connection
qualytics connections create \
--type dremio \
--name "your_connection_name" \
--host sql.dremio.cloud \
--port 32010 \
--username ${DREMIO_USER} \
--password ${DREMIO_PASSWORD}
# Step 2: Create a Source Datastore
qualytics datastores create \
--name "your_datastore_name" \
--connection-name "your_connection_name" \
--schema your_schema
Link an Enrichment Datastore to a Source Datastore
Endpoint Details: /api/datastores/{datastore-id}/enrichment/{enrichment-id} (patch)
