DB2

Adding and configuring a DB2 connection within Qualytics empowers the platform to build a symbolic link with your schema to perform operations like data discovery, visualization, reporting, syncing, profiling, scanning, anomaly surveillance, and more.

This documentation provides a step-by-step guide on how to add DB2 as both a source and enrichment datastore in Qualytics. It covers the entire process, from initial connection setup to testing and finalizing the configuration.

By following these instructions, enterprises can ensure their DB2 environment is properly connected with Qualytics, unlocking the platform's potential to help you proactively manage your full data quality lifecycle.

Let’s get started 🚀

DB2 Setup Guide

Qualytics connects to DB2 through the IBM DB2 JDBC driver. It queries DB2 system catalogs (SYSCAT.SCHEMATA, SYSCAT.TABLES) to discover schemas and uses standard JDBC metadata APIs for tables, columns, and primary keys.

Minimum DB2 Permissions (Source Datastore)

Permission	Purpose
`CONNECT ON DATABASE`	Allow the user to connect to the database
`USAGE ON SCHEMA <schema_name>`	Access objects within the target schema
`SELECT ON ALL TABLES IN SCHEMA`	Read data from all tables for profiling and scanning
`SELECT ON SYSCAT.SCHEMATA`	Discover available schemas in the database
`SELECT ON SYSCAT.TABLES`	Discover available tables and filter empty schemas

Additional Permissions for Enrichment Datastore

When using DB2 as an enrichment datastore, the following additional permissions are required for Qualytics to write metadata tables (e.g., _qualytics_*):

Permission	Purpose
`CREATETAB ON DATABASE`	Create enrichment tables (`_qualytics_*`)
`CREATEIN ON SCHEMA <schema_name>`	Create new objects within the schema
`ALTERIN ON SCHEMA <schema_name>`	Modify enrichment table schemas during version migrations
`INSERT ON ALL TABLES IN SCHEMA`	Write anomaly records, scan results, and check metrics
`UPDATE ON ALL TABLES IN SCHEMA`	Update enrichment records during rescans
`DELETE ON ALL TABLES IN SCHEMA`	Remove stale enrichment records
`DROPIN ON SCHEMA <schema_name>`	Remove enrichment tables during cleanup or when the datastore is unlinked

Example: Source Datastore User (Read-Only)

Replace <schema_name> with your actual value.

-- Grant connection and schema access
GRANT CONNECT ON DATABASE TO USER qualytics_read;
GRANT USAGE ON SCHEMA <schema_name> TO USER qualytics_read;

-- Grant read access to all tables in the schema
GRANT SELECT ON ALL TABLES IN SCHEMA <schema_name> TO USER qualytics_read;

Example: Enrichment Datastore User (Read-Write)

-- Grant connection and schema access
GRANT CONNECT ON DATABASE TO USER qualytics_readwrite;
GRANT USAGE ON SCHEMA <schema_name> TO USER qualytics_readwrite;

-- Grant full data manipulation on all tables
GRANT SELECT, INSERT, UPDATE, DELETE ON ALL TABLES IN SCHEMA <schema_name> TO USER qualytics_readwrite;

-- Grant table creation and schema modification
GRANT CREATETAB ON DATABASE TO USER qualytics_readwrite;
GRANT CREATEIN ON SCHEMA <schema_name> TO USER qualytics_readwrite;
GRANT ALTERIN ON SCHEMA <schema_name> TO USER qualytics_readwrite;

Note

Qualytics queries DB2 system catalogs (SYSCAT.SCHEMATA, SYSCAT.TABLES) during catalog discovery. Ensure the Qualytics user has SELECT access to these system catalog views.

Info

If your DB2 server requires encrypted connections, enable the SSL toggle in the connection form. This establishes a TLS-encrypted connection between Qualytics and the DB2 instance.

Troubleshooting Common Errors

Error	Likely Cause	Fix
`SQL30082N: Security processing failed`	Incorrect username or password	Verify the credentials and ensure the user exists in the DB2 instance
`SQL1060N: User does not have the CONNECT privilege`	The user lacks `CONNECT` on the database	Run `GRANT CONNECT ON DATABASE TO USER <user>`
`SQL0551N: User does not have the required authorization`	The user lacks `SELECT` or other required permissions on a table	Grant the missing permission on the specific table or schema
`SQL0204N: Name is an undefined name`	The schema or table does not exist, or the user cannot see it	Verify the schema name matches exactly (DB2 stores unquoted schema names in uppercase by default)
`SQL0552N: User is not authorized to perform the requested command`	The enrichment user lacks `CREATETAB` or `CREATEIN`	Run `GRANT CREATETAB ON DATABASE TO USER <user>` and `GRANT CREATEIN ON SCHEMA <schema_name> TO USER <user>`

Detailed Troubleshooting Notes

Authentication Errors

The error SQL30082N: Security processing failed indicates that the credentials are incorrect.

Common causes:

Incorrect password — the password does not match the one set for the user.
User does not exist — the username was misspelled or does not exist in the DB2 instance.
Authentication plugin mismatch — the DB2 server uses a different authentication mechanism than expected (e.g., Kerberos, LDAP).

Note

DB2 authentication is handled at the operating system or LDAP level, not within the database itself. Ensure the credentials match the OS or LDAP user account.

Permission Errors

The error SQL0551N: User does not have the required authorization means the user authenticated successfully but lacks the necessary grants.

Common causes:

Missing SELECT on tables — the user does not have SELECT on the target tables in the schema.
Missing CONNECT on database — the user cannot connect to the database.
Missing USAGE on schema — the user cannot access objects within the schema.
System catalog access — the user lacks SELECT access to SYSCAT.SCHEMATA or SYSCAT.TABLES needed for catalog discovery.

Connection Errors

The error SQL1060N: User does not have the CONNECT privilege means the user lacks the CONNECT privilege on the database.

Common causes:

Missing CONNECT grant — GRANT CONNECT ON DATABASE TO USER <user> was not executed.
Database not cataloged — the target database is not cataloged on the DB2 client.
Network issues — a firewall is blocking connections on the DB2 port (default 50000).

Tip

Start by confirming credentials are valid (authentication errors), then verify schema/table permissions (permission errors), and finally check database connectivity (connection errors).

Add a Source Datastore

A source datastore is a storage location used to connect to and access data from external sources. DB2 is an example of a source datastore, specifically a type of JDBC datastore that supports connectivity through the JDBC API. Configuring the JDBC datastore enables the Qualytics platform to access and perform operations on the data, thereby generating valuable insights.

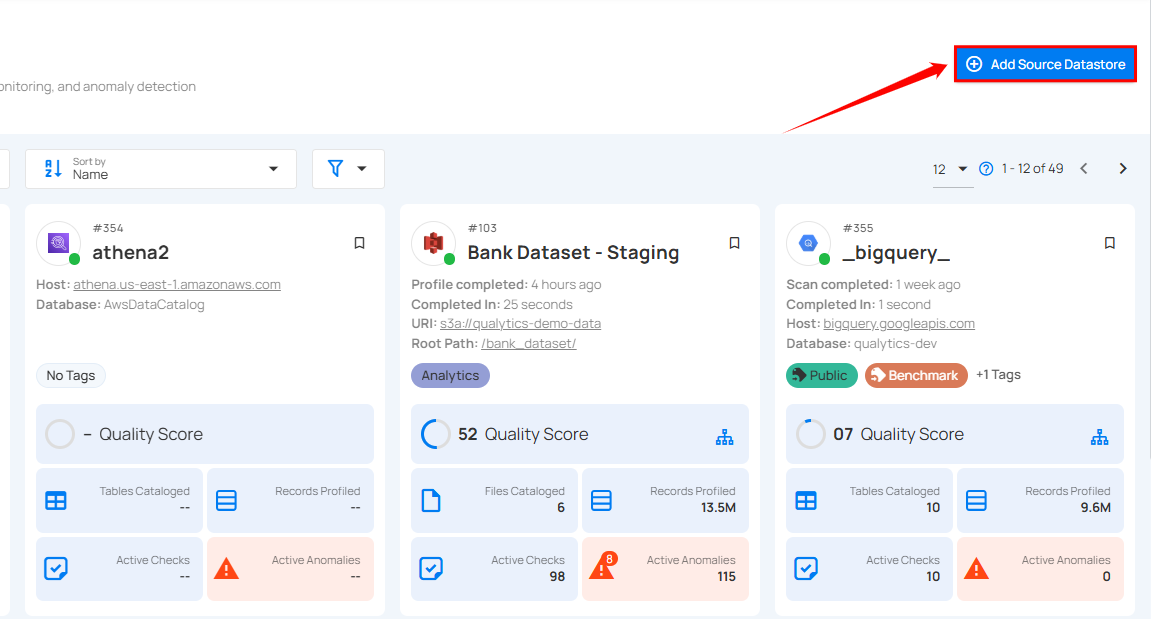

Step 1: Log in to your Qualytics account and click on the Add Source Datastore button located at the top-right corner of the interface.

add-datastore

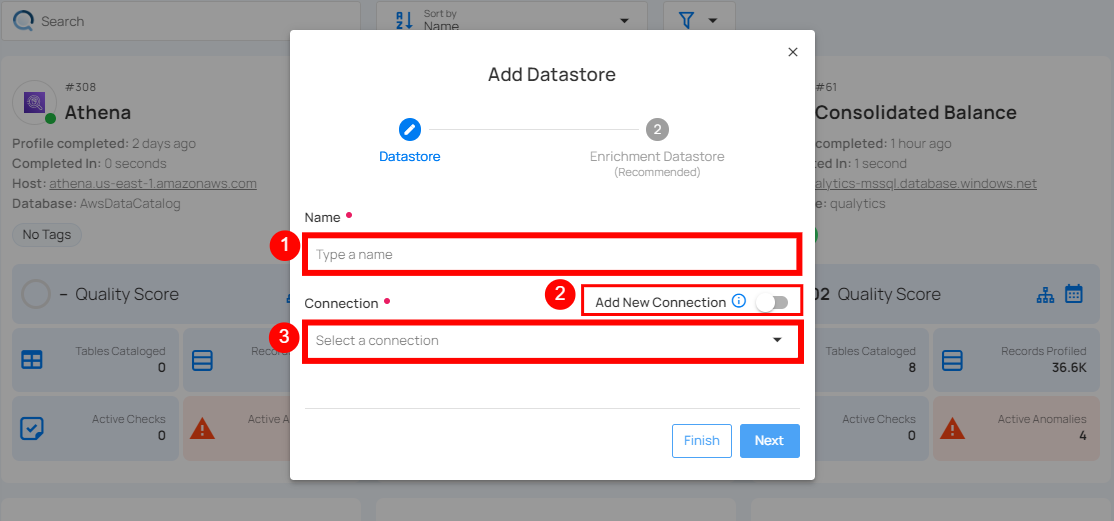

Step 2: A modal window- Add Datastore will appear, providing you with the options to connect a datastore.

select-a-connector

REF.	FIELDS	ACTIONS
1.	Name (Required)	Specify the datastore name (e.g., This name will appear on the datastore cards)
2.	Toggle Button	Toggle ON to create a new source datastore from scratch, or toggle OFF to reuse credentials from an existing connection.
3.	Connector (Required)	Select DB2 from the dropdown list.

Option I: Create a Source Datastore with a new Connection

If the toggle for Add New connection is turned on, then this will prompt you to add and configure the source datastore from scratch without using existing connection details.

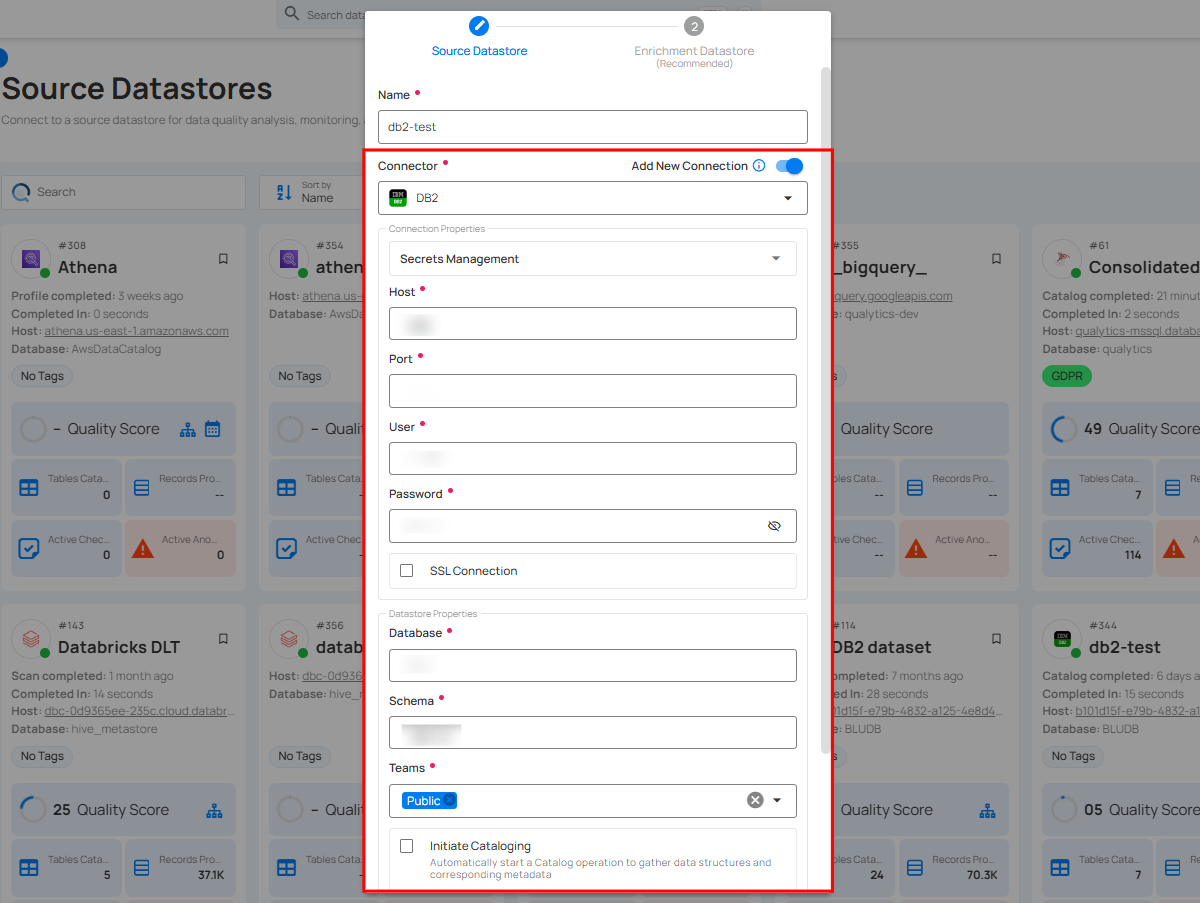

Step 1: Select the DB2 connector from the dropdown list and add connection details such as Secrets Management, host, port, user, password, SSL connection, database, and schema.

add-datastore-credentials

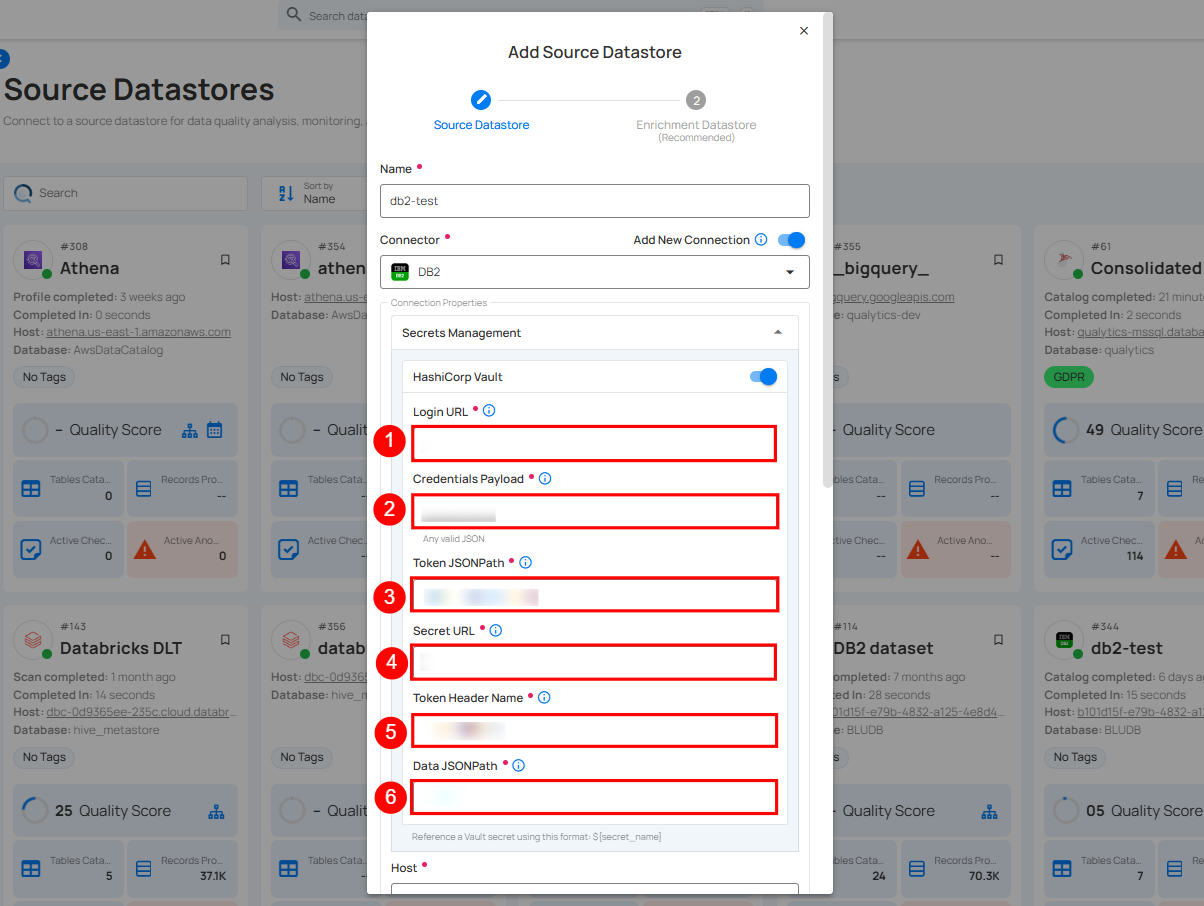

Secrets Management: This is an optional connection property that allows you to securely store and manage credentials by integrating with HashiCorp Vault and other secret management systems. Toggle it ON to enable Vault integration for managing secrets.

Note

After configuring HashiCorp Vault integration, you can use ${key} in any connection property to reference a key from the configured Vault secret. Each time the Connection is initiated, the corresponding secret value will be retrieved dynamically.

REF	FIELDS	ACTIONS
1.	Login URL	Enter the URL used to authenticate with HashiCorp Vault.
2.	Credentials Payload	Input a valid JSON containing credentials for Vault authentication.
3.	Token JSONPath	Specify the JSONPath to retrieve the client authentication token from the response (e.g., $.auth.client_token).
4.	Secret URL	Enter the URL where the secret is stored in Vault.
5.	Token Header Name	Set the header name used for the authentication token (e.g., X-Vault-Token).
6.	Data JSONPath	Specify the JSONPath to retrieve the secret data (e.g., $.data).

hashcorp-explain

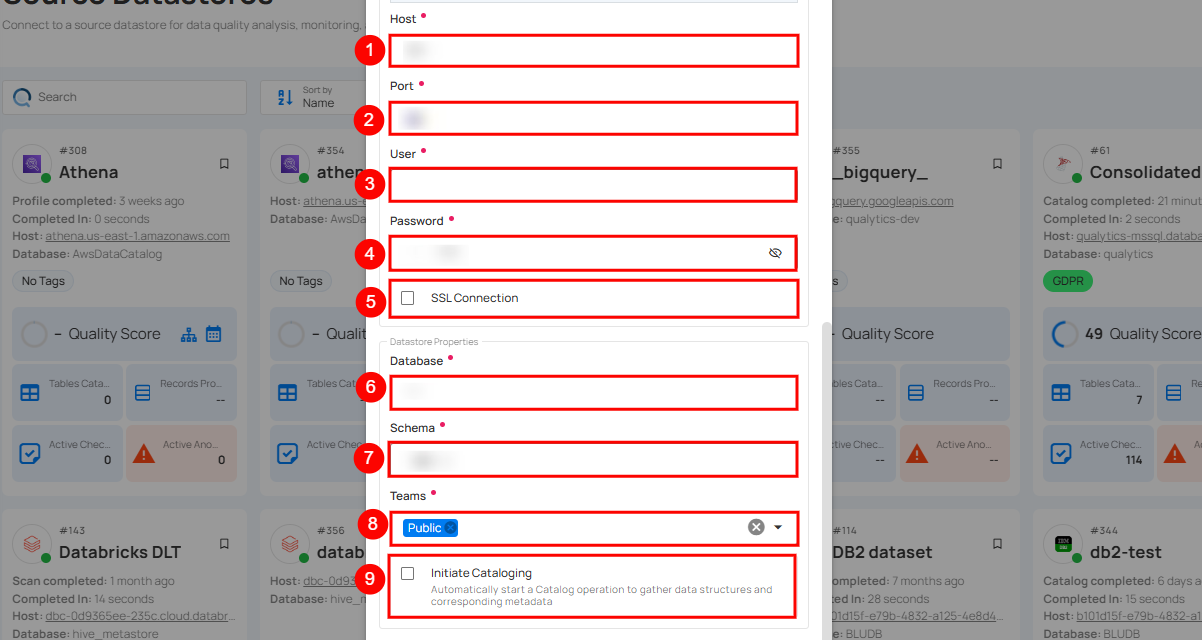

Step 2: The configuration form will expand, requesting credential details before establishing the connection.

add-datastore-credentials-explain

REF.	FIELDS	ACTIONS
1.	Host (Required)	Get Hostname from your DB2 account and add it to this field.
2.	Port (Required)	Specify the Port number.
3.	User (Required)	Enter the User to connect.
4.	Password (Required)	Enter the password to connect to the database.
5.	SSL Connection	Enable the SSL connection to ensure secure communication between Qualytics and the selected datastore.
6.	Database (Required)	Specify the database name.
7.	Schema (Required)	Define the schema within the database that should be used.
8.	Teams (Required)	Select one or more teams from the dropdown to associate with this source datastore.
9.	Initiate Sync	Tick the checkbox to automatically perform sync operation on the configured source datastore to detect new, changed, or removed containers and fields.

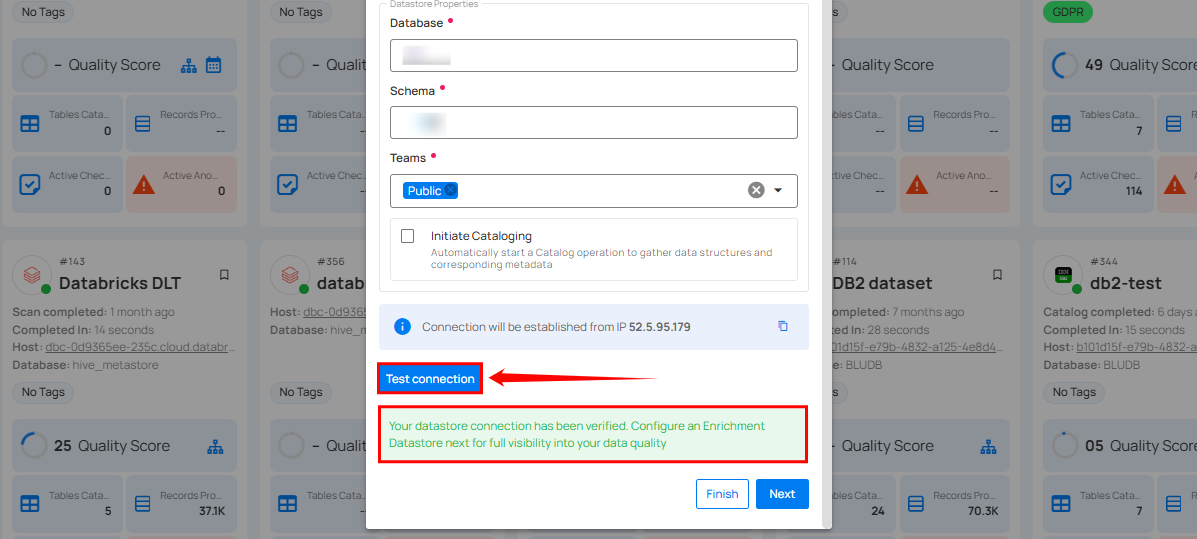

Step 3: After adding the source datastore details, click on the Test Connection button to check and verify its connection.

test-datastore-connection

If the credentials and provided details are verified, a success message will be displayed indicating that the connection has been verified.

Option II: Use an Existing Connection

If the toggle for Add New connection is turned off, then this will prompt you to configure the source datastore using the existing connection details.

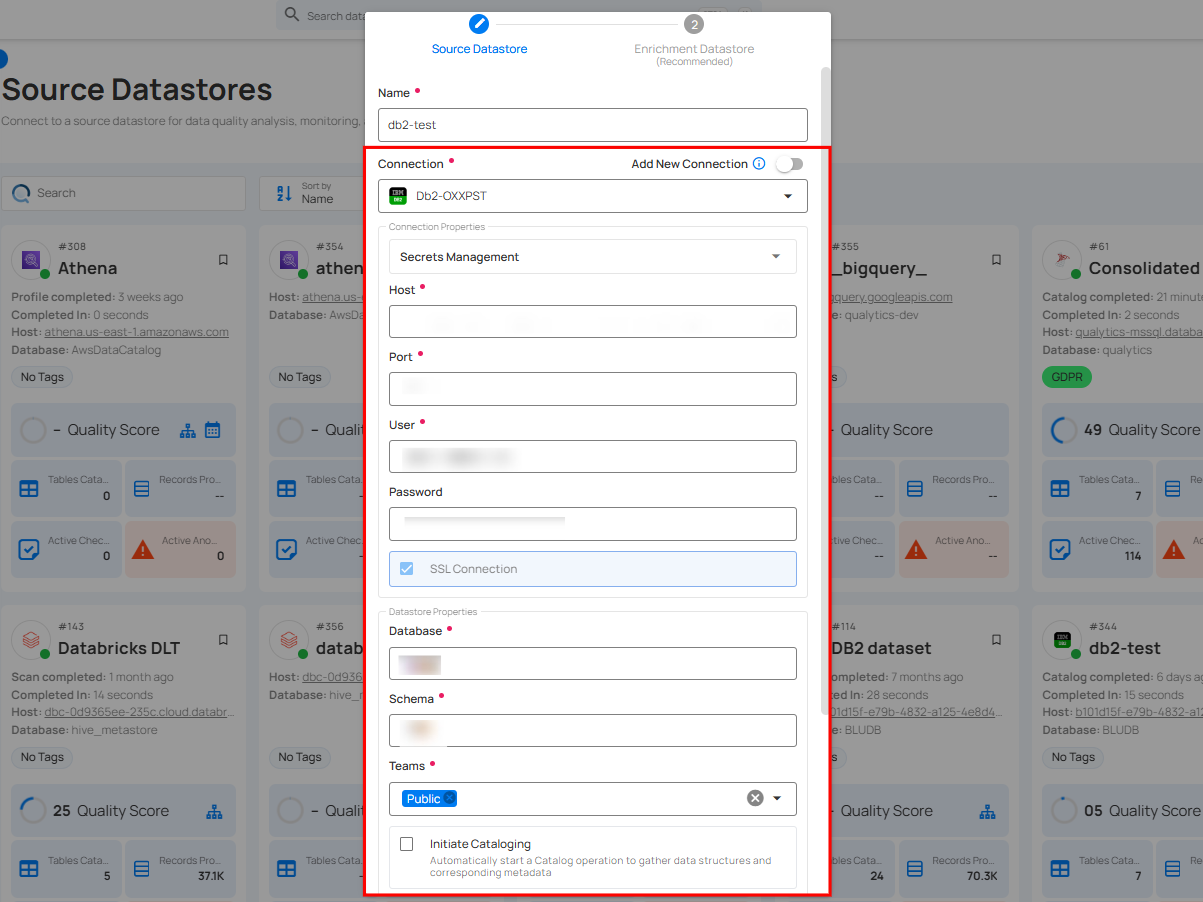

Step 1: Select a connection to reuse existing credentials.

use-existing-datastore

Note

If you are using existing credentials, you can only edit the details such as Database, Schema, Teams, and Initiate Sync.

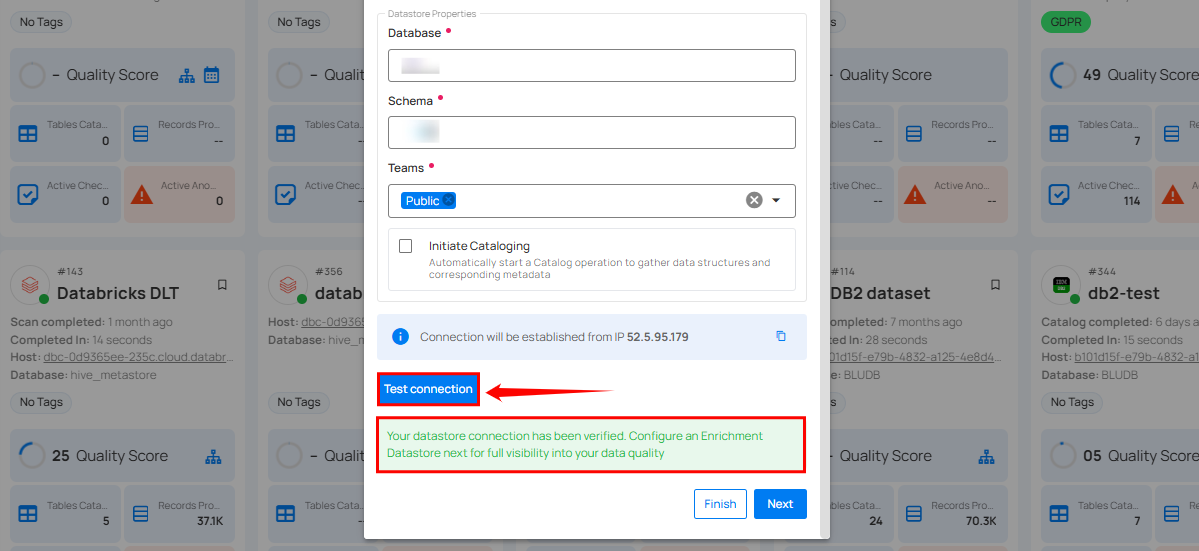

Step 2: Click on the Test Connection button to verify the existing connection details. If connection details are verified, a success message will be displayed.

test-connection-for-existing-datastore

Note

Clicking on the Finish button will create the source datastore and bypass the enrichment datastore configuration step.

Tip

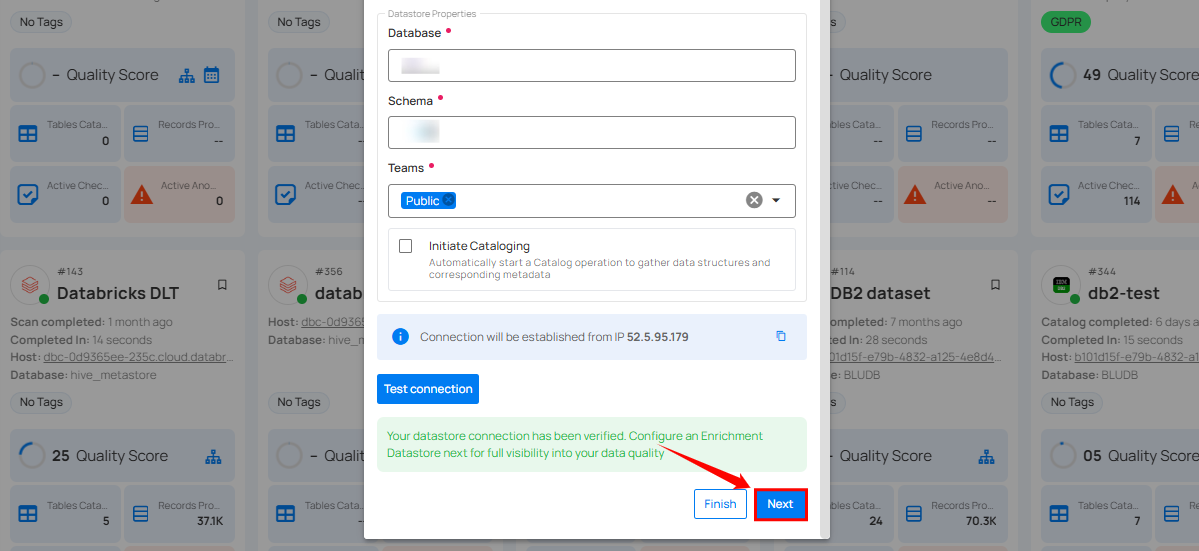

It is recommended to click on the Next button, which will take you to the enrichment datastore configuration page.

Add Enrichment Datastore

Once you have successfully tested and verified your source datastore connection, you have the option to add the enrichment datastore (recommended). This datastore is used to store the analyzed results, including any anomalies and additional metadata in tables. This setup provides full visibility into your data quality, helping you manage and improve it effectively.

Step 1: Whether you have added a source datastore by creating a new datastore connection or using an existing connection, click on the Next button to start adding the Enrichment Datastore.

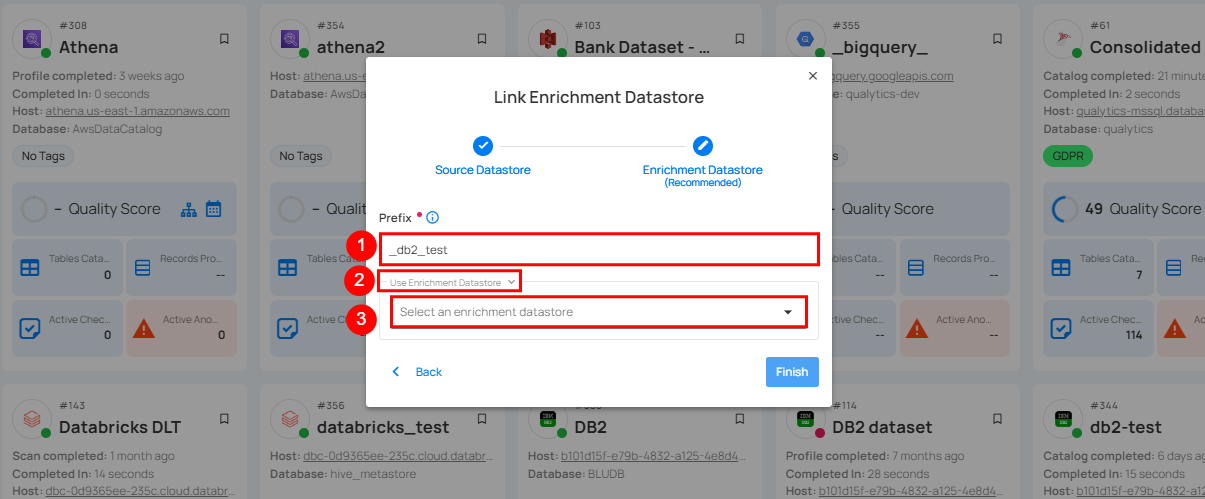

Step 2: A modal window- Link Enrichment Datastore will appear, providing you with the options to configure an enrichment datastore.

select-enrichment-connector

REF.	FIELDS	ACTIONS
1	Prefix (Required)	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2	Caret Down Button	Click the caret down to select either Use Enrichment Datastore or Add Enrichment Datastore.
3	Enrichment Datastore	Select an enrichment datastore from the dropdown list.

Option I: Create an Enrichment Datastore with a new Connection

If the toggle Add new connection is turned on, then this will prompt you to add and configure the enrichment datastore from scratch without using an existing enrichment datastore and its connection details.

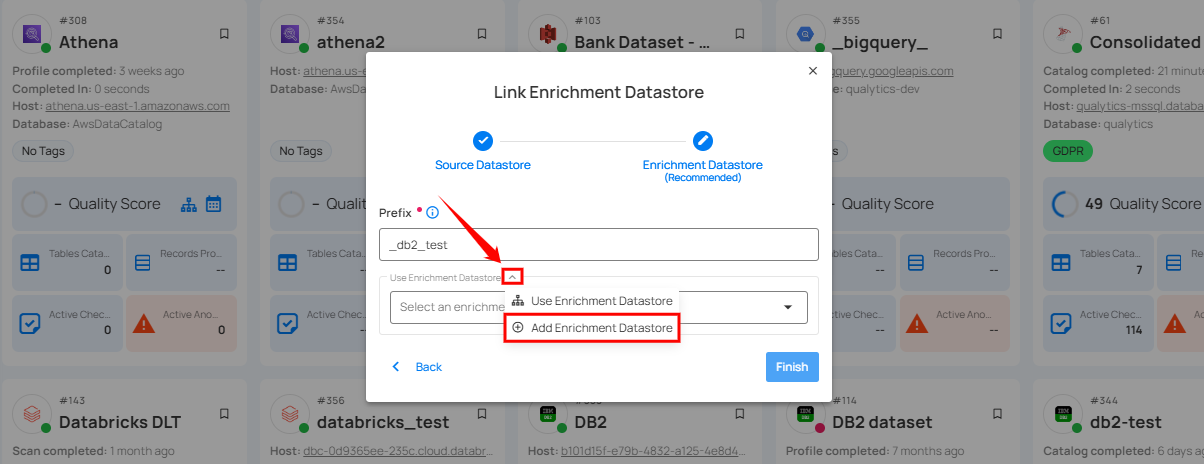

Step 1: Click on the caret button and select Add Enrichment Datastore.

caret-button

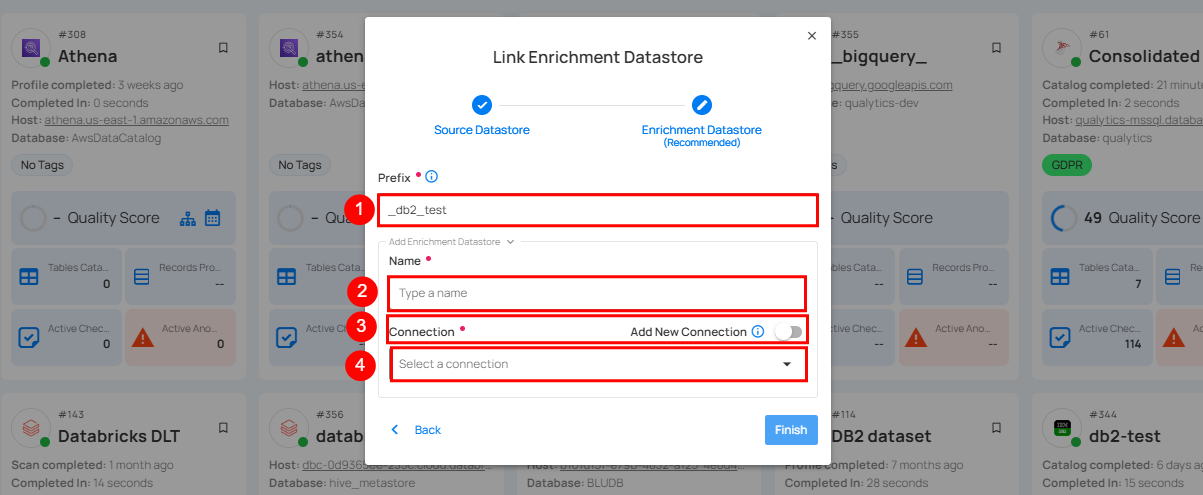

A modal window Link Enrichment Datastore will appear. Enter the following details to create an enrichment datastore with a new connection.

modal-window

REF.	FIELDS	ACTIONS
1.	Prefix	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2.	Name	Give a name for the enrichment datastore.
3.	Toggle Button for add new connection	Toggle ON to create a new enrichment from scratch or toggle OFF to reuse credentials from an existing connection.
4.	Connector	Select a datastore connector from the dropdown list.

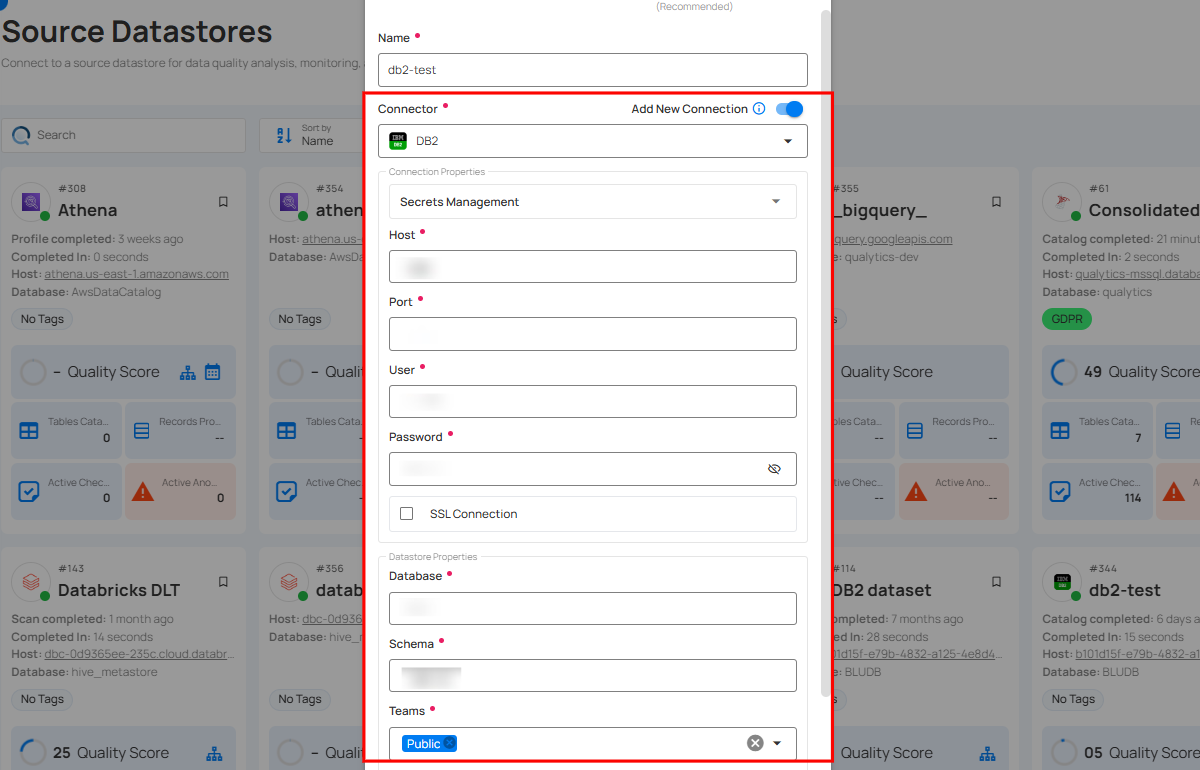

Step 2: Add connection details for your selected enrichment datastore connector.

modal-window

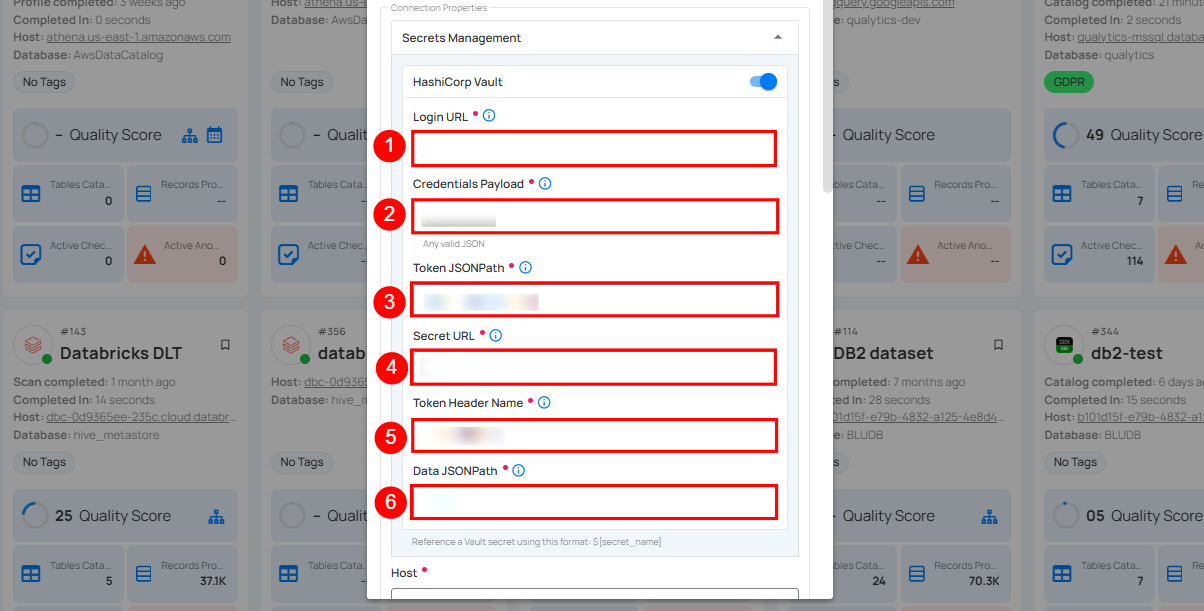

Secrets Management: This is an optional connection property that allows you to securely store and manage credentials by integrating with HashiCorp Vault and other secret management systems. Toggle it ON to enable Vault integration for managing secrets.

Note

Once the HashiCorp Vault is set up, use the ${key} format in Connection form to reference a Vault secret.

REF	FIELDS	ACTIONS
1.	Login URL	Enter the URL used to authenticate with HashiCorp Vault.
2.	Credentials Payload	Input a valid JSON containing credentials for Vault authentication.
3.	Token JSONPath	Specify the JSONPath to retrieve the client authentication token from the response (e.g., $.auth.client_token).
4.	Secret URL	Enter the URL where the secret is stored in Vault.
5.	Token Header Name	Set the header name used for the authentication token (e.g., X-Vault-Token).
6.	Data JSONPath	Specify the JSONPath to retrieve the secret data (e.g., $.data).

secret-management

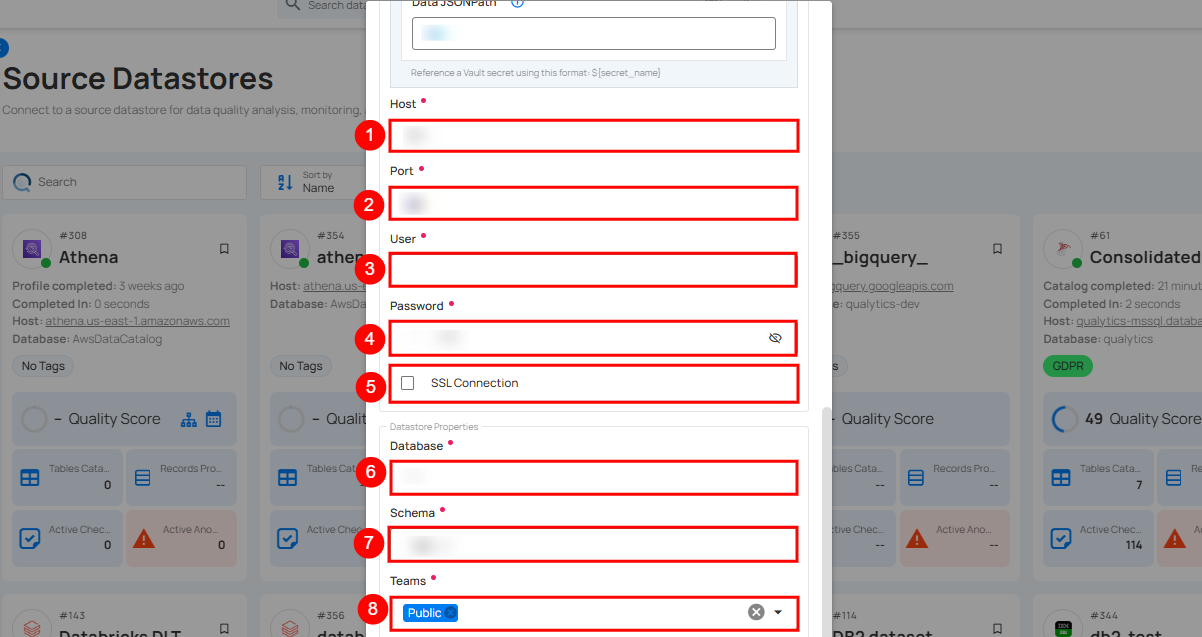

Step 3: The configuration form, requesting credential details after selecting the enrichment datastore connector.

enrichment-datastore-explain

REF.	FIELDS	ACTIONS
1.	Host	Get Hostname from your DB2 account and add it to this field.
2.	Port	Specify the Port number.
3.	User	Enter the User to connect.
4.	Password	Enter the password to connect to the database.
5.	SSL Connection	Enable the SSL connection to ensure secure communication between Qualytics and the selected datastore.
6.	Database	Specify the database name.
7.	Schema	Define the schema within the database that should be used.
8.	Teams	Select one or more teams from the dropdown to associate with this datastore.

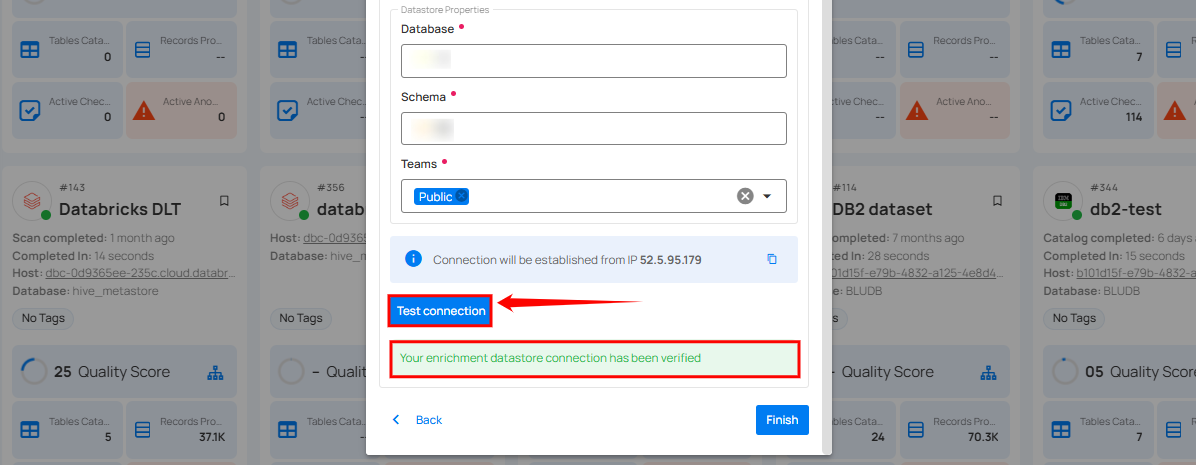

Step 4: Click on the Test Connection button to verify the selected enrichment datastore connection. If the connection is verified, a flash message will indicate that the connection with the enrichment datastore has been successfully verified.

test-connection-for-enrichment-datastore

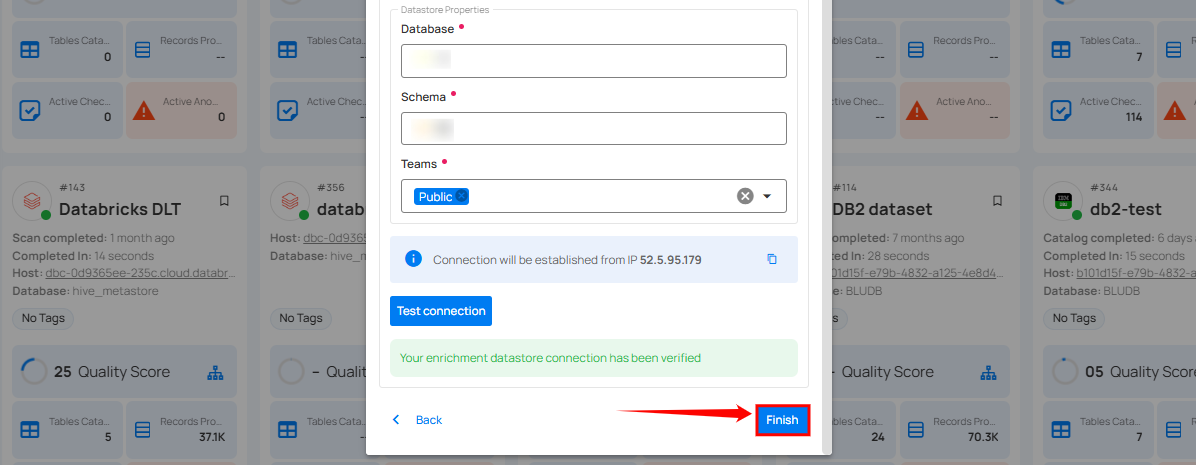

Step 5: Click on the Finish button to complete the configuration process.

finish-configuration

When the configuration process is finished, a modal will display a success message indicating that your datastore has been successfully added.

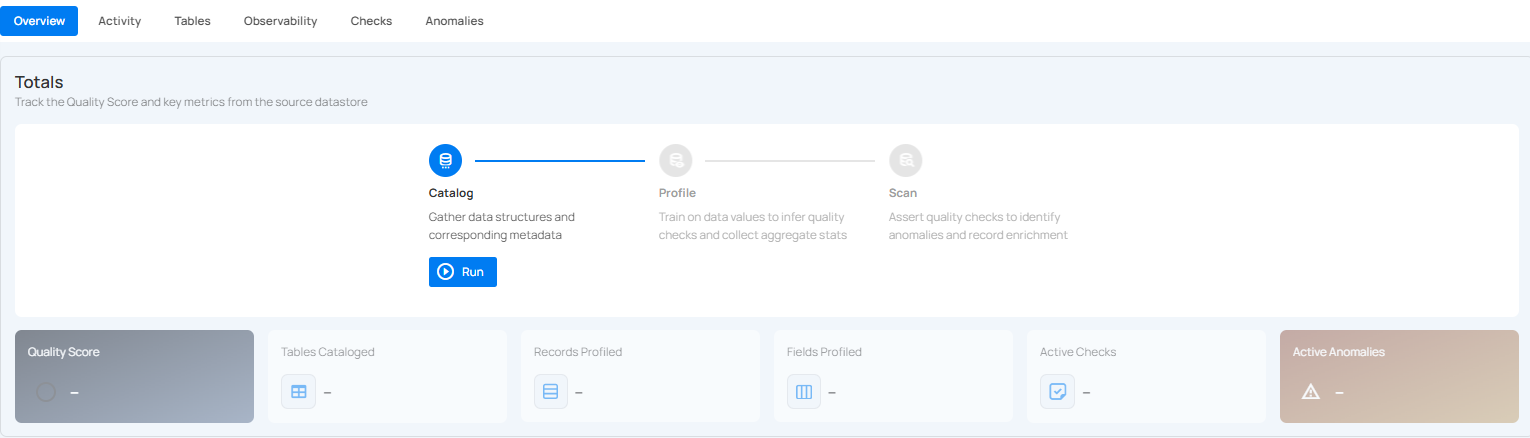

Step 6: Close the Success dialog and the page will automatically redirect you to the Source Datastore Details page where you can perform data operations on your configured source datastore.

data-operation-page

Option II: Use an Existing Connection

If the Use enrichment datastore option is selected from the caret button, you will be prompted to configure the datastore using existing connection details.

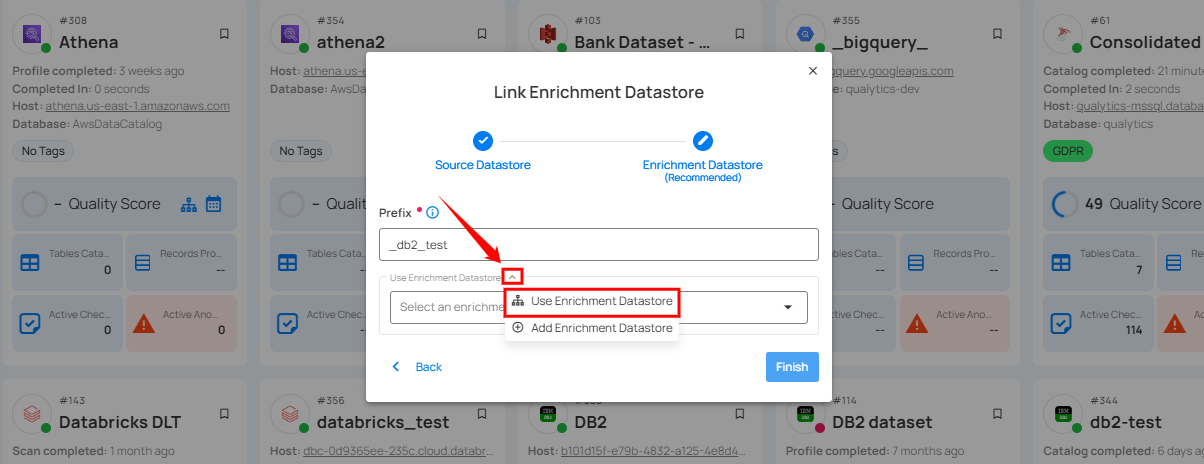

Step 1: Click on the caret button and select Use Enrichment Datastore.

use-enrichment-datastore

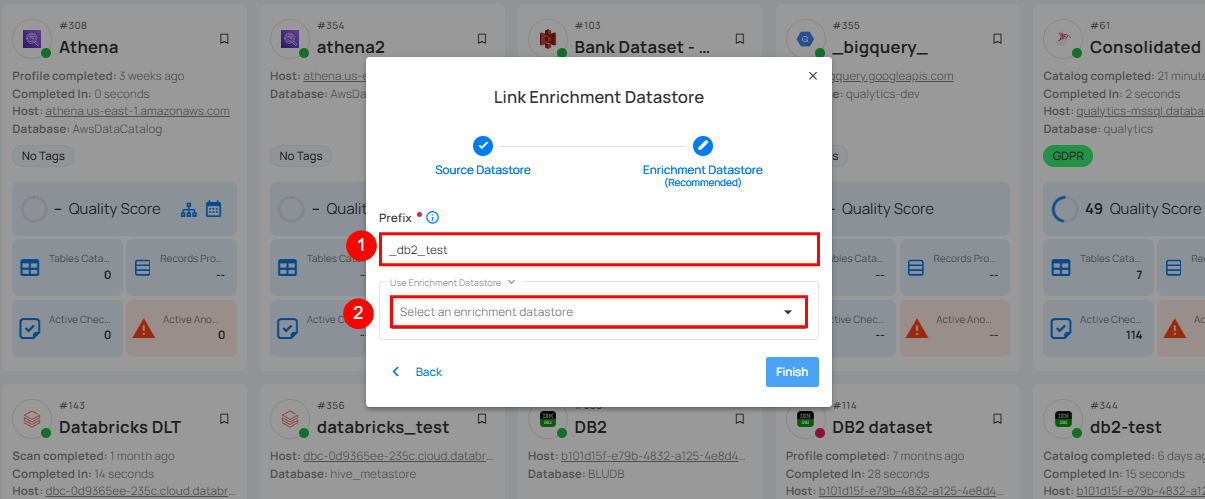

Step 2: A modal window Link Enrichment Datastore will appear. Add a prefix name and select an existing enrichment datastore from the dropdown list.

select-existing-enrichment-datastore

REF.	FIELDS	ACTIONS
1	Prefix (Required)	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2	Enrichment Datastore	Select an enrichment datastore from the dropdown list.

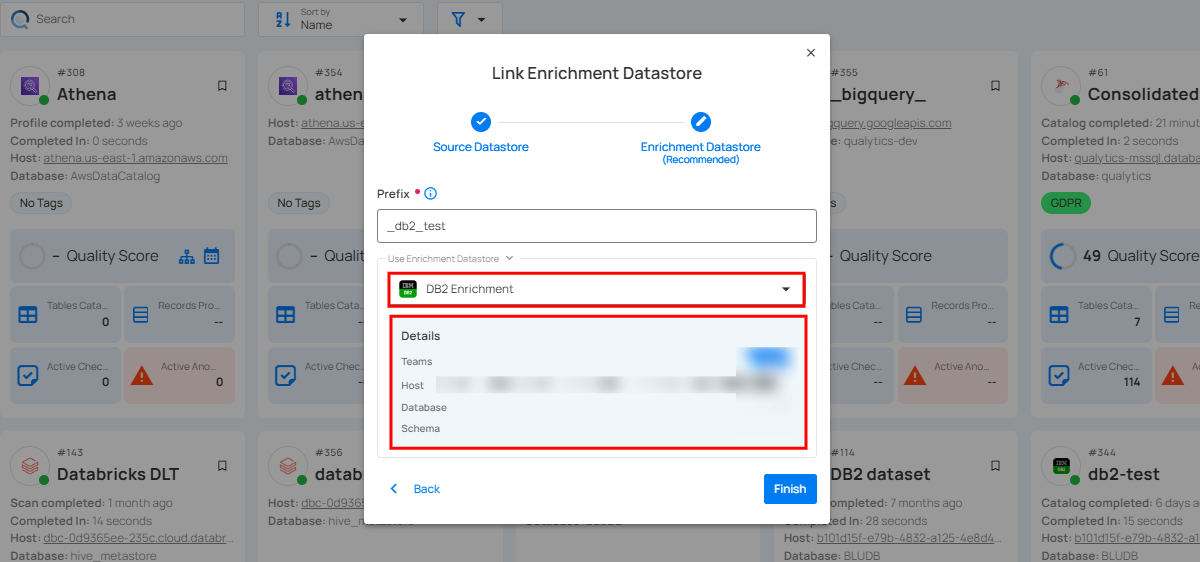

Step 3: After selecting an existing enrichment datastore connection, you will view the following details related to the selected enrichment:

Teams: The team associated with managing the enrichment datastore is based on the role of public or private. Example- Marked as Public means that this datastore is accessible to all the users.
Host: This is the server address where the DB2 instance is hosted. It is the endpoint used to connect to the DB2 environment.
Database: Refers to the specific database within the DB2 environment where the data is stored.
Schema: The schema used in the enrichment datastore. The schema is a logical grouping of database objects (tables, views, etc.). Each schema belongs to a single database.

use-existing-enrichment-datastore

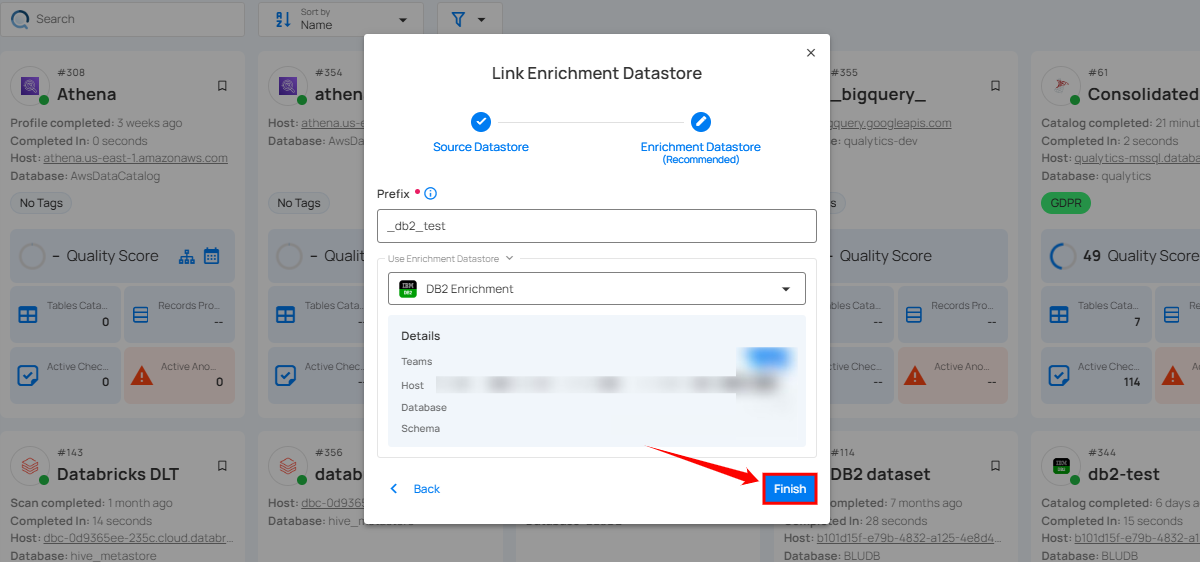

Step 4: Click on the Finish button to complete the configuration process for the existing enrichment datastore.

finish-configuration-for-existing-enrichment-datastore

When the configuration process is finished, a modal will display a success message indicating that your data has been successfully added.

Close the success message and you will be automatically redirected to the Source Datastore Details page where you can perform data operations on your configured source datastore.

data-operation-page

API Payload Examples

This section provides detailed examples of API payloads to guide you through the process of creating and managing datastores using Qualytics API. Each example includes endpoint details, sample payloads, and instructions on how to replace placeholder values with actual data relevant to your setup.

Creating a Source Datastore

This section provides sample payloads for creating a DB2 datastore. Replace the placeholder values with actual data relevant to your setup.

Endpoint: /api/datastores (post)

Create a Source Datastore with a new ConnectionCreate a Source Datastore with an existing ConnectionCreate a Source Datastore using the CLI

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "db2_database",
    "schema": "db2_schema",
    "enrich_only": false,
    "trigger_catalog": true,
    "connection": {
        "name": "your_connection_name",
        "type": "db2",
        "host": "db2_host",
        "port": "db2_port",
        "username": "db2_username",
        "password": "db2_password",
        "parameters": {
            "ssl": true
        }
    }
}

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "db2_database",
    "schema": "db2_schema",
    "enrich_only": false,
    "trigger_catalog": true,
    "connection_id": connection_id
}

# Step 1: Create a Connection
qualytics connections create \
    --type db2 \
    --name "your_connection_name" \
    --host ${DB2_HOST} \
    --port 50000 \
    --username ${DB2_USER} \
    --password ${DB2_PASSWORD}

# Step 2: Create a Source Datastore
qualytics datastores create \
    --name "your_datastore_name" \
    --connection-name "your_connection_name" \
    --database DB2 \
    --schema DB2INST1

Creating an Enrichment Datastore

This section provides sample payloads for creating an enrichment datastore. Replace the placeholder values with actual data relevant to your setup.

Endpoint: /api/datastores (post)

Create an Enrichment Datastore with a new ConnectionCreate an Enrichment Datastore with an existing ConnectionCreate an Enrichment Datastore using the CLI

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "db2_database",
    "schema": "db2_enrichment_schema",
    "enrich_only": true,
    "connection": {
        "name": "your_connection_name",
        "type": "db2",
        "host": "db2_host",
        "port": "db2_port",
        "username": "db2_username",
        "password": "db2_password",
        "parameters": {
            "ssl": true
        }
    }
}

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "db2_database",
    "schema": "db2_enrichment_schema",
    "enrich_only": true,
    "connection_id": connection_id
}

# Step 1: Create a Connection
qualytics connections create \
    --type db2 \
    --name "your_connection_name" \
    --host ${DB2_HOST} \
    --port 50000 \
    --username ${DB2_USER} \
    --password ${DB2_PASSWORD}

# Step 2: Create an Enrichment Datastore
qualytics datastores create \
    --name "your_datastore_name" \
    --connection-name "your_connection_name" \
    --database DB2 \
    --schema your_enrichment_schema \
    --enrichment-only

Link an Enrichment Datastore to a Source Datastore

Use the provided endpoint to link an enrichment datastore to a source datastore:

Endpoint Details: /api/datastores/{datastore-id}/enrichment/{enrichment-id} (patch)
