Databricks

Adding and configuring a Databricks connection within Qualytics empowers the platform to build a symbolic link with your database to perform operations like data discovery, visualization, reporting, syncing, profiling, scanning, anomaly surveillance, and more.

This documentation provides a step-by-step guide on how to add Databricks as both a source and enrichment datastore in Qualytics. It covers the entire process, from initial connection setup to testing and finalizing the configuration.

By following these instructions, enterprises can ensure their Databricks environment is properly connected with Qualytics, unlocking the platform's potential to help you proactively manage your full data quality lifecycle.

Let's get started 🚀

Databricks Setup Guide

This guide provides a comprehensive walkthrough for setting up Databricks. It highlights the distinction between SQL Warehouses and All-Purpose Compute, the functionality of node pools, and the enhancements they offer.

Additionally, it details the process for attaching compute resources to node pools and explains the minimum requirements for effective operation.

Understanding SQL Warehouses and All-Purpose Compute

SQL Warehouses (Serverless)

SQL Warehouses (Serverless) in Databricks utilize serverless SQL endpoints for running SQL queries.

REF.	ATTRIBUTE	DESCRIPTION
1.	Cost-effectiveness	Serverless SQL endpoints allow you to pay only for the queries you execute, without the need to provision or manage dedicated infrastructure, making it more cost-effective for ad-hoc or sporadic queries.
2.	Scalability	Serverless architectures automatically scale resources based on demand, ensuring optimal performance for varying workloads.
3.	Simplified Management	With serverless SQL endpoints, you don't need to manage clusters or infrastructure, reducing operational overhead.
4.	Minimum Requirements	The minimum requirements for using SQL Warehouse with serverless typically include access to a Databricks workspace and appropriate permissions to create and run SQL queries.

All-Purpose Compute

All-purpose compute in Databricks refers to clusters that are not optimized for specific tasks. While they offer flexibility, they may not provide the best performance or cost-effectiveness for certain workloads.

REF.	ATTRIBUTE	DESCRIPTION
1.	Slow Spin-up Time	All-purpose compute clusters may take longer to spin up compared to specialized clusters, resulting in delays before processing can begin.
2.	Timeout Connections	Due to longer spin-up times, there's a risk of timeout connections, especially for applications or services that expect quick responses.

Node Pool and Its Usage

A node pool in Databricks is a set of homogeneous virtual machines (VMs) within a cluster. It allows you to have a fixed set of instances dedicated to specific tasks, ensuring consistent performance and resource isolation.

REF.	ATTRIBUTE	DESCRIPTION
1.	Resource Isolation	Node pools provide resource isolation, allowing different workloads or applications to run without impacting each other's performance.
2.	Optimized Performance	By dedicating specific nodes to particular tasks, you can optimize performance for those workloads.
3.	Cost-effectiveness	Node pools can be more cost-effective than using all-purpose compute for certain workloads, as you can scale resources according to the specific requirements of each task.

Improving All-Purpose Compute with Node Pools

To improve the performance of all-purpose compute using node pools, you can follow these steps:

REF.	ATTRIBUTE	DESCRIPTION
1.	Define Workload-Specific Node Pools	Identify the specific tasks or workloads that require optimized performance and create dedicated node pools for them.
2.	Specify Minimum Requirements	Determine the minimum resources (such as CPU, memory, and disk) required for each workload and configure the node pools accordingly.
3.	Monitor and Adjust	Continuously monitor the performance of your node pools and adjust resource allocations as needed to ensure optimal performance.

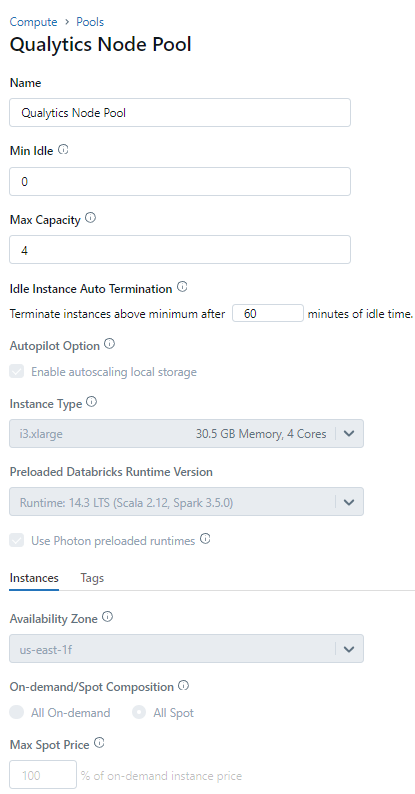

Step 1: Configure details for Qualytics Node Pool.

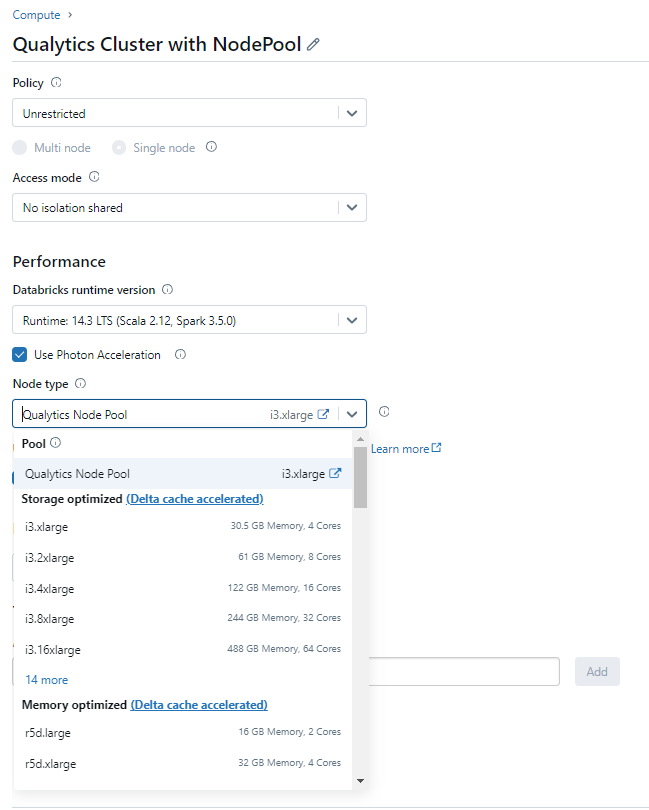

Step 2: Attach Compute details with the Node Pool.

Databricks Privileges and Permissions

Qualytics connects to Databricks via JDBC using either a Personal Access Token (PAT) or OAuth M2M authentication. It uses the Hive metastore or Unity Catalog metadata APIs to discover catalogs, schemas, tables, columns, and partition information.

Minimum Databricks Permissions (Source Datastore)

Permission	Purpose
USAGE ON CATALOG <catalog_name>	Access the catalog
USAGE ON SCHEMA <catalog_name>.<schema_name>	Access objects within the schema
SELECT ON SCHEMA <catalog_name>.<schema_name>	Read data from all tables and views for profiling and scanning
CAN USE on the SQL Warehouse or Cluster	Execute queries on the compute resource

Additional Permissions for Enrichment Datastore

When using Databricks as an enrichment datastore, the following additional permissions are required for Qualytics to write metadata tables (e.g., _qualytics_*):

Permission	Purpose
CREATE TABLE ON SCHEMA <catalog_name>.<schema_name>	Create enrichment tables (_qualytics_*)
MODIFY ON SCHEMA <catalog_name>.<schema_name>	Write, update, and delete data in enrichment tables

Example: Source Datastore Permissions (Read-Only)

Replace <catalog_name>, <schema_name>, and <user_or_group> with your actual values.

-- Grant catalog and schema access
GRANT USAGE ON CATALOG <catalog_name> TO <user_or_group>;
GRANT USAGE ON SCHEMA <catalog_name>.<schema_name> TO <user_or_group>;

-- Grant read access to all tables in the schema
GRANT SELECT ON SCHEMA <catalog_name>.<schema_name> TO <user_or_group>;

Example: Enrichment Datastore Permissions (Read-Write)

-- Grant catalog and schema access
GRANT USAGE ON CATALOG <catalog_name> TO <user_or_group>;
GRANT USAGE ON SCHEMA <catalog_name>.<schema_name> TO <user_or_group>;

-- Grant read-write access and table creation
GRANT SELECT, MODIFY ON SCHEMA <catalog_name>.<schema_name> TO <user_or_group>;
GRANT CREATE TABLE ON SCHEMA <catalog_name>.<schema_name> TO <user_or_group>;

Note

The Databricks user or service principal must also have CAN USE permission on the compute resource (SQL Warehouse or All-Purpose Cluster) used for the connection. Without compute access, queries cannot be executed regardless of data permissions.

Troubleshooting Common Errors

Error	Likely Cause	Fix
INVALID_CREDENTIALS	The Personal Access Token (PAT) is invalid, expired, or revoked	Generate a new PAT from User Settings > Developer > Access Tokens in Databricks
User does not have USAGE permission	The user lacks USAGE on the catalog or schema	Run GRANT USAGE ON CATALOG <catalog> TO <user> and GRANT USAGE ON SCHEMA <catalog>.<schema> TO <user>
User does not have SELECT permission	The user lacks SELECT on the schema or specific tables	Run GRANT SELECT ON SCHEMA <catalog>.<schema> TO <user>
Cluster is not running	The All-Purpose Cluster is stopped and AUTO_RESUME is not enabled	Start the cluster manually or switch to a SQL Warehouse with auto-resume
HTTP Path is invalid	The HTTP Path in the connection form does not match the warehouse or cluster	Copy the correct HTTP Path from SQL Warehouses > Connection Details or Compute > JDBC/ODBC

Detailed Troubleshooting Notes

Authentication Errors

The error INVALID_CREDENTIALS indicates that the Personal Access Token (PAT) or OAuth credentials are invalid.

Common causes:

• Expired PAT — Personal Access Tokens have a configurable expiration date. The token may have expired since the connection was created.
• Revoked PAT — the token was manually revoked from the Databricks workspace.
• Wrong workspace — the PAT was generated in a different Databricks workspace than the one being connected to.
• OAuth secret expired — when using OAuth M2M, the Service Principal's secret has expired.

Note

Databricks PATs are workspace-scoped. A token generated in workspace A cannot be used to connect to workspace B.

Permission Errors

The error User does not have USAGE permission or User does not have SELECT permission means the user authenticated successfully but lacks Unity Catalog grants.

Common causes:

• Missing USAGE on catalog — the user cannot access the catalog. This is the most common issue — USAGE must be granted on both the catalog and the schema.
• Missing SELECT on schema — the user has catalog access but cannot read tables in the specific schema.
• Unity Catalog not enabled — the workspace uses the legacy Hive metastore instead of Unity Catalog, and permissions are managed differently.

Compute Errors

The error Cluster is not running or HTTP Path is invalid indicates a problem with the compute resource, not with data permissions.

Common causes:

• Cluster stopped — All-Purpose Clusters do not auto-resume by default. The cluster must be started manually or switched to a SQL Warehouse with auto-resume.
• Wrong HTTP Path — the HTTP Path was copied incorrectly or the warehouse/cluster has been recreated with a new path.
• No compute access — the user lacks CAN USE permission on the SQL Warehouse or cluster.

Tip

Start by confirming credentials are valid (authentication errors), then verify Unity Catalog permissions (permission errors), and finally check compute resource availability (compute errors).

Retrieve the Connection Details

This section explains how to retrieve the connection details that you need to connect to Databricks.

Credentials to Connect with Qualytics

To configure Databricks, you need the following credentials:

REF.	FIELDS	ACTIONS
1.	Host (Required)	Get Hostname from your Databricks account and add it to this field.
2.	HTTP Path (Required)	Add HTTP Path (web address) to fetch data from your Databricks account.
3.	Catalog (Required)	Add a Catalog to fetch data structures and metadata from Databricks.
4.	Database (Required)	Specify the database name to be accessed.
5.	Personal Access Token (Required)	Generate a Personal Access Token from your Databricks account and add it for authentication.

Note

Databricks also supports OAuth M2M (Machine-to-Machine) authentication as an alternative to Personal Access Tokens. To use OAuth M2M, provide the Service Principal Application ID and OAuth Secret instead of a Personal Access Token. This method is recommended for production environments as it does not depend on individual user tokens.

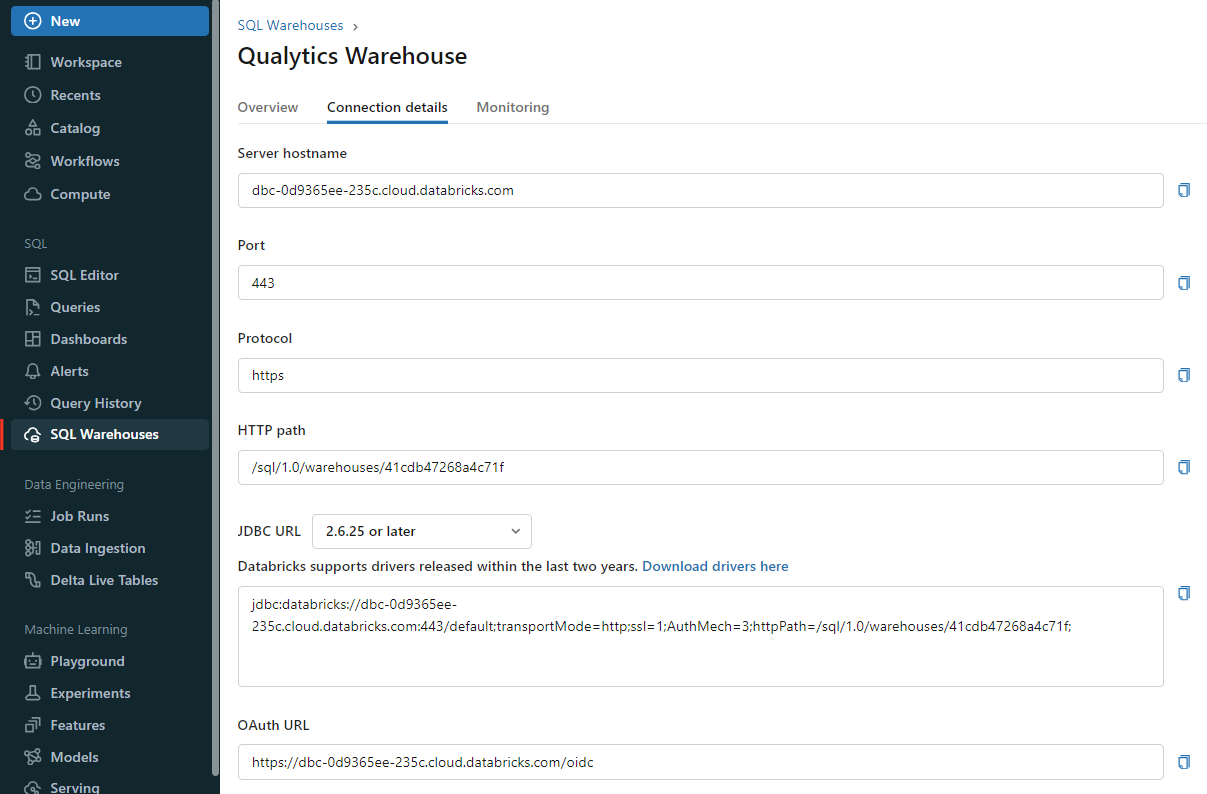

Get Connection Details for the SQL Warehouse

Follow the given steps to get the connection details for the SQL warehouse:

1. Click on the SQL Warehouses in the sidebar.
2. Choose a warehouse to connect to.
3. Navigate to the Connection Details tab.
4. Copy the connection details.

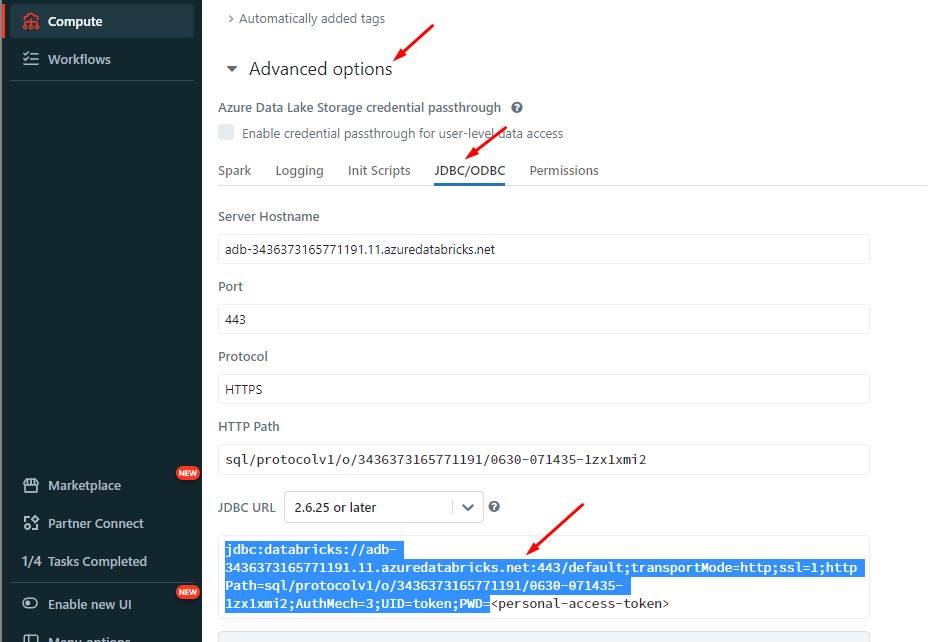

Get Connection Details for the Cluster

Follow the given steps to get the connection details for the cluster:

1. Click on the Compute in the sidebar.
2. Choose a cluster to connect to.
3. Navigate to the Advanced Options.
4. Click on the JDBC/ODBC tab.
5. Copy the connection details.

Get the Access Token

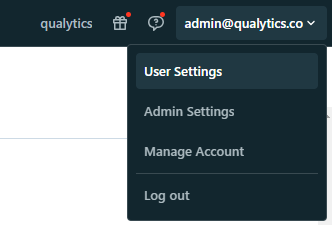

Step 1: In your Databricks workspace, click your Databricks username in the top bar, and then select User Settings from the dropdown menu.

Note

Refer to the Databricks Official Docs to generate the Access Token.

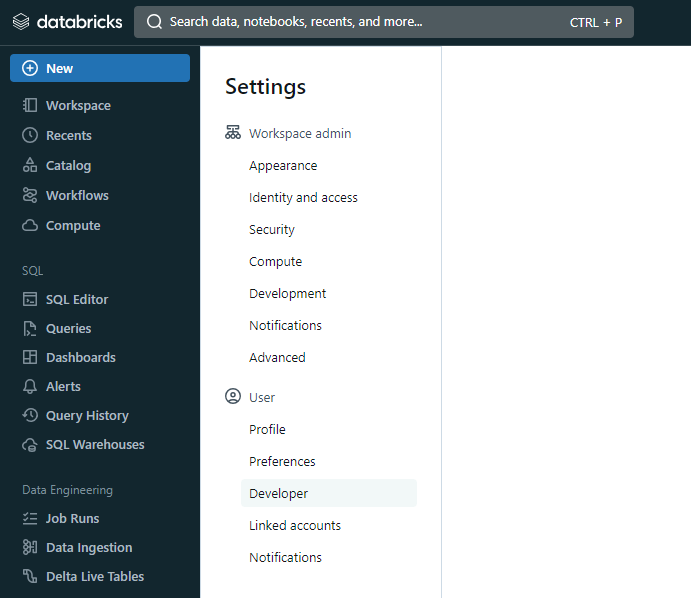

Step 2: In the Settings page, select the Developer option in the User section.

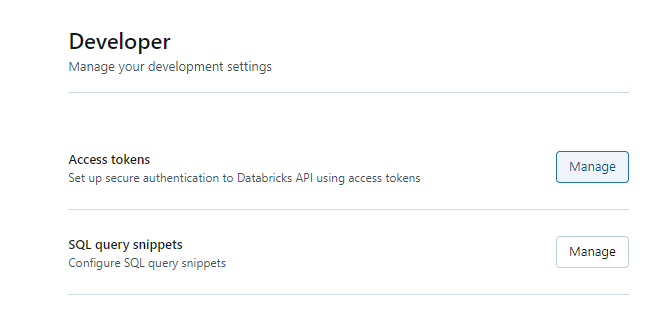

Step 3: In the Developer page, click on Manage in Access Tokens.

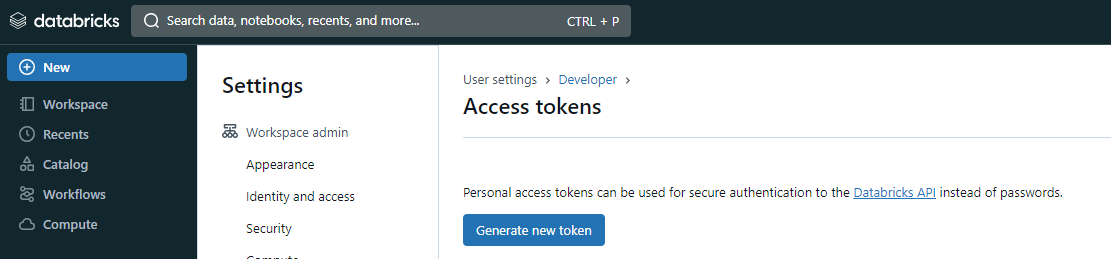

Step 4: In the Access Tokens page, click on the Generate new token button.

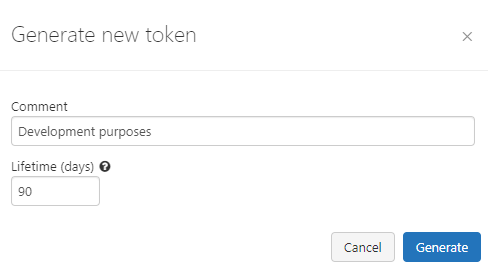

Step 5: You will see a modal to add a description and validation time (in days) for the token.

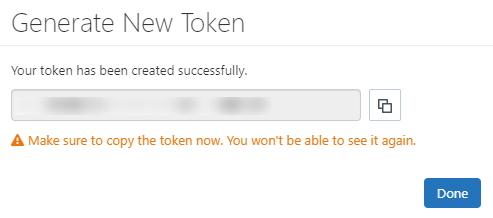

Step 6: After adding the contents, click on Generate, and it will show the token.

Warning

Before closing the modal window by clicking on the Done button, ensure the Personal Access Token is saved to a secure location.

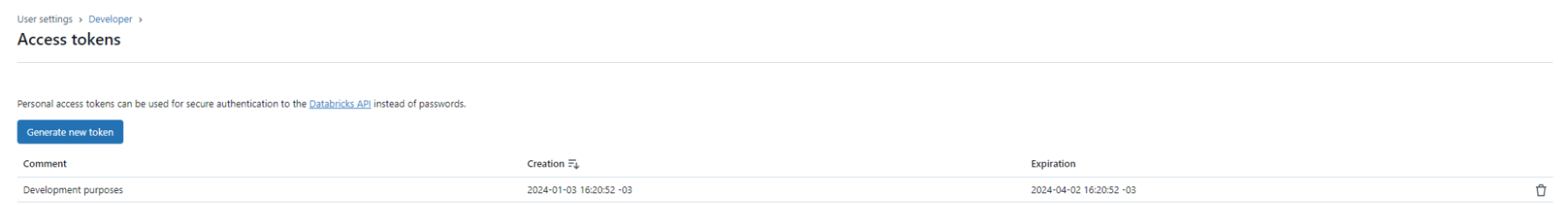

Step 7: You can see the new token on the Access Tokens page.

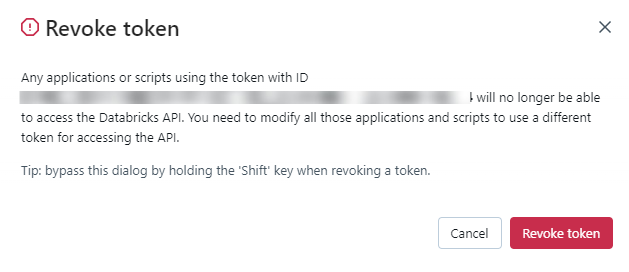

You can also revoke a token on the Access Tokens page by clicking on the Revoke token button.

Add a Source Datastore

A source datastore is a storage location used to connect to and access data from external sources. Databricks is an example of a source datastore, specifically a type of JDBC datastore that supports connectivity through the JDBC API. Configuring the JDBC datastore enables the Qualytics platform to access and perform operations on the data, thereby generating valuable insights.

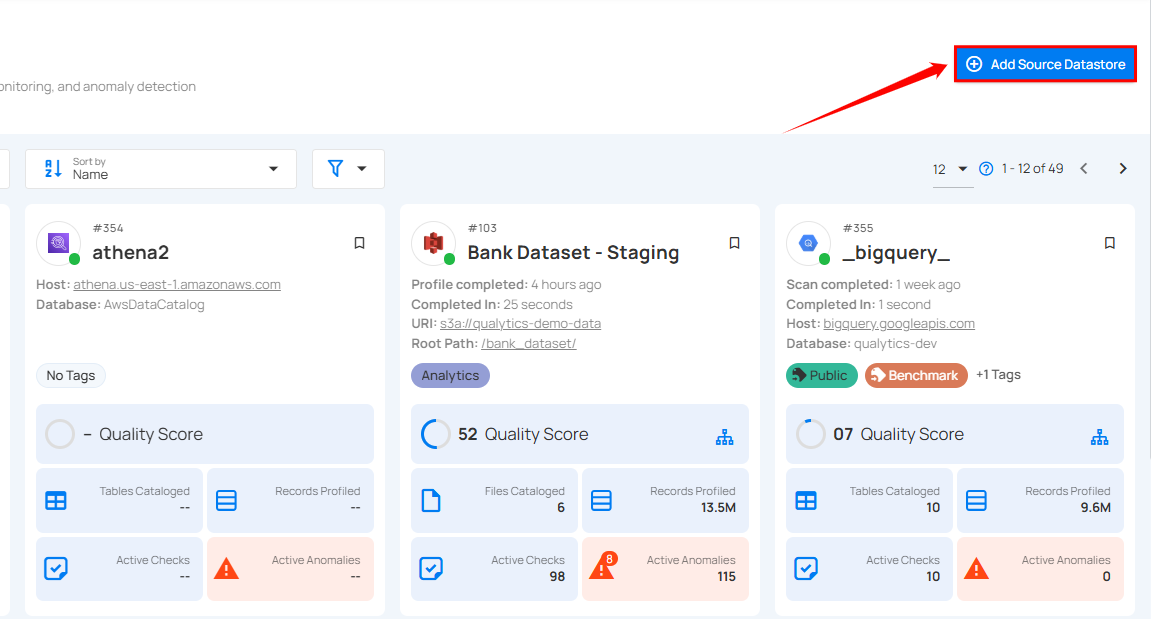

Step 1: Log in to your Qualytics account and click on the Add Source Datastore button located at the top-right corner of the interface.

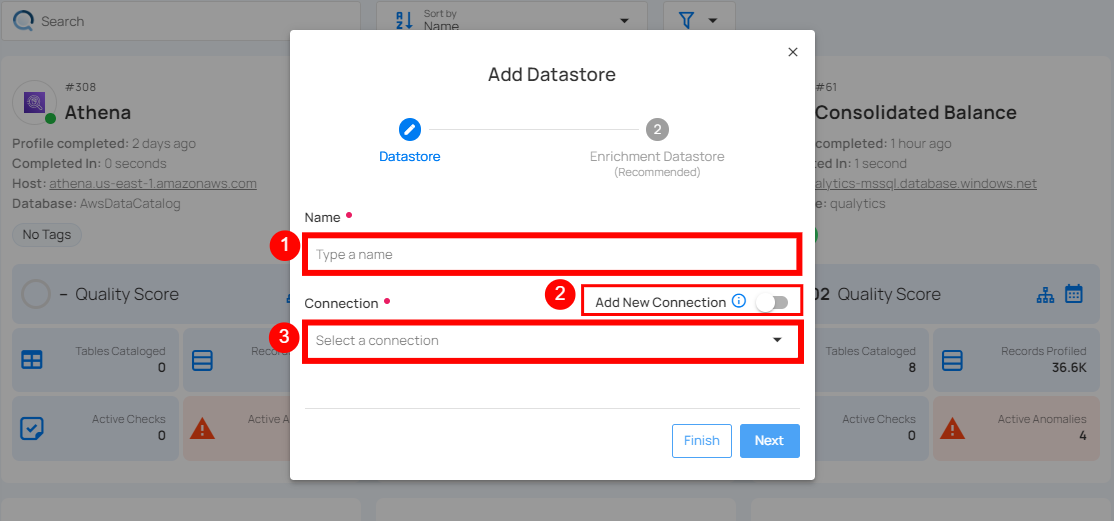

Step 2: A modal window - Add Datastore will appear, providing you with the options to connect a datastore.

REF.	FIELDS	ACTIONS
1.	Name (Required)	Specify the datastore name (e.g., This name will appear on the datastore cards).
2.	Toggle Button	Toggle ON to create a new source datastore from scratch, or toggle OFF to reuse credentials from an existing connection.
3.	Connector (Required)	Select Databricks from the dropdown list.

Option I: Create a Source Datastore with a new Connection

If the toggle for Add New Connection is turned on, then this will prompt you to add and configure the source datastore from scratch without using existing connection details.

Step 1: Select the Databricks connector from the dropdown list and add connection details such as Secrets Management, host, HTTP path, database, and personal access token.

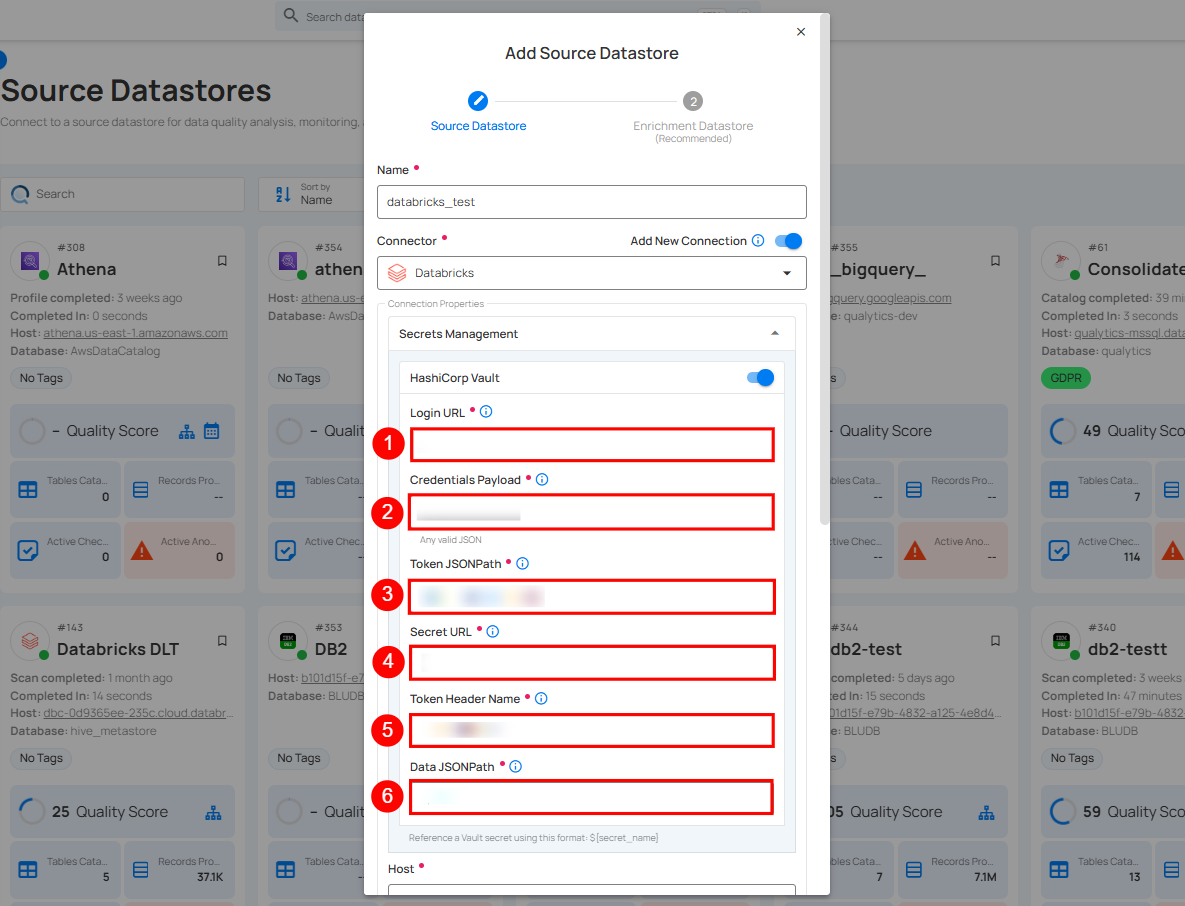

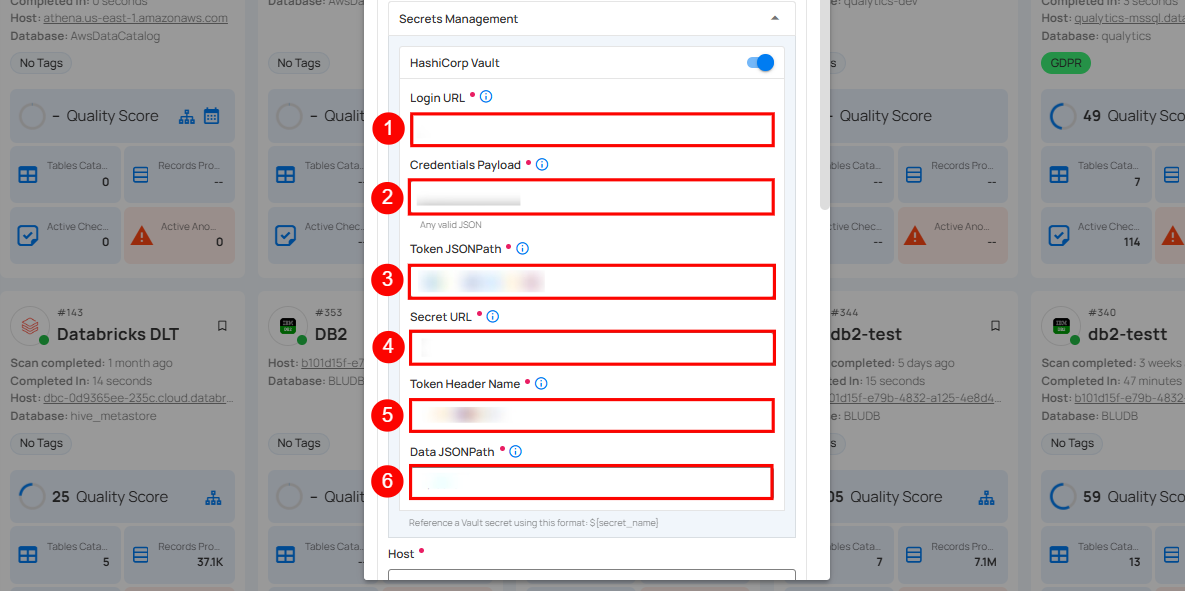

Secrets Management: This is an optional connection property that allows you to securely store and manage credentials by integrating with HashiCorp Vault and other secret management systems. Toggle it ON to enable Vault integration for managing secrets.

Note

After configuring HashiCorp Vault integration, you can use ${key} in any Connection property to reference a key from the configured Vault secret. Each time the Connection is initiated, the corresponding secret value will be retrieved dynamically.

REF.	FIELDS	ACTIONS
1.	Login URL	Enter the URL used to authenticate with HashiCorp Vault.
2.	Credentials Payload	Input a valid JSON containing credentials for Vault authentication.
3.	Token JSONPath	Specify the JSONPath to retrieve the client authentication token from the response (e.g., $.auth.client_token).
4.	Secret URL	Enter the URL where the secret is stored in Vault.
5.	Token Header Name	Set the header name used for the authentication token (e.g., X-Vault-Token).
6.	Data JSONPath	Specify the JSONPath to retrieve the secret data (e.g., $.data).

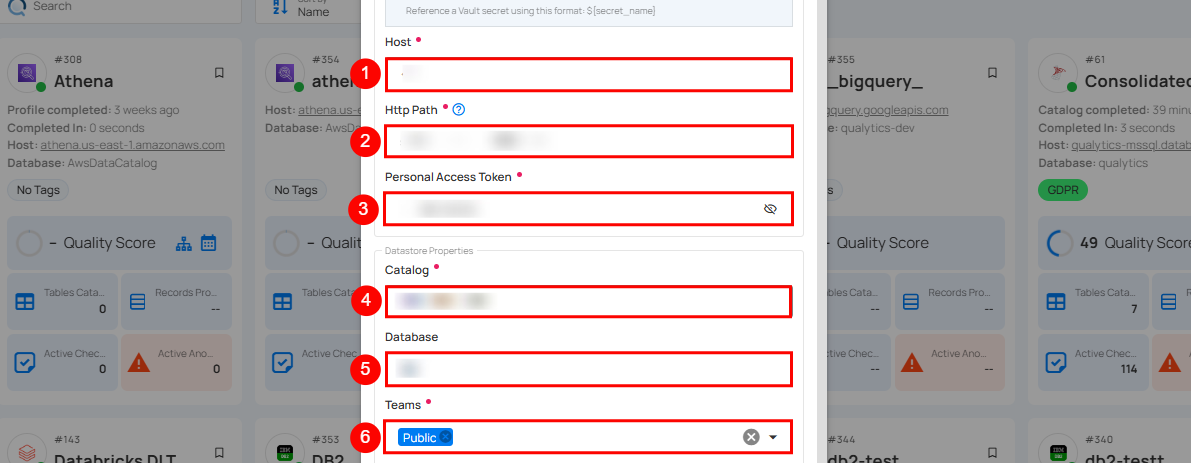

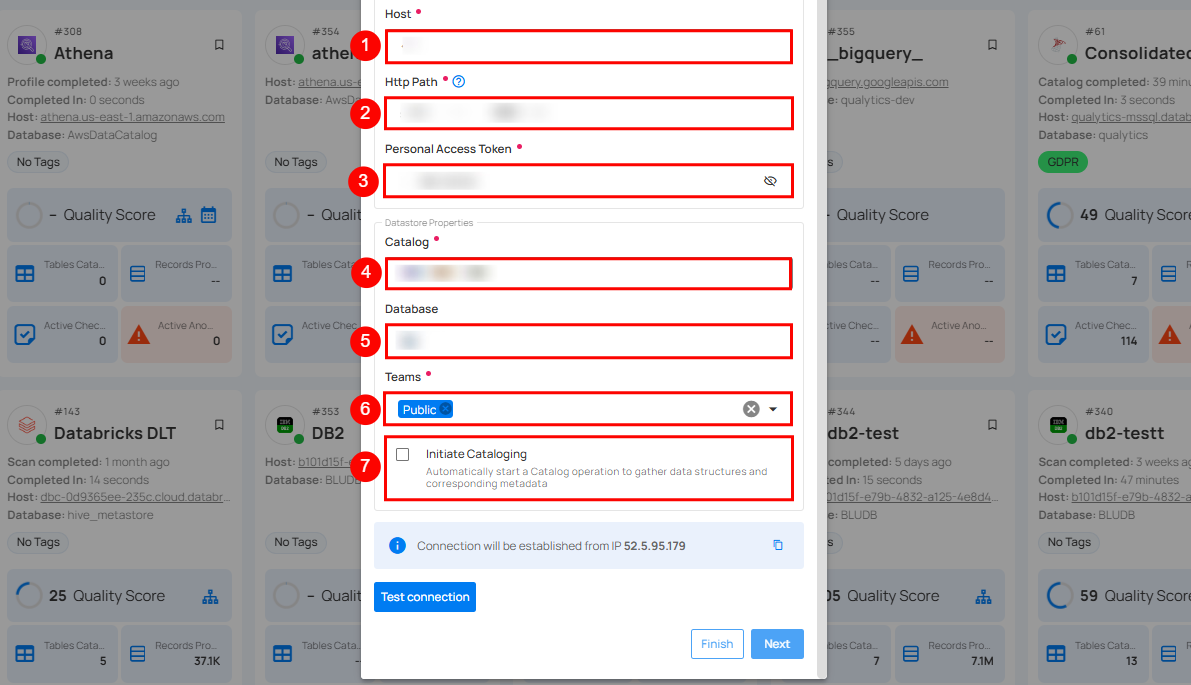

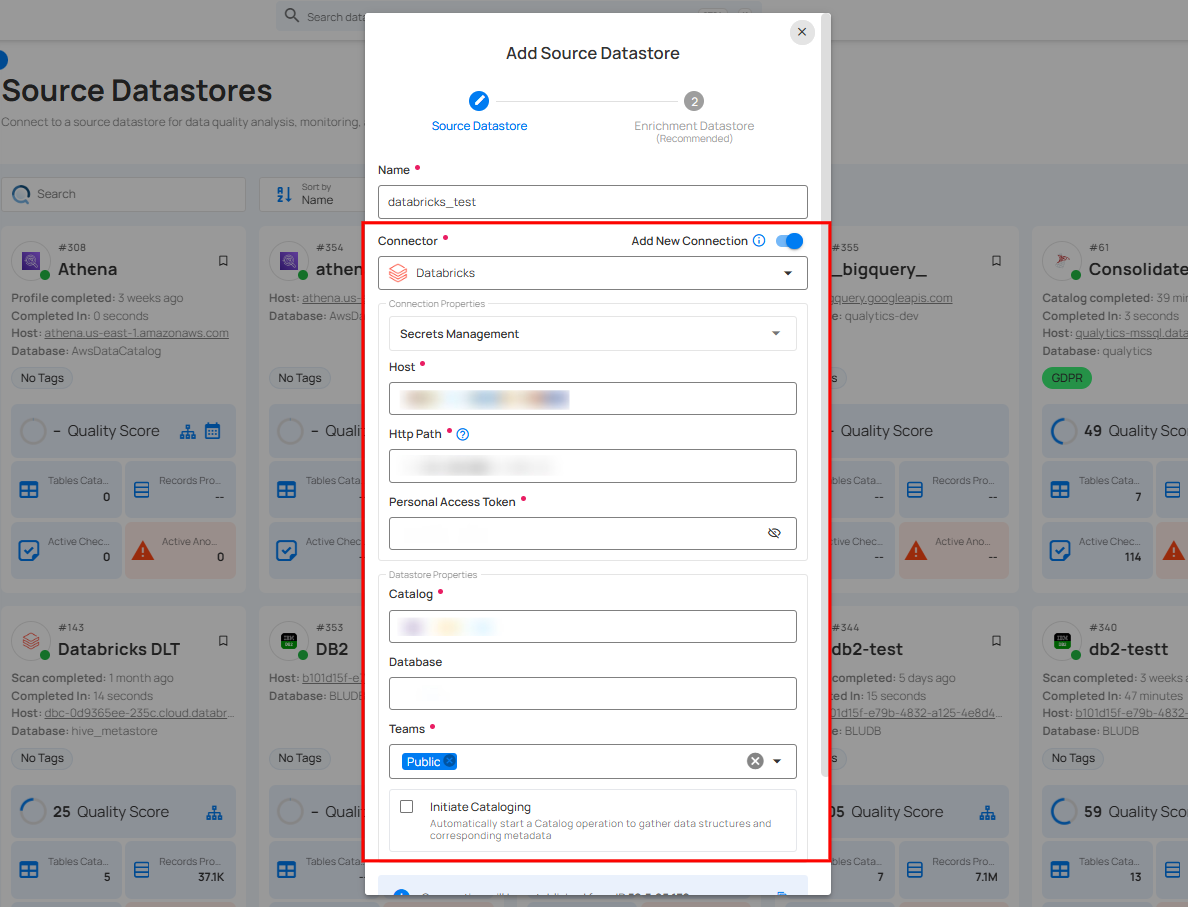

Step 2: The configuration form will expand, requesting credential details before establishing the connection.

REF.	FIELD	ACTIONS
1.	Host (Required)	Get the hostname from your Databricks account and add it to this field.
2.	HTTP Path (Required)	Add the HTTP Path (web address) to fetch data from your Databricks account.
3.	Personal Access Token (Required)	Generate a Personal Access Token from your Databricks account and add it for authentication.
4.	Catalog (Required)	Add a Catalog to fetch data structures and metadata from the Databricks.
5.	Database (Optional)	Specify the database name to be accessed.
6.	Teams (Required)	Select one or more teams from the dropdown to associate with this source datastore.
7.	Initiate Sync (Optional)	Tick the checkbox to automatically perform sync operation on the configured source datastore to detect new, changed, or removed containers and fields.

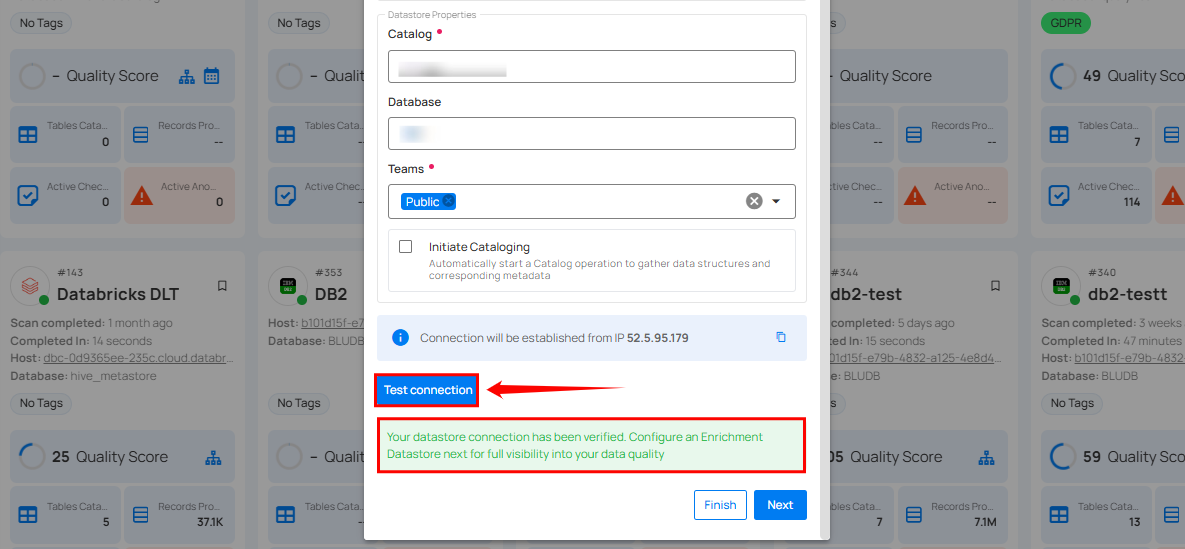

Step 3: After adding the source datastore details, click on the Test Connection button to check and verify its connection.

If the credentials and provided details are verified, a success message will be displayed indicating that the connection has been verified.

Option II: Use an Existing Connection

If the toggle for Add New Connection is turned off, then this will prompt you to configure the source datastore using the existing connection details.

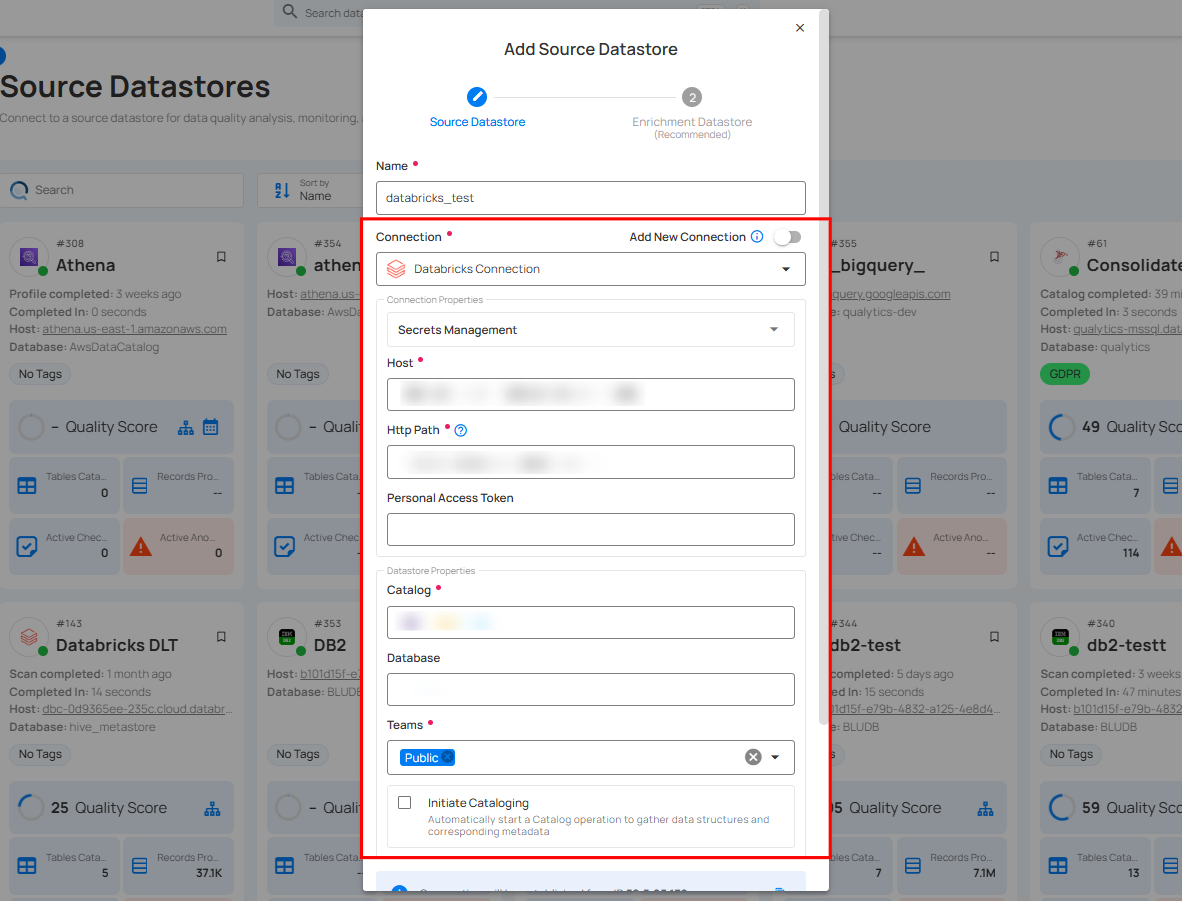

Step 1: Select a connection to reuse existing credentials.

Note

If you are using existing credentials, you can only edit the details such as Catalog, Database, Teams, and Initiate Sync.

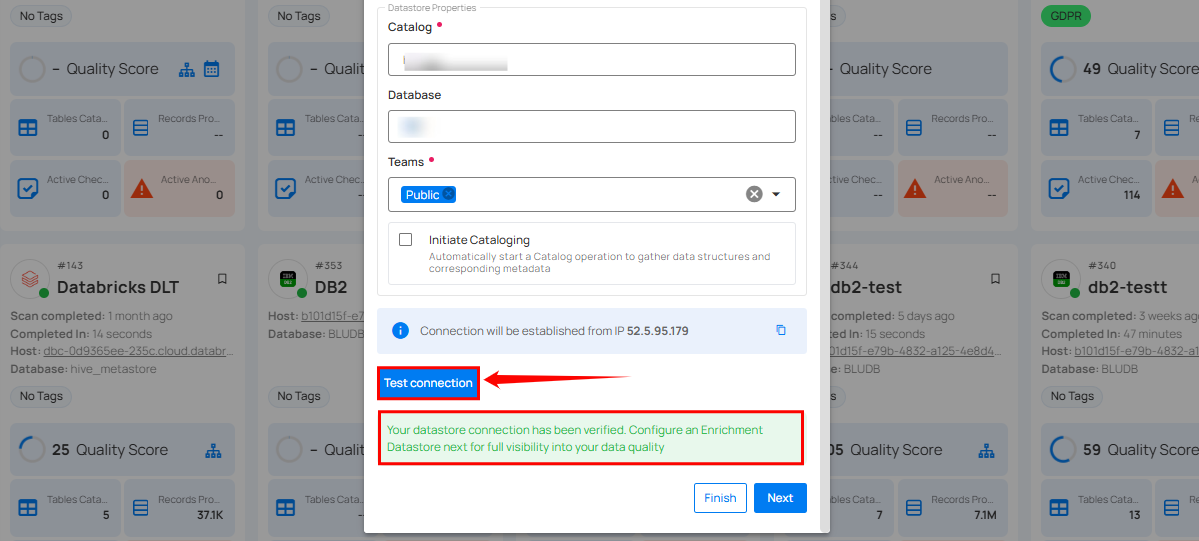

Step 2: Click on the Test Connection button to verify the existing connection details. If connection details are verified, a success message will be displayed.

Note

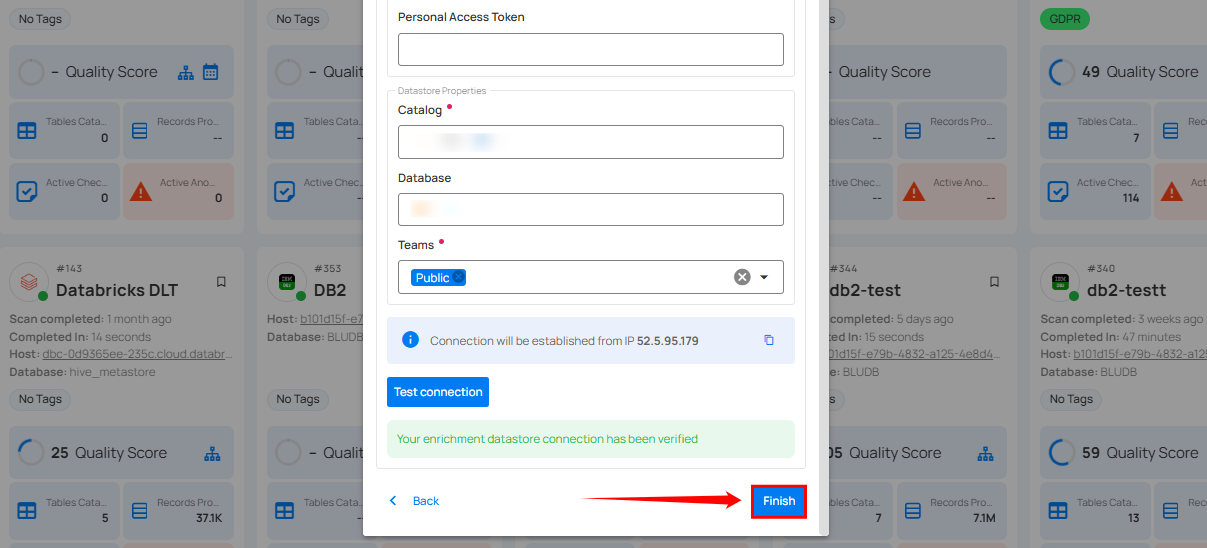

Clicking on the Finish button will create the source datastore and bypass the enrichment datastore configuration step.

Tip

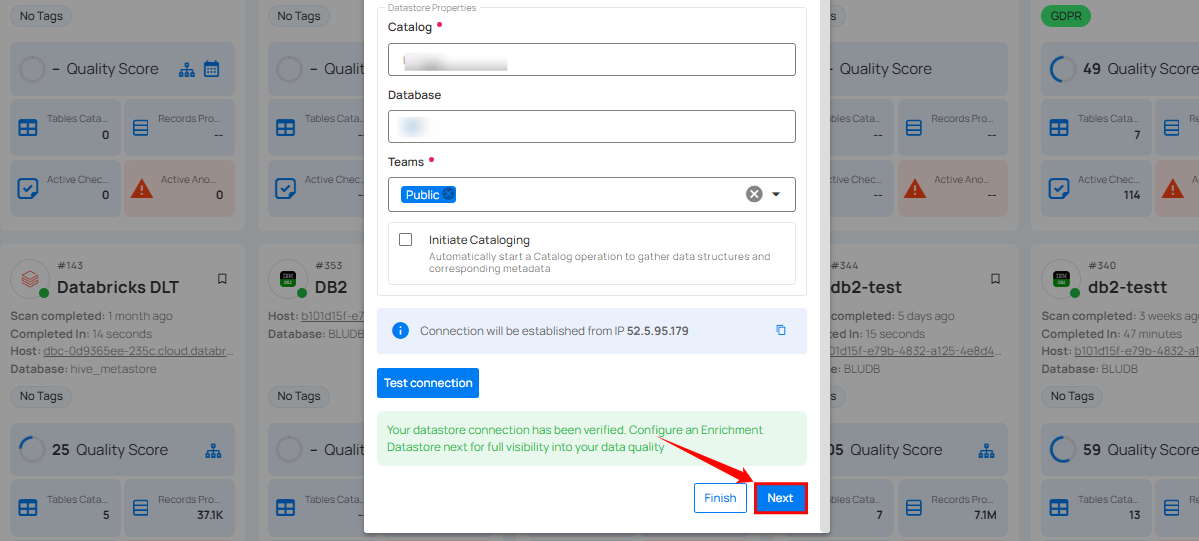

It is recommended to click on the Next button, which will take you to the enrichment datastore configuration page.

Add Enrichment Datastore

Once you have successfully tested and verified your source datastore connection, you have the option to add the enrichment datastore (recommended). The enrichment datastore is used to store the analyzed results, including any anomalies and additional metadata in tables. This setup provides full visibility into your data quality, helping you manage and improve it effectively.

Step 1: Whether you have added a source datastore by creating a new datastore connection or using an existing connection, click on the Next button to start adding the Enrichment Datastore.

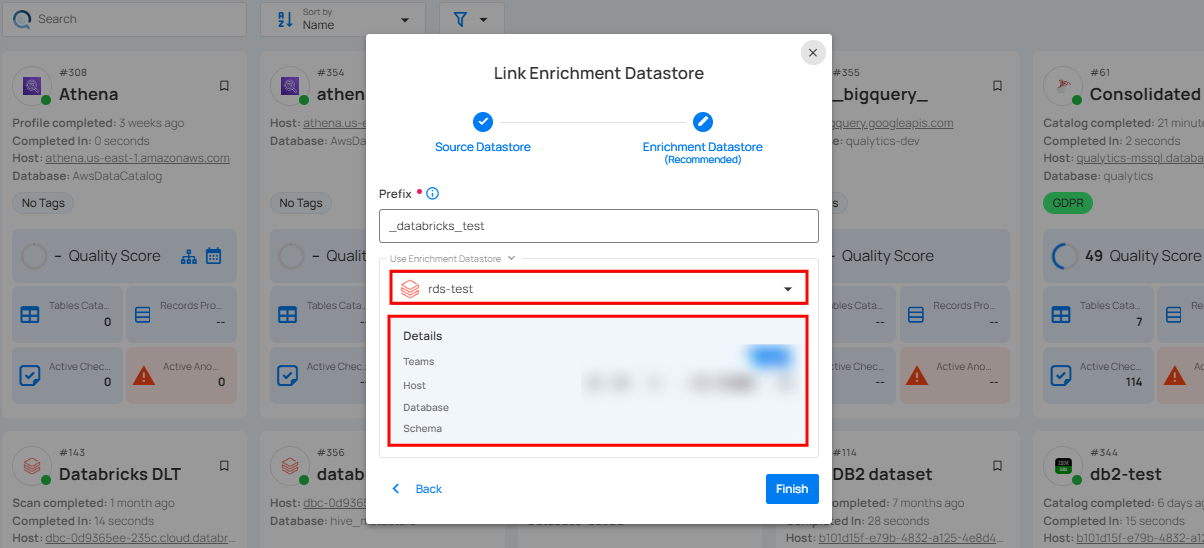

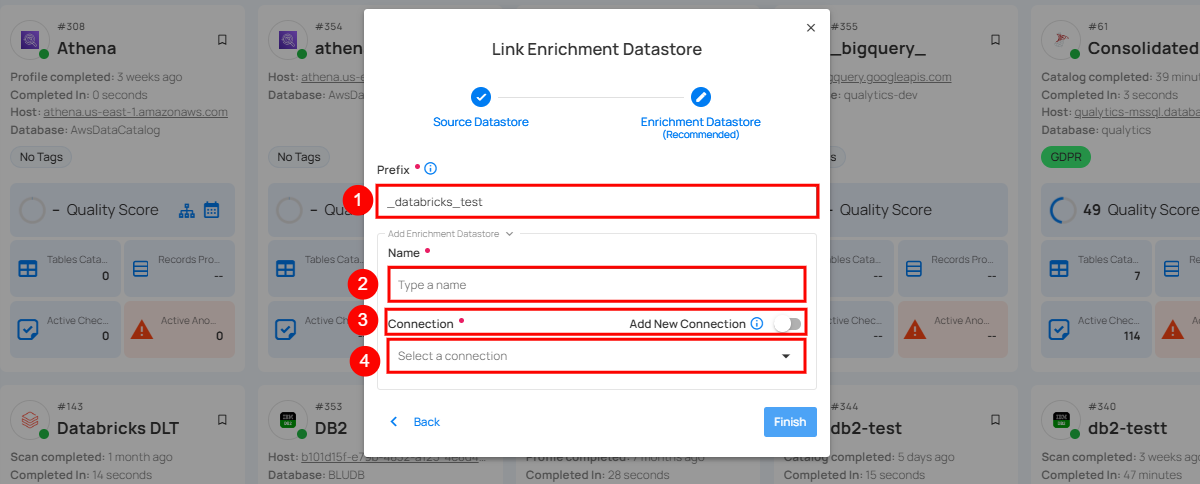

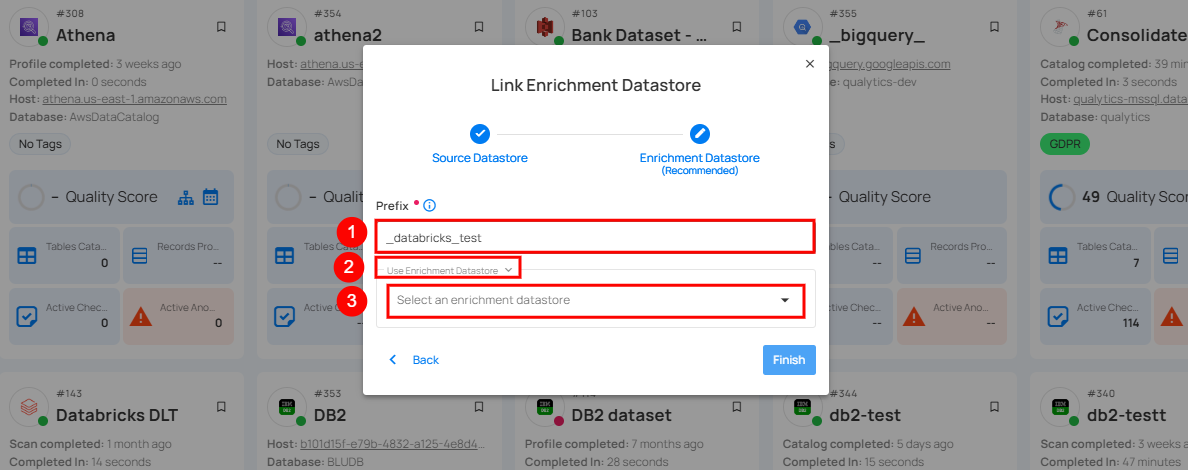

Step 2: A modal window - Link Enrichment Datastore will appear, providing you with the options to configure an enrichment datastore.

REF.	FIELDS	ACTIONS
1.	Prefix (Required)	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.

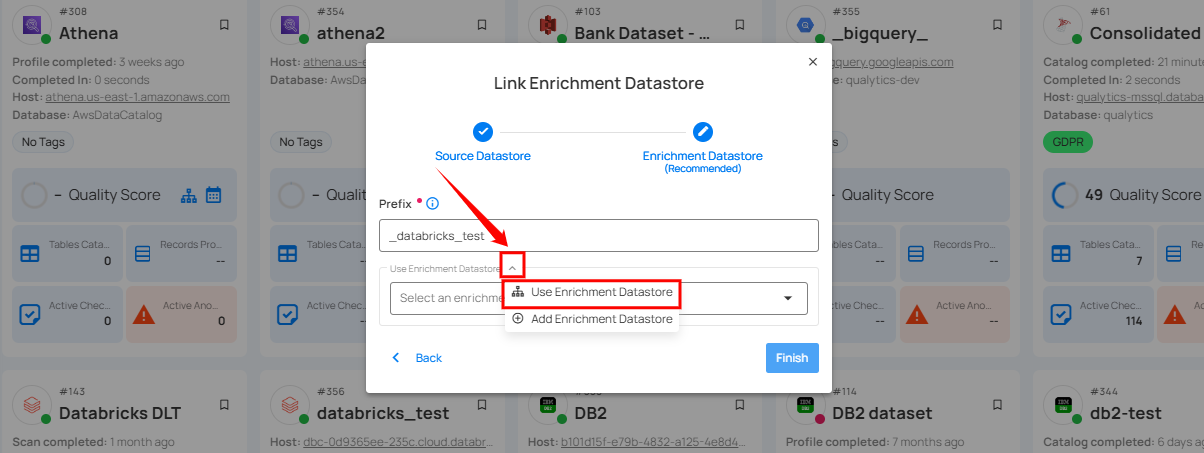

2.	Caret Down Button	Click the caret down button to select either Use Enrichment Datastore or Add Enrichment Datastore.
3.	Enrichment Datastore	Select an enrichment datastore from the dropdown list.

Option I: Create an Enrichment Datastore with a new Connection

If the toggle for Add New Connection is turned on, then this will prompt you to add and configure the enrichment datastore from scratch without using an existing enrichment datastore and its connection details.

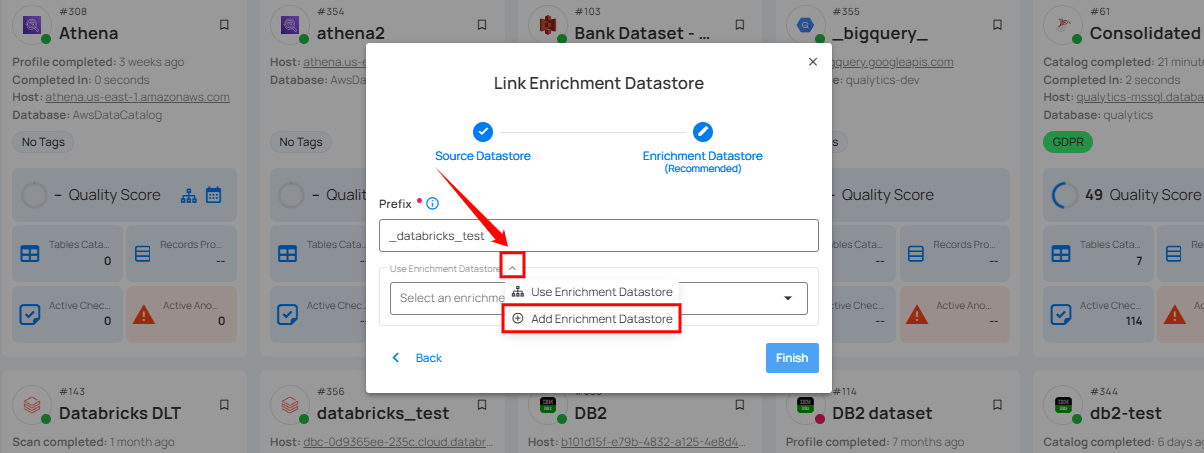

Step 1: Click on the caret button and select Add Enrichment Datastore.

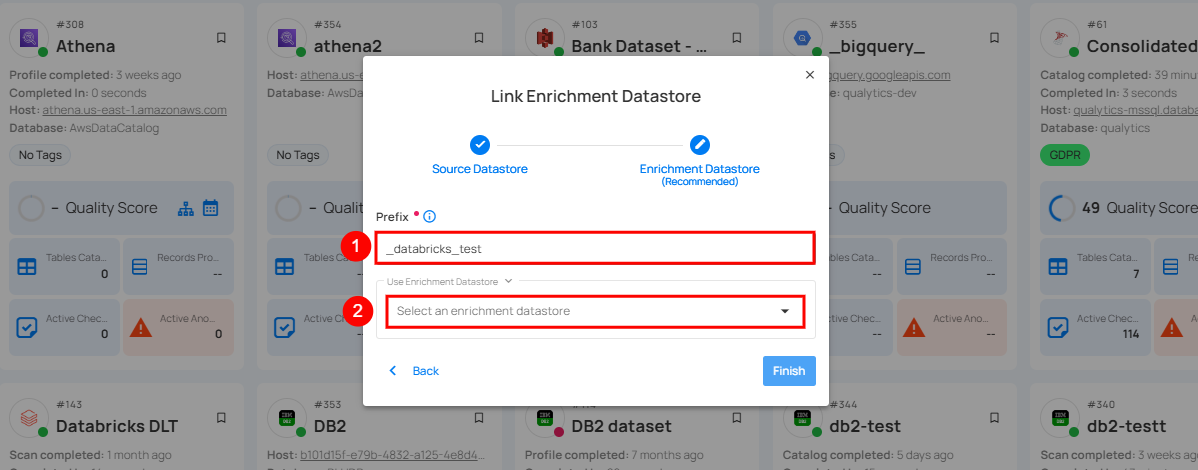

A modal window Link Enrichment Datastore will appear. Enter the following details to create an enrichment datastore with a new connection.

REF.	FIELDS	ACTIONS
1.	Prefix	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata from the source datastore to your enrichment datastore.
2.	Name	Give a name for the enrichment datastore.
3.	Toggle Button for Add New Connection	Toggle ON to create a new enrichment from scratch or toggle OFF to reuse credentials from an existing connection.
4.	Connector	Select a datastore connector from the dropdown list.

Step 2: Add connection details for your selected enrichment datastore connector.

Secrets Management: This is an optional connection property that allows you to securely store and manage credentials by integrating with HashiCorp Vault and other secret management systems. Toggle it ON to enable Vault integration for managing secrets.

Note

Once the HashiCorp Vault is set up, use the ${key} format in Connection form to reference a Vault secret.

REF.	FIELDS	ACTIONS
1.	Login URL	Enter the URL used to authenticate with HashiCorp Vault.
2.	Credentials Payload	Input a valid JSON containing credentials for Vault authentication.
3.	Token JSONPath	Specify the JSONPath to retrieve the client authentication token from the response (e.g., $.auth.client_token).
4.	Secret URL	Enter the URL where the secret is stored in Vault.
5.	Token Header Name	Set the header name used for the authentication token (e.g., X-Vault-Token).
6.	Data JSONPath	Specify the JSONPath to retrieve the secret data (e.g., $.data).

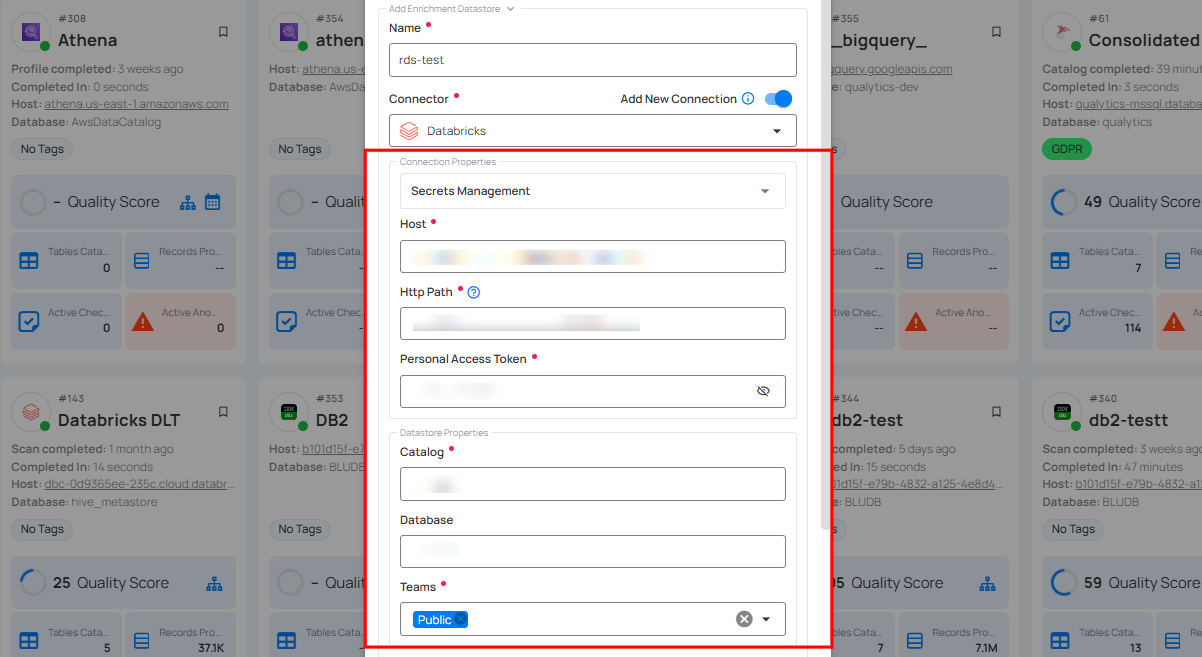

Step 3: The configuration form, requesting credential details after selecting enrichment datastore connector.

REF.	FIELD	ACTIONS
1.	Host (Required)	Get the hostname from your Databricks account and add it to this field.
2.	HTTP Path (Required)	Add the HTTP Path (web address) to fetch data from your Databricks account.
3.	Personal Access Token (Required)	Generate a Personal Access Token from your Databricks account and add it for authentication.
4.	Catalog (Required)	Add a Catalog to fetch data structures and metadata from Databricks.
5.	Database (Optional)	Specify the database name.
6.	Teams (Required)	Select one or more teams from the dropdown to associate with this enrichment datastore.

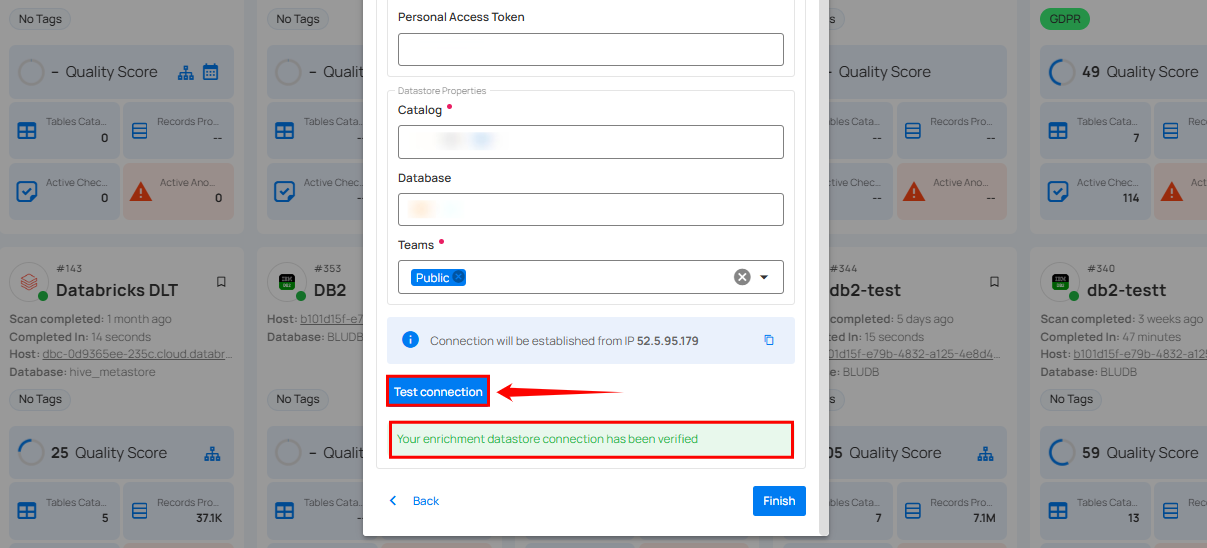

Step 4: Click on the Test Connection button to verify the selected enrichment datastore connection. If the connection is verified, a flash message will indicate that the connection with the enrichment datastore has been successfully verified.

Step 5: Click on the Finish button to complete the configuration process.

When the configuration process is finished, a success notification appears on the screen indicating that the datastore was added successfully.

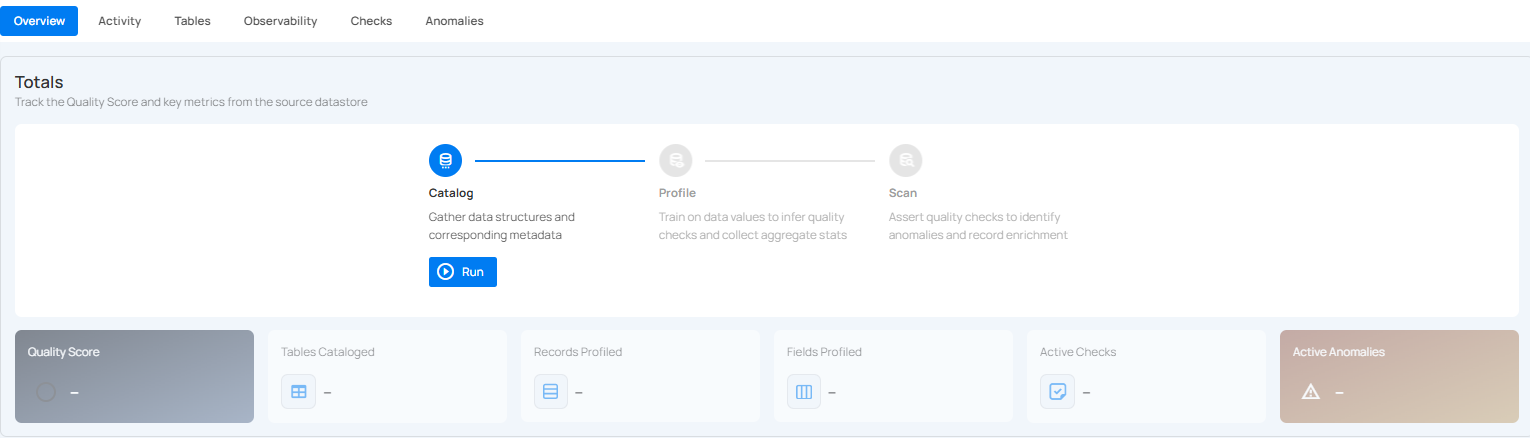

Step 6: Close the success dialog and the page will automatically redirect you to the Source Datastore Details page where you can perform data operations on your configured source datastore.

Option II: Use an Existing Connection

If the Use Enrichment Datastore option is selected from the caret button, you will be prompted to configure the datastore using existing connection details.

Step 1: Click on the caret button and select Use Enrichment Datastore.

Step 2: A modal window Link Enrichment Datastore will appear. Add a prefix name and select an existing enrichment datastore from the dropdown list.

REF.	FIELDS	ACTIONS
1.	Prefix (Required)	Add a prefix name to uniquely identify tables/files when Qualytics writes metadata.
2.	Enrichment Datastore	Select an enrichment datastore from the dropdown list.

Step 3: After selecting an existing enrichment datastore connection, you will view the following details related to the selected enrichment:

• Teams: The team associated with managing the enrichment datastore is based on the role of public or private. Example- Marked as Public means that this datastore is accessible to all the users.

• Host: This is the server address where the Databricks instance is hosted. It is the endpoint used to connect to the Databricks environment.

• Database: Refers to the specific database within the Databricks environment where the data is stored.

• Schema: The schema used in the enrichment datastore. The schema is a logical grouping of database objects (tables, views, etc.). Each schema belongs to a single database.

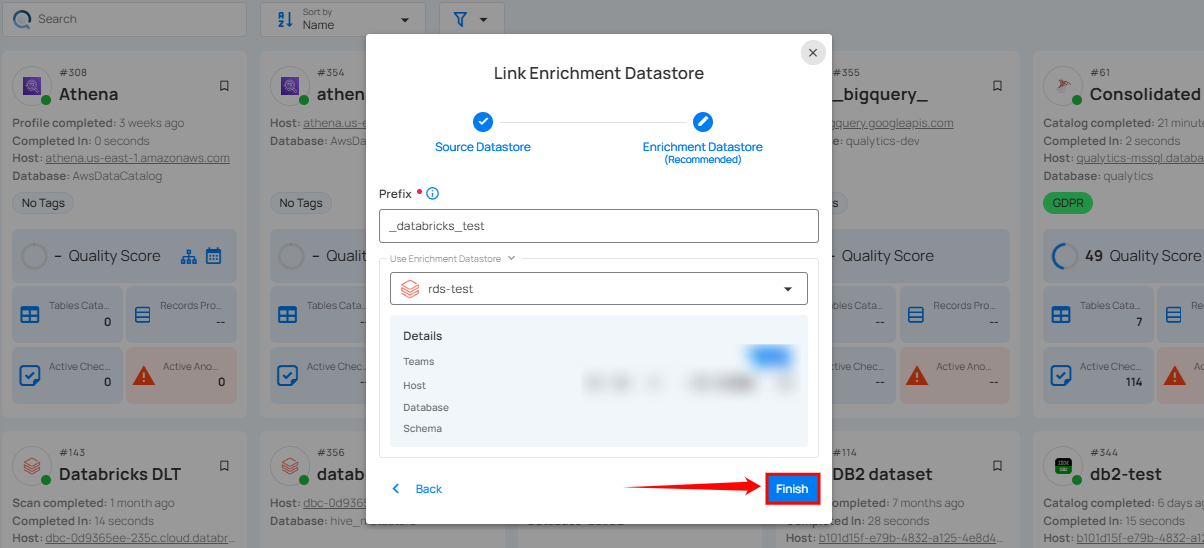

Step 4: Click on the Finish button to complete the configuration process for the existing enrichment datastore.

When the configuration process is finished, a success notification appears on the screen indicating that the datastore was added successfully.

Close the success message and you will be automatically redirected to the Source Datastore Details page where you can perform data operations on your configured source datastore.

API Payload Examples

This section provides detailed examples of API payloads to guide you through the process of creating and managing datastores using Qualytics API. Each example includes endpoint details, sample payloads, and instructions on how to replace placeholder values with actual data relevant to your setup.

Creating a Source Datastore

This section provides sample payloads for creating a Databricks datastore. Replace the placeholder values with actual data relevant to your setup.

Endpoint: /api/datastores (post)

Create a Source Datastore with a new ConnectionCreate a Source Datastore with an existing ConnectionCreate a Source Datastore using the CLI

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "databricks_database",
    "schema": "databricks_catalog",
    "enrich_only": false,
    "trigger_catalog": true,
    "connection": {
        "name": "your_connection_name",
        "type": "databricks",
        "host": "databricks_host",
        "password": "databricks_token",
        "parameters": {
            "path": "databricks_http_path"
        }
    }
}

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "databricks_database",
    "schema": "databricks_catalog",
    "enrich_only": false,
    "trigger_catalog": true,
    "connection_id": connection-id
}

# Step 1: Create a Connection
qualytics connections create \
    --type databricks \
    --name "your_connection_name" \
    --host ${DATABRICKS_HOST} \
    --password ${DATABRICKS_TOKEN} \
    --parameters '{"path": "databricks_http_path"}'

# Step 2: Create a Source Datastore
qualytics datastores create \
    --name "your_datastore_name" \
    --connection-name "your_connection_name" \
    --database hive_metastore \
    --schema default

Creating an Enrichment Datastore

This section provides sample payloads for creating an enrichment datastore. Replace the placeholder values with actual data relevant to your setup.

Endpoint: /api/datastores (post)

Create an Enrichment Datastore with a new ConnectionCreate an Enrichment Datastore with an Existing ConnectionCreate an Enrichment Datastore using the CLI

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "databricks_database",
    "schema": "databricks_enrichment_catalog",
    "enrich_only": true,
    "connection": {
        "name": "your_connection_name",
        "type": "databricks",
        "host": "databricks_host",
        "password": "databricks_token",
        "parameters": {
            "path": "databricks_http_path"
        }
    }
}

{
    "name": "your_datastore_name",
    "teams": ["Public"],
    "database": "databricks_database",
    "schema": "databricks_enrichment_catalog",
    "enrich_only": true,
    "connection_id": connection-id
}

# Step 1: Create a Connection
qualytics connections create \
    --type databricks \
    --name "your_connection_name" \
    --host ${DATABRICKS_HOST} \
    --password ${DATABRICKS_TOKEN} \
    --parameters '{"path": "databricks_http_path"}'

# Step 2: Create an Enrichment Datastore
qualytics datastores create \
    --name "your_datastore_name" \
    --connection-name "your_connection_name" \
    --database hive_metastore \
    --schema your_enrichment_schema \
    --enrichment-only

Link an Enrichment Datastore to a Source Datastore

Use the provided endpoint to link an enrichment datastore to a source datastore:

Endpoint Details: /api/datastores/{datastore-id}/enrichment/{enrichment-id} (patch)
