Data Diff

Recommended Check

Qualytics recommends using the dataDiff rule type instead of the isReplicaOf.

The isReplicaOf check is being deprecated and will no longer be maintained, while dataDiff provides the same functionality with enhanced performance and additional capabilities.

What is Data Diff?

Think of Data Diff as a "spot the difference" game for your business data.

Just like when you compare two pictures side-by-side to find what's changed, Data Diff compares two sets of information to make sure they match perfectly. It's like having a super-careful assistant who checks that when you copy something important, nothing gets lost, changed, or added by mistake.

Add Data Diff Check

Use the Data Diff Check to compare two tables, detect anomalies, and run a scan to identify mismatched or missing records for accurate data validation.

What Does Data Diff Do?

Data Diff helps you answer questions like:

• "Did all my customer orders copy correctly to the backup system?"
• "Is the sales report showing the same numbers as the original database?"
• "When we moved data from System A to System B, did everything transfer properly?"

In simple terms: It makes sure Data Set A is an exact match of Data Set B.

How Does Data Diff Work?

Let's break it down into simple steps:

Step 1: Choose What to Compare

You pick two sets of data:

• The Original (your main source of truth)
• The Copy (backup, report, or transferred data)

Step 2: Pick What Matters

You decide which information is important to check. For example:

• Customer names
• Order amounts
• Product IDs
• Dates

Step 3: The Comparison Happens

Data Diff automatically looks at both sets:

• Is everything from the original in the copy?
• Is there anything extra in the copy that shouldn't be there?
• Do all the values match exactly?

Step 4: Get Your Results

The Data Diff report shows:

• Pass – Target and reference datasets match; no action needed.
• Anomalies Found – Differences detected; view the report to see which rows or fields differ.

Why Should You Use Data Diff?

1. Catch Mistakes Before They Cause Problems

Imagine your finance team creates a quarterly report from last night's data backup. If some transactions didn't copy over, your report would be wrong. Data Diff catches this immediately.

2. Save Time and Reduce Stress

Instead of manually checking thousands of rows in spreadsheets, Data Diff does it automatically in seconds.

3. Build Trust in Your Data

When you present numbers to leadership or clients, you can confidently say, "This data has been verified."

4. Protect Your Business

Wrong data can lead to:

• Incorrect invoices
• Bad business decisions
• Compliance issues
• Customer complaints

Data Diff acts as your safety net.

Real-Life Example: Online Retail Store

Let me walk you through a complete, real-world scenario:

The Situation

Sunshine Electronics is an online store that sells gadgets. Every night at midnight, their system creates a backup copy of all the day's orders. This backup is used for:

• Creating daily sales reports
• Feeding data to their accounting system
• Analyzing customer trends

The Problem They Had

One morning, the Sales Manager noticed the daily report showed 1,247 orders, but the warehouse had shipped 1,250 packages. Where did 3 orders go?

After investigating, they discovered:

• The backup system had a glitch
• Some orders placed between 11:58 PM and midnight weren't copied over
• This had been happening for weeks
• They had been under-reporting revenue and had incorrect inventory counts

The Solution: Data Diff

They set up Data Diff to automatically compare their main orders database with the backup every morning.

Here's what they compared:

Original Orders Database:

Order ID	Customer Name	Product	Amount	Date
10001	Sarah Johnson	Laptop	$899	Jan 15, 2025
10002	Mike Chen	Headphones	$149	Jan 15, 2025
10003	Emily Davis	Tablet	$399	Jan 15, 2025
...	...	...	...	...
10248	David Lee	Phone Case	$19	Jan 15, 2025
10249	Anna Brown	USB Cable	$12	Jan 15, 2025
10250	Tom Wilson	Mouse	$29	Jan 15, 2025

Backup Orders Database:

Order ID	Customer Name	Product	Amount	Date
10001	Sarah Johnson	Laptop	$899	Jan 15, 2025
10002	Mike Chen	Headphones	$149	Jan 15, 2025
10003	Emily Davis	Tablet	$399	Jan 15, 2025
...	...	...	...	...
10248	Missing	Missing	Missing	Missing
10249	Missing	Missing	Missing	Missing
10250	Missing	Missing	Missing	Missing

What Data Diff Discovered

ALERT GENERATED:

DIFFERENCE DETECTED!

• Fields Affected: amount, order_id, product, order_date, customer_name
• Rule Applied: Data Diff
• Anomalous Records: 3

Technical Output (from Qualytics):

After running the Data Diff check, the system identified mismatched records between the Original Orders Database (Left) and the Backup Orders Database (Right).

Row Status	order_id	amount (Left → Right)	order_date (Left → Right)	customer_name (Left → Right)	product (Left → Right)
removed	10248	19.00 → missing	2025-01-15 → missing	David Lee → missing	Phone Case → missing
removed	10249	12.00 → missing	2025-01-15 → missing	Anna Brown → missing	USB Cable → missing
removed	10250	29.00 → missing	2025-01-15 → missing	Tom Wilson → missing	Mouse → missing

🔍 Summary

• These three records exist in the Original Orders Database but are missing from the Backup Orders Database.
• The “removed” status means Data Diff detected entries that weren’t found in the reference (right) table.
• This confirms that some orders failed to copy during the backup process.

The Outcome

Immediate Benefits:

• They fixed the backup system timing issue
• They recovered the missing orders data
• They corrected their sales reports

Long-term Benefits:

• Now they get an automatic email every morning confirming data matches
• If there's ever a mismatch, they know within hours instead of weeks
• They prevented thousands of dollars in unreported revenue
• Their inventory tracking became accurate again

Another Quick Example: Healthcare Clinic

City Health Clinic transfers patient appointment data from their scheduling system to their billing system every hour.

They use Data Diff to check:

• Patient Name
• Appointment Date
• Doctor Assigned
• Service Type
• Insurance Information

📋 Before Correction (Data Diff Caught This)

Field	Scheduling System	Billing System
Patient	Robert Martinez	Robert Martinez
Doctor	Dr. Smith	Dr. Smith
Insurance Plan	BlueCross Plan A	BlueCross Plan B

The Insurance Plan code changed during transfer. Without Data Diff, the clinic would have billed the wrong insurer.

✅ After Correction (Fixed Data)

Field	Scheduling System	Billing System
Patient	Robert Martinez	Robert Martinez
Doctor	Dr. Smith	Dr. Smith
Insurance Plan	BlueCross Plan A	BlueCross Plan A

Info

Data Diff caught the mismatch and the billing team corrected it before submitting the claim — avoiding claim rejection, payment delays, and extra work.

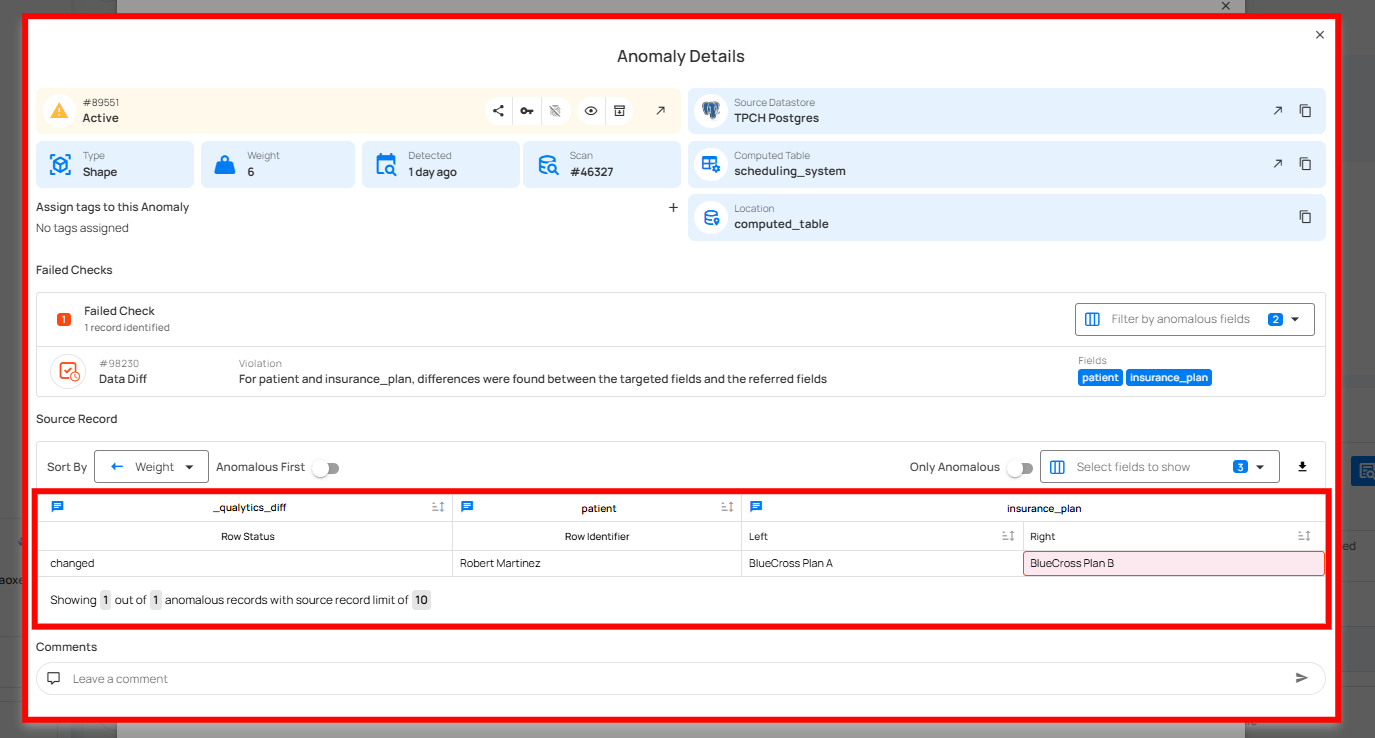

🧩 Anomalies Detected – Output Table

The Data Diff check found a mismatch between the scheduling_system and billing_system datasets for one record.
The issue was detected in the insurance_plan field for the patient Robert Martinez.

Row Status	Patient	Field	Left (Scheduling System)	Right (Billing System)
Changed	Robert Martinez	insurance_plan	BlueCross Plan A	BlueCross Plan B

Key Takeaways

Data Diff is like having a careful proofreader who checks that when you copy important information, nothing goes wrong.

It works automatically- you set it up once, and it keeps watching your data 24/7.

It catches problems early- before they affect your reports, decisions, or customers.

It gives you peace of mind- you can trust that your backup, reports, and transferred data are accurate.

When Should You Use Data Diff?

Use Data Diff whenever you:

• Copy data from one place to another
• Create backups of important information
• Generate reports from multiple sources
• Transfer data between different systems
• Move data to the cloud
• Export data to partners or vendors

Field Scope

Multi: The rule evaluates multiple specified fields.

Accepted Types

Type
Date
Timestamp
Integral
Fractional
String
Boolean

General Properties

DetailsFilter Guide

Name	Supported
Filter Allows the targeting of specific data based on conditions
Coverage Customization Allows adjusting the percentage of records that must meet the rule's conditions

The filter allows you to define a subset of data upon which the rule will operate.

It requires a valid Spark SQL expression that determines the criteria rows in the DataFrame should meet. This means the expression specifies which rows the DataFrame should include based on those criteria. Since it's applied directly to the Spark DataFrame, traditional SQL constructs like WHERE clauses are not supported.

Examples

Direct Conditions

Simply specify the condition you want to be met.

Correct usage" collapsible="true

O_TOTALPRICE > 1000

C_MKTSEGMENT = 'BUILDING'

Incorrect usage" collapsible="true

WHERE O_TOTALPRICE > 1000

WHERE C_MKTSEGMENT = 'BUILDING'

Combining Conditions

Combine multiple conditions using logical operators like AND and OR.

Correct usage" collapsible="true

O_ORDERPRIORITY = '1-URGENT' AND O_ORDERSTATUS = 'O'

(L_SHIPDATE = '1998-09-02' OR L_RECEIPTDATE = '1998-09-01') AND L_RETURNFLAG = 'R'

Incorrect usage" collapsible="true

WHERE O_ORDERPRIORITY = '1-URGENT' AND O_ORDERSTATUS = 'O'

O_TOTALPRICE > 1000, O_ORDERSTATUS = 'O'

Utilizing Functions

Leverage Spark SQL functions to refine and enhance your conditions.

Correct usage" collapsible="true

RIGHT(
    O_ORDERPRIORITY,
    LENGTH(O_ORDERPRIORITY) - INSTR('-', O_ORDERPRIORITY)
) = 'URGENT'

LEVENSHTEIN(C_NAME, 'Supplier#000000001') < 7

Incorrect usage" collapsible="true

RIGHT(
    O_ORDERPRIORITY,
    LENGTH(O_ORDERPRIORITY) - CHARINDEX('-', O_ORDERPRIORITY)
) = 'URGENT'

EDITDISTANCE(C_NAME, 'Supplier#000000001') < 7

Using scan-time variables

To refer to the current dataframe being analyzed, use the reserved dynamic variable {{ _qualytics_self }}.

Correct usage" collapsible="true

O_ORDERSTATUS IN (
    SELECT DISTINCT O_ORDERSTATUS
    FROM {{ _qualytics_self }}
    WHERE O_TOTALPRICE > 1000
)

Incorrect usage" collapsible="true

O_ORDERSTATUS IN (
    SELECT DISTINCT O_ORDERSTATUS
    FROM ORDERS
    WHERE O_TOTALPRICE > 1000
)

While subqueries can be useful, their application within filters in our context has limitations. For example, directly referencing other containers or the broader target container in such subqueries is not supported. Attempting to do so will result in an error.

Important Note on {{ _qualytics_self }}

The {{ _qualytics_self }} keyword refers to the dataframe that's currently under examination. In the context of a full scan, this variable represents the entire target container. However, during incremental scans, it only reflects a subset of the target container, capturing just the incremental data. It's crucial to recognize that in such scenarios, using {{ _qualytics_self }} may not encompass all entries from the target container.

Specific Properties

Specify the datastore and table/file where the reference data for the targeted fields is located for comparison.

Name	Description
Row Identifiers	The list of fields defining the compound key to identify rows in the comparison analysis.
Datastore	The source datastore where the reference data for the targeted field(s) is located.
Table/file	The table, view or file in the source datastore that should serve as the reference for comparison.
Comparators	Specifies how variations are handled, allowing for slight deviations within a defined margin of error.

Info

The DataDiff rule supports editing of Row Identifiers and Passthrough Fields, allowing for more tailored configuration.

Details

Row Identifiers

This optional input allows row comparison analysis by defining a list of fields as row identifiers, it enables a more detailed comparison between tables/files, where each row compound key is used to identify its presence or absence in the reference table/file compared to the target table/file. Qualytics can inform if the row exists or not and distinguish which field values differ in each row present in the reference table/file, helping to determine if it is a data diff.

Info

Anomalies produced by a DataDiff quality check making use of Row Identifiers have their source records presented in a different visualization.

See more at: Comparison Source Records

Comparators

The Comparators allow you to set margins of error, accommodating slight variations in data validation. This flexibility is crucial for maintaining data integrity, especially when working with different data types such as numeric values, durations, and strings. Here's an overview of how each type of comparator can be beneficial for you:

Numeric

Numeric comparators enable you to compare numbers with a specified margin, which can be a fixed absolute value or a percentage. This allows for minor numerical differences that are often acceptable in real-world data.

Comparison Type

• Absolute Value: Uses a fixed threshold for determining equality. It's ideal when you need consistent precision across measurements.
• Percentage Value: Uses a percentage of the original value as the threshold for equality comparisons. It's suitable for floating point numbers where precision varies.

Threshold

The threshold is the value you set to define the margin of error:

• When using Absolute Value, the threshold represents the maximum allowable difference between two values for them to be considered equal.
• For Percentage Value, the threshold is the percentage that describes how much a value can deviate from a reference value and still be considered equal.

Illustration using Absolute Value

In this example, it compares Value A and Value B according to the defined Threshold of 50.

Value A	Value B	Difference	Are equal?
100	150	50	True
100	90	10	True
100	155	55	False
100	49	51	False

Illustration using Percentage Value

In this example, it compares Value A and Value B according to the defined Threshold of 10%.

Percentage Change Formula: [ (Value B - Value A) / Value A ] * 100

Value A	Value B	Percentage Change	Are equal?
120	132	10%	True
150	135	10%	True
200	180	10%	True
160	150	6.25%	True
180	200	11.11%	False

Duration

Duration comparators support time-based comparisons, allowing for flexibility in how duration differences are managed. This flexibility is crucial for datasets where time measurements are essential but can vary slightly.

Unit

The unit of time you select determines how granular the comparison is:

• Millis: Measures time in milliseconds, ideal for high-precision needs.
• Seconds: Suitable for most general purposes where precision is important but doesn't need to be to the millisecond.
• Days: Best for longer durations.

Value

Value sets the maximum acceptable difference in time to consider two values as equal. It serves to define the margin of error, accommodating small discrepancies that naturally occur over time.

Illustration using Duration Comparator

Unit	Value A	Value B	Difference	Threshold	Are equal?
Millis	500 ms	520 ms	20 ms	25 ms	True
Seconds	30 sec	31 sec	1 sec	2 sec	True
Days	5 days	7 days	2 days	1 day	False
Millis	1000 ms	1040 ms	40 ms	25 ms	False
Seconds	45 sec	48 sec	3 sec	2 sec	False

String

String comparators facilitate comparisons of textual data by allowing variations in spacing. This capability is essential for ensuring data consistency, particularly where minor text inconsistencies may occur.

Ignore Whitespace

When enabled, this setting allows the comparator to ignore differences in whitespace. This means sequences of whitespace are collapsed into a single space, and any leading or trailing spaces are removed. This can be particularly useful in environments where data entry may vary in formatting but where those differences are not relevant to the data's integrity.

Illustration

In this example, it compares Value A and Value B according to the defined string comparison to ignore whitespace as True.

Value A	Value B	Are equal?	Has whitespace?
Leonidas	Leonidas	True	No
Beth	Beth	True	Yes
Ana	Anna	False	Yes
Joe	Joel	False	No

Anomaly Types

Type	Supported
Record Flag inconsistencies at the row level
Shape Flag inconsistencies in the overall patterns and distributions of a field

Example

Scenario: Consider that the fields N_NATIONKEY and N_NATIONNAME in the NATION table need to be compared with a backup database for data validation purposes. The data engineering team wants to ensure that both fields in the backup accurately match the original.

Objective: Ensure that N_NATIONKEY and N_NATIONNAME from the NATION table match the data in the NATION_BACKUP table.

Sample Data from NATION

N_NATIONKEY	N_NATIONNAME
1	Australia
2	United States
3	Uruguay

Reference Sample Data from NATION_BACKUP

N_NATIONKEY	N_NATIONNAME
1	Australia
2	USA
3	Uruguay

Payload example

{
    "description": "Ensure that N_NATIONKEY and N_NATIONNAME from the NATION table match the data in the NATION_BACKUP table",
    "coverage": 1,
    "properties": {
        "ref_container_id": {ref_container_id},
        "ref_datastore_id": {ref_datastore_id}
    },
    "tags": [],
    "fields": ["N_NATIONKEY", "N_NATIONNAME"],
    "additional_metadata": {"key 1": "value 1", "key 2": "value 2"},
    "rule": "dataDiff",
    "container_id": {container_id},
    "template_id": {template_id},
    "filter": "1=1"
}

Anomaly Explanation

The datasets representing the fields N_NATIONKEY and N_NATIONNAME in the original and the reference data are not completely identical, indicating a possible discrepancy in the data or an unintended change.

FlowchartSQL

graph TD
A[Start] --> B[Retrieve Original Data]
B --> C[Retrieve Reference Data]
C --> D{Do datasets match for both fields?}
D -->|Yes| E[End]
D -->|No| F[Mark as Anomalous]
F --> E

-- An illustrative SQL query comparing original to reference data for both fields.
select
    orig.n_nationkey as original_key,
    orig.n_nationname as original_name,
    ref.n_nationkey as reference_key,
    ref.n_nationname as reference_name
from nation as orig
left join nation_backup as ref on orig.n_nationkey = ref.n_nationkey
where
    orig.n_nationname <> ref.n_nationname
or
    orig.n_nationkey <> ref.n_nationkey

Potential Violation Messages

Shape Anomaly

There is 1 record that differs between NATION_BACKUP (3 records) and NATION (3 records) in <datastore_name>
