Synapse

Steps to setup Synapse

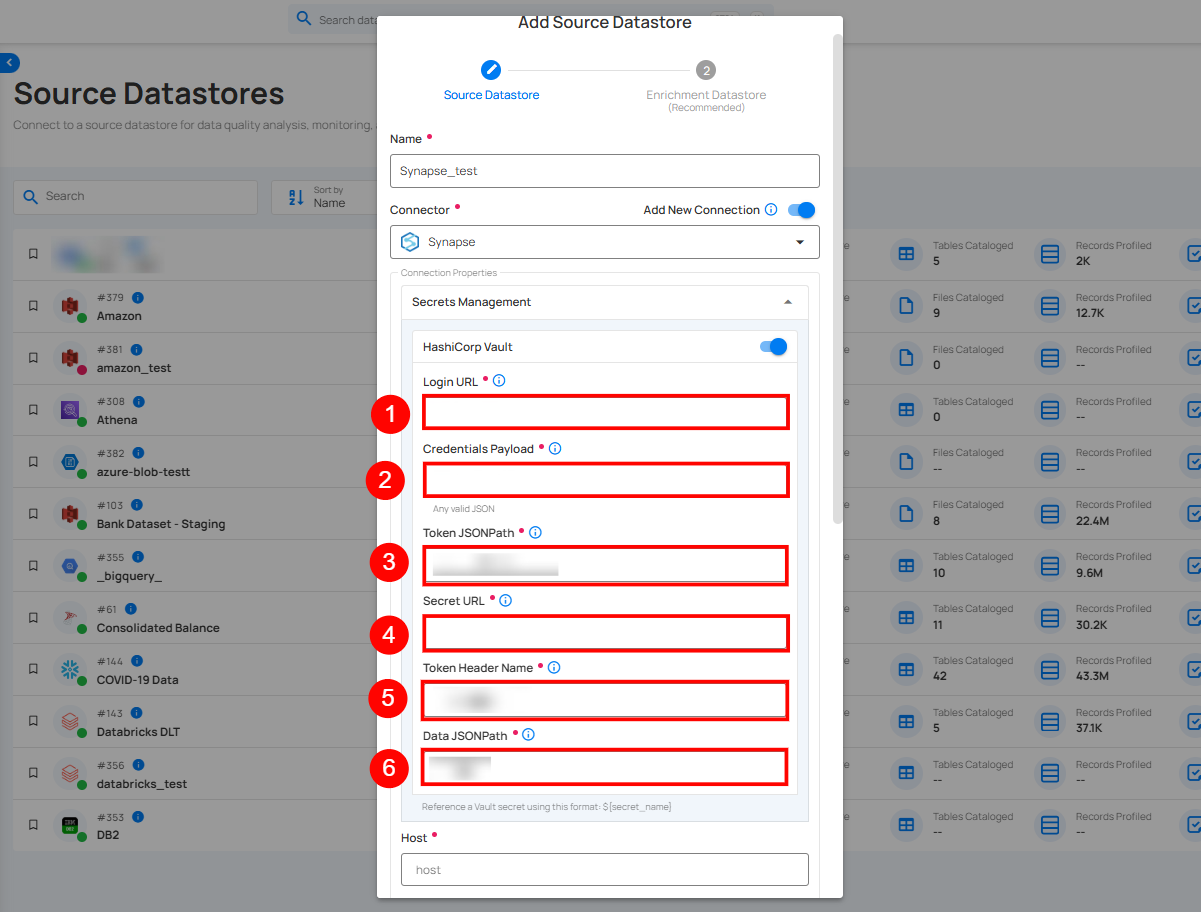

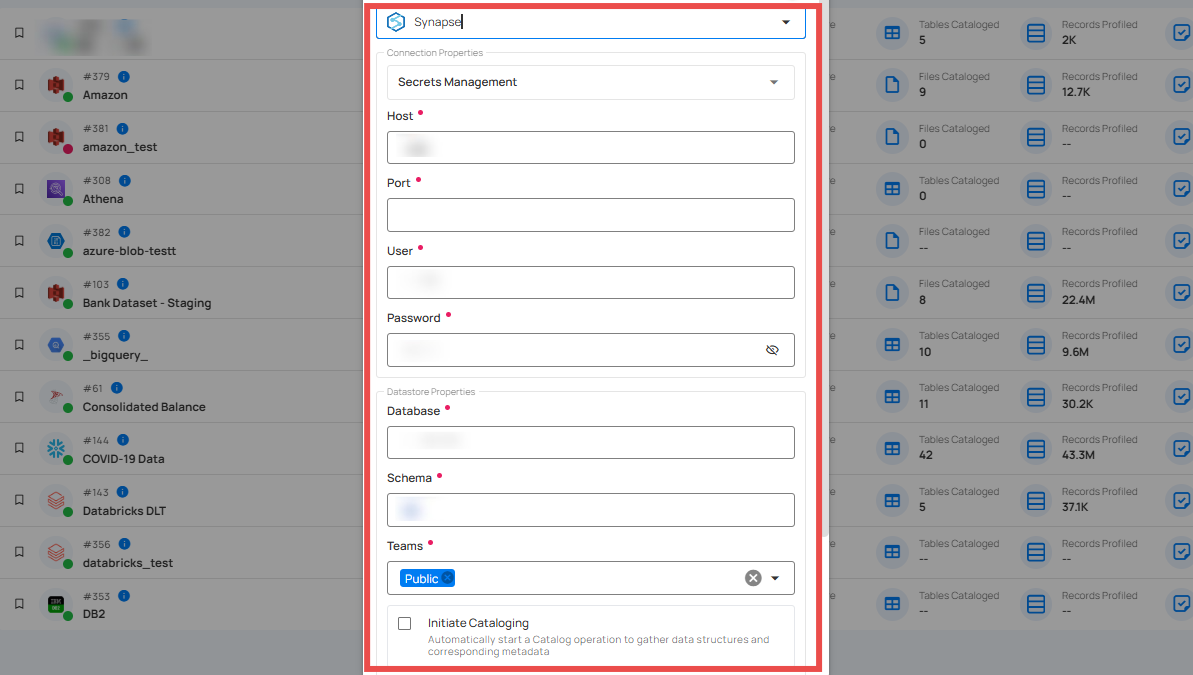

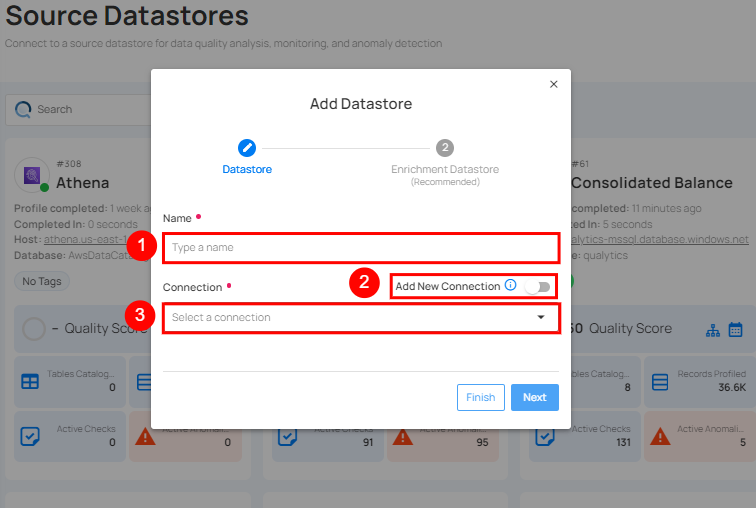

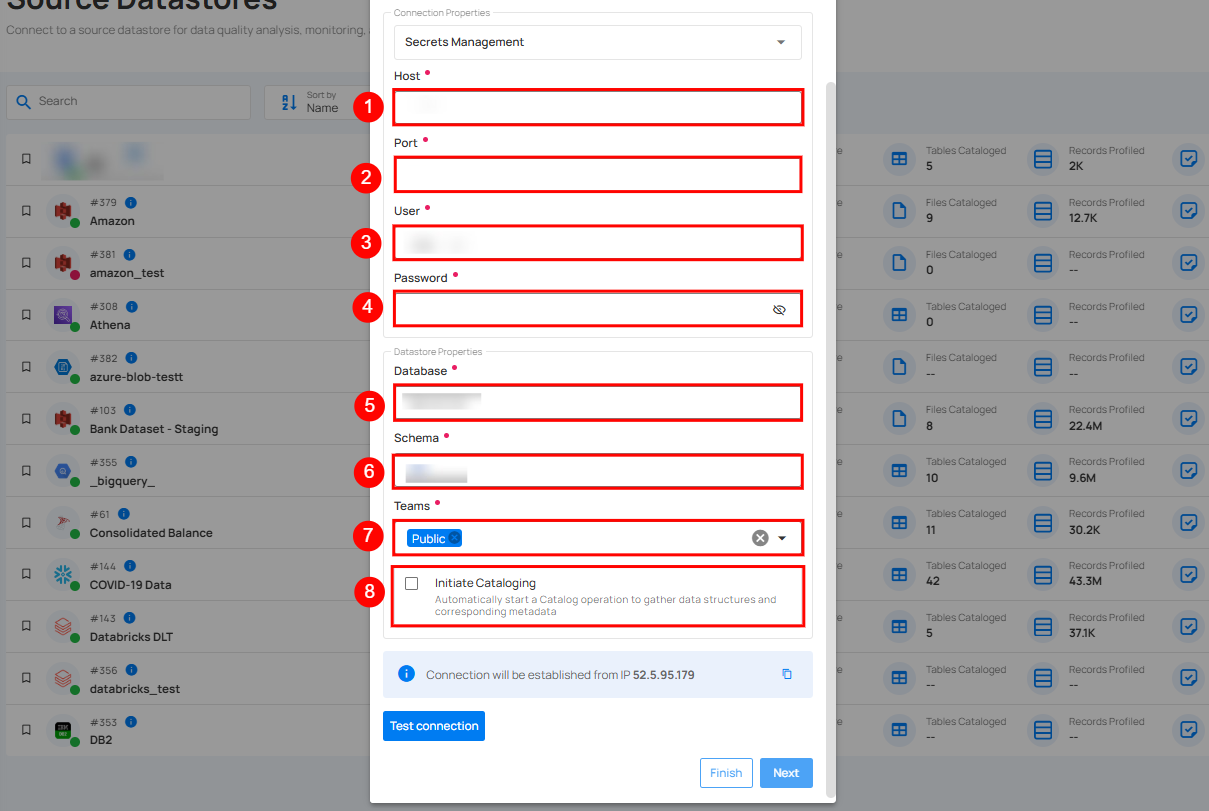

Fill the form with the credentials of your data source.

Screenshot Screenshot

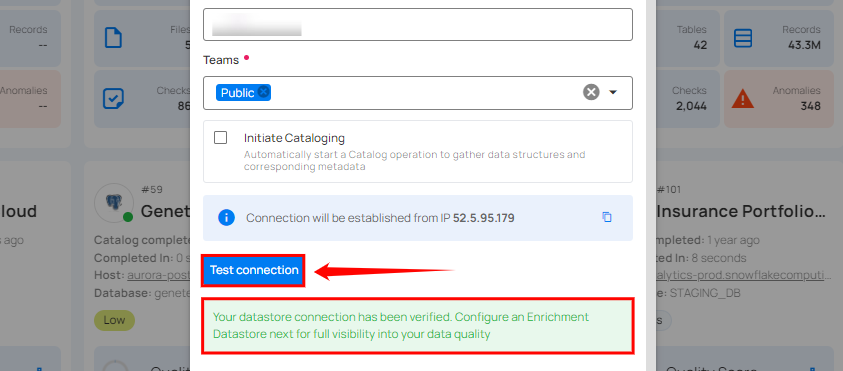

Once the form is completed, it's necessary to test the connection to verify if Qualytics is able to connect to your source of data. A successful message will be shown:

Screenshot Screenshot

Warning

By clicking on the Finish button, it will create the Datastore and skipping the configuration of an Enrichment Datastore.

  • To configure an Enrichment Datastore in another moment, please refer to this section

Note

It is important to associate an Enrichment Datastore with your new Datastore

  • The Enrichment Datastore will allow Qualytics to record enrichment data, copies of the source anomalous data and additional metadata for your Datastore

Configuring an Enrichment Datastore

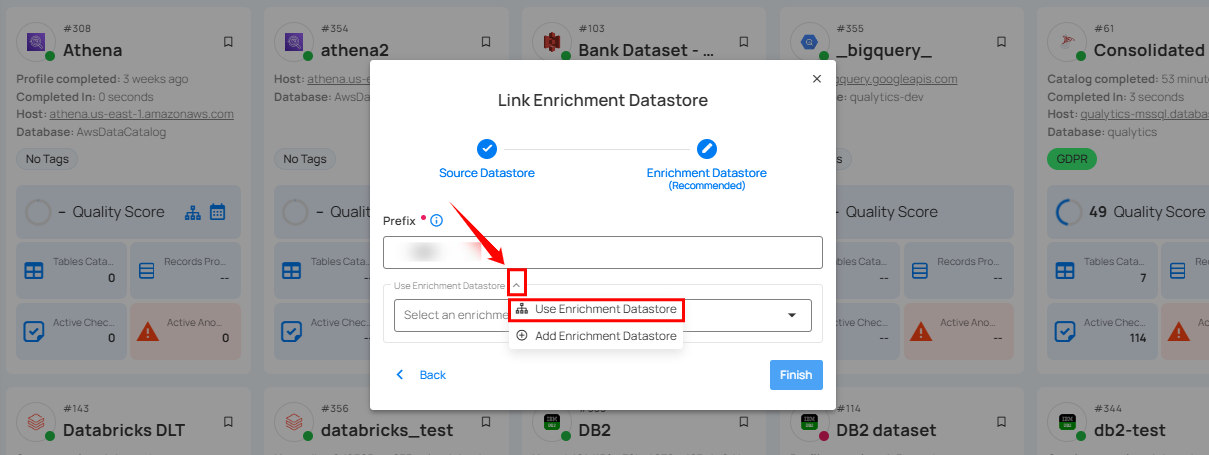

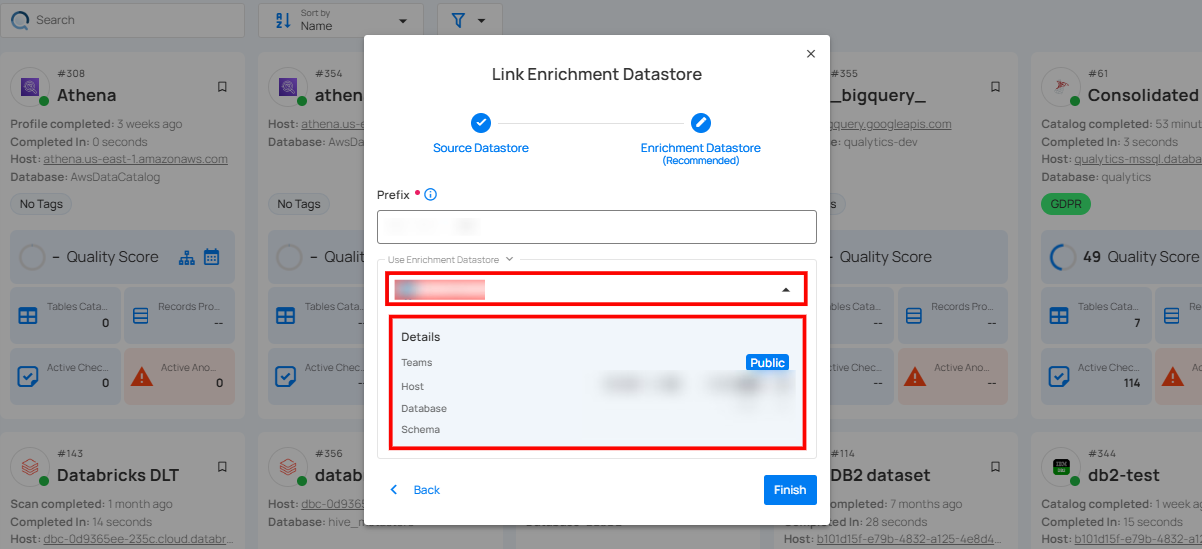

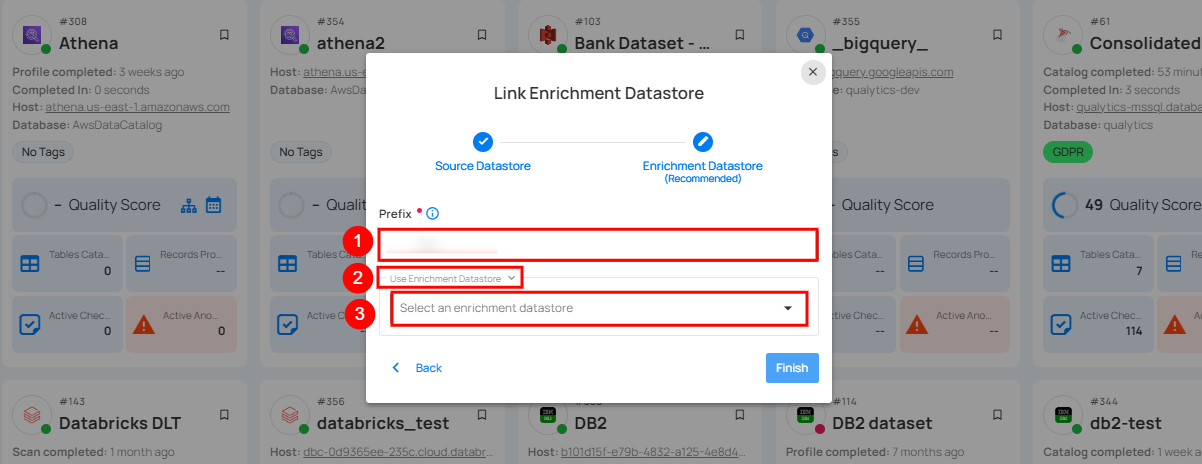

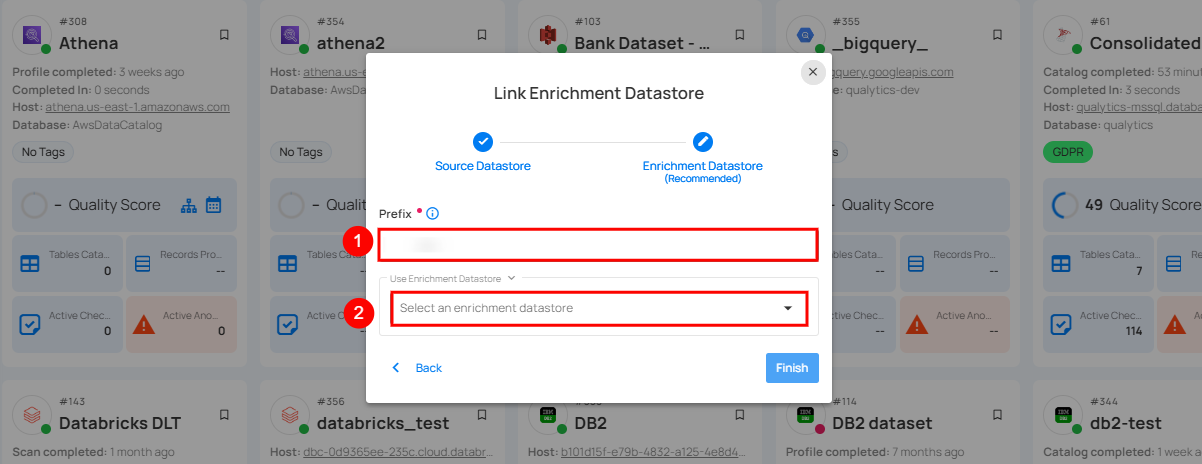

  • If you have an Enrichment Datastore already setup, you can link it by enable to use an existing Enrichment Datastore and select from the list

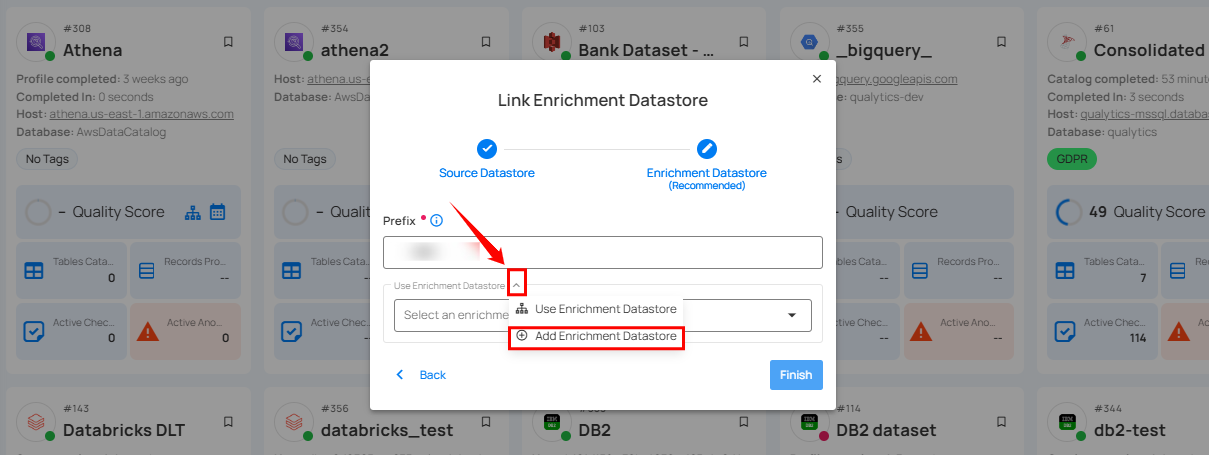

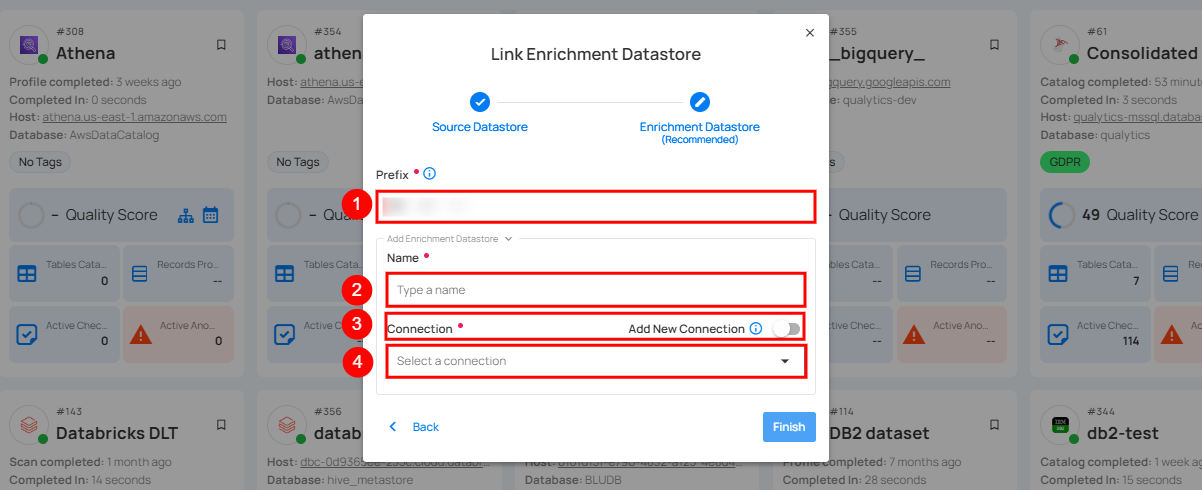

  • If you don't have an Enrichment Datastore, you can create one at the same page:

    Screenshot Screenshot

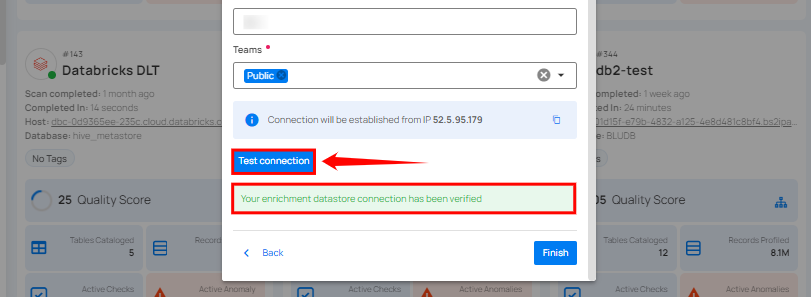

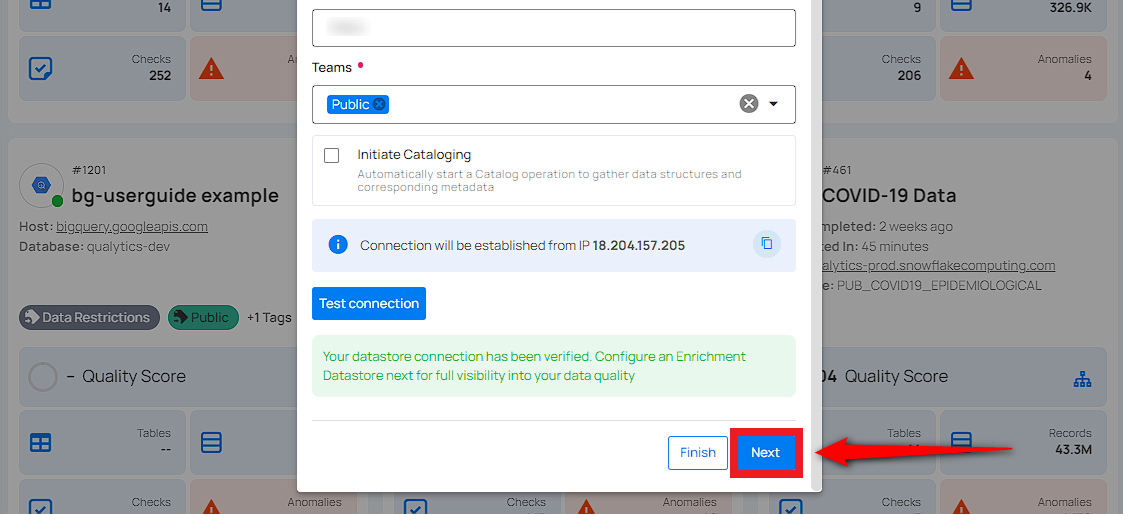

Once the form is completed, it's necessary to test the connection. A successful message will be shown:

Screenshot Screenshot

Warning

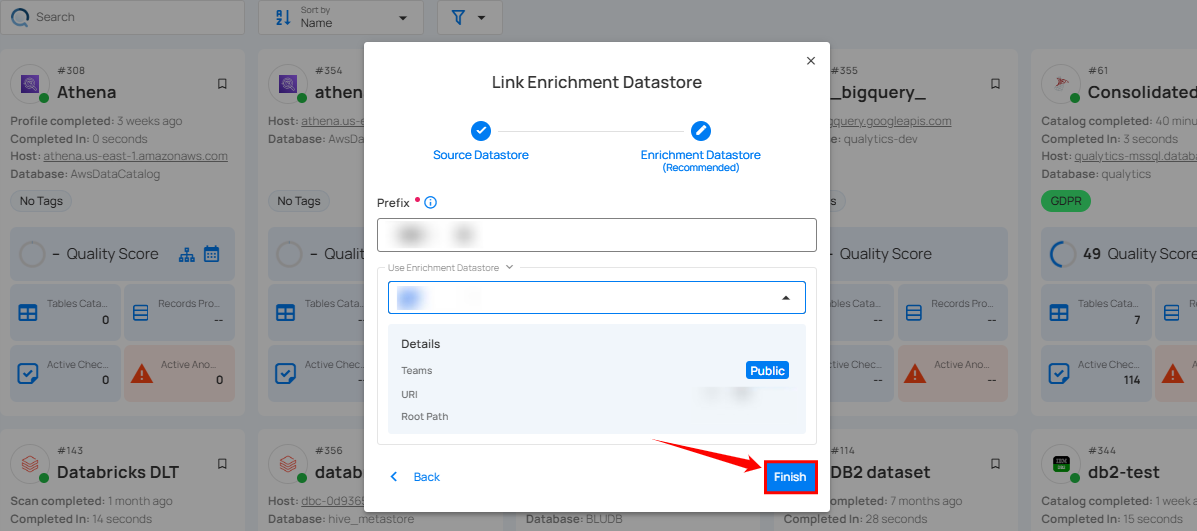

By clicking on the Finish button, it will create the Datastore and link or create the Enrichment Datastore


Fields

Name required

  • The datastore name to be created in Qualytics App

Host required

  • Host url to be connected.
  • Hostname in the form
        https://yourserver.sql.azuresynapse.net


Port required

  • Port number to access the Synapse database.
  • The default port is 1433

Database required

  • The database name to be connected or which the account user has access to.

Schema required

  • The schema name to be connected or which the account user has access to.

User required

  • The user that has access to the Synapse application.

Password required

  • The password that has access to the Synapse application.

Information on how to connect with Synapse


API Payload Examples

Creating a Datastore

This section provides a sample payload for creating a datastore. Replace the placeholder values with actual data relevant to your setup.

Endpoint (Post)

/api/datastores (post)

    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "synapse_database",
        "schema": "synapse_schema",
        "enrich_only": false,
        "trigger_catalog": true,
        "connection": {
            "name": "your_connection_name",
            "type": "synapse",
            "host": "synapse_host",
            "port": "synapse_port",
            "username": "synapse_username",
            "password": "synapse_password"
        }
    }
    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "synapse_database",
        "schema": "synapse_schema",
        "enrich_only": false,
        "trigger_catalog": true,
        "connection_id": connection-id
    }

Creating an Enrichment Datastore

Endpoint (Post)

/api/datastores (post)

This section provides a sample payload for creating an enrichment datastore. Replace the placeholder values with actual data relevant to your setup.

    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "synapse_database",
        "schema": "synapse_schema",
        "enrich_only": true,
        "connection": {
            "name": "your_connection_name",
            "type": "synapse",
            "host": "synapse_host",
            "port": "synapse_port",
            "username": "synapse_username",
            "password": "synapse_password"
        }
    }
    {
        "name": "your_datastore_name",
        "teams": ["Public"],
        "database": "synapse_database",
        "schema": "synapse_schema",
        "enrich_only": true,
        "connection_id": connection-id
    }

Linking Datastore to an Enrichment Datastore through API

Endpoint (Patch)

/api/datastores/{datastore-id}/enrichment/{enrichment-id} (patch)
