Any Not Null

Definition

Asserts that at least one of the selected fields must hold a value.

Field Scope

Multiple: The rule evaluates multiple specified fields.

Accepted Types

Type
Date
Timestamp
Integral
Fractional
String
Boolean

General Properties

Name Supported
Filter
Allows the targeting of specific data based on conditions
Coverage Customization
Allows adjusting the percentage of records that must meet the rule's conditions

The filter allows you to define a subset of data upon which the rule will operate.

It requires a valid Spark SQL expression that determines the criteria rows in the DataFrame should meet. This means the expression specifies which rows the DataFrame should include based on those criteria. Since it's applied directly to the Spark DataFrame, traditional SQL constructs like WHERE clauses are not supported.

Examples

Direct Conditions

Simply specify the condition you want to be met.

Correct usage
O_TOTALPRICE > 1000
C_MKTSEGMENT = 'BUILDING'
Incorrect usage
WHERE O_TOTALPRICE > 1000
WHERE C_MKTSEGMENT = 'BUILDING'

Combining Conditions

Combine multiple conditions using logical operators like AND and OR.

Correct usage
O_ORDERPRIORITY = '1-URGENT' AND O_ORDERSTATUS = 'O'
(L_SHIPDATE = '1998-09-02' OR L_RECEIPTDATE = '1998-09-01') AND L_RETURNFLAG = 'R'
Incorrect usage
WHERE O_ORDERPRIORITY = '1-URGENT' AND O_ORDERSTATUS = 'O'
O_TOTALPRICE > 1000, O_ORDERSTATUS = 'O'

Utilizing Functions

Leverage Spark SQL functions to refine and enhance your conditions.

Correct usage
RIGHT(
    O_ORDERPRIORITY,
    LENGTH(O_ORDERPRIORITY) - INSTR('-', O_ORDERPRIORITY)
) = 'URGENT'
LEVENSHTEIN(C_NAME, 'Supplier#000000001') < 7
Incorrect usage
RIGHT(
    O_ORDERPRIORITY,
    LENGTH(O_ORDERPRIORITY) - CHARINDEX('-', O_ORDERPRIORITY)
) = 'URGENT'
EDITDISTANCE(C_NAME, 'Supplier#000000001') < 7

Using scan-time variables

To refer to the current dataframe being analyzed, use the reserved dynamic variable {{ _qualytics_self }}.

Correct usage
O_ORDERSTATUS IN (
    SELECT DISTINCT O_ORDERSTATUS
    FROM {{ _qualytics_self }}
    WHERE O_TOTALPRICE > 1000
)
Incorrect usage
O_ORDERSTATUS IN (
    SELECT DISTINCT O_ORDERSTATUS
    FROM ORDERS
    WHERE O_TOTALPRICE > 1000
)

While subqueries can be useful, their application within filters in our context has limitations. For example, directly referencing other containers or the broader target container in such subqueries is not supported. Attempting to do so will result in an error.

Important Note on {{ _qualytics_self }}

The {{ _qualytics_self }} keyword refers to the dataframe that's currently under examination. In the context of a full scan, this variable represents the entire target container. However, during incremental scans, it only reflects a subset of the target container, capturing just the incremental data. It's crucial to recognize that in such scenarios, using {{ _qualytics_self }} may not encompass all entries from the target container.

Anomaly Types

Type Supported
Record
Flag inconsistencies at the row level
Shape
Flag inconsistencies in the overall patterns and distributions of a field

Example

Objective: Ensure that for every record in the ORDERS table, at least one of the fields (O_COMMENT, O_ORDERSTATUS) isn't null.

Sample Data

O_ORDERKEY O_COMMENT O_ORDERSTATUS
1 NULL NULL
2 Good product NULL
3 NULL Shipped
{
    "description": "Ensure that for every record in the ORDERS table, at least one of the fields (O_COMMENT, O_ORDERSTATUS) isn't null",
    "coverage": 1,
    "properties": {},
    "tags": [],
    "fields": ["O_ORDERSTATUS","O_COMMENT"],
    "additional_metadata": {"key 1": "value 1", "key 2": "value 2"},
    "rule": "anyNotNull",
    "container_id": {container_id},
    "template_id": {template_id},
    "filter": "_PARITY = 'odd'"
}

Anomaly Explanation

In the sample data above, the entry with O_ORDERKEY 1 does not satisfy the rule because both O_COMMENT and O_ORDERSTATUS does not hold a value.

graph TD
A[Start] --> B[Retrieve O_COMMENT and O_ORDERSTATUS]
B --> C{Is Either Field Not Null?}
C -->|Yes| D[Move to Next Record/End]
C -->|No| E[Mark as Anomalous]
E --> D
-- An illustrative SQL query demonstrating the rule applied to example dataset(s).
select
    o_orderkey
    , o_comment
    , o_orderstatus
from orders
where
    o_comment is null
    and o_orderstatus is null

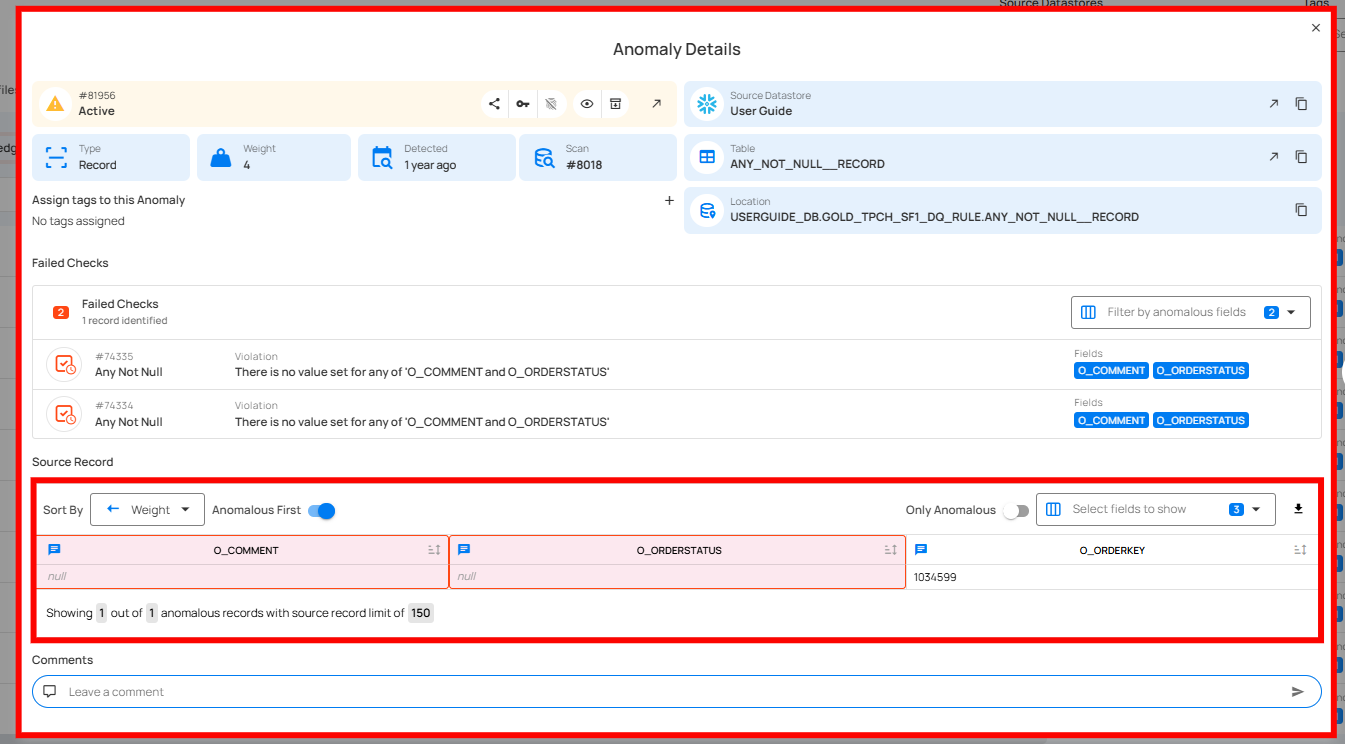

Potential Violation Messages

Record Anomaly

There is no value set for any of O_COMMENT, O_ORDERSTATUS

Shape Anomaly

In O_COMMENT, O_ORDERSTATUS, 33.333% of 3 filtered records (1) have no value set for any of O_COMMENT, O_ORDERSTATUS


Last update: July 5, 2024
